3RD Generation Heavy duty series for Multi-copter Xmotor Heavy Duty Series

Product Description:

Heavy Duty 3 new features

* HD2 has played an important role in agriculture, defense, electric power and logistics.

* all HD series upgraded to heavy load safety device of main shaft (Patent pending)

* all HD series using 0.2 mm silicon steel Laminationsfrom kawasaki

* adopt the patents of magnetic circuit optimization and stator fixed plate devices

* main shaft of 90HD upgraded to 12 mm ,Life time of motor is up to 1000 hours with ball bearings of EZO Hokkaido .

* CNC parts made by USA HARDINGE preciseMachine.

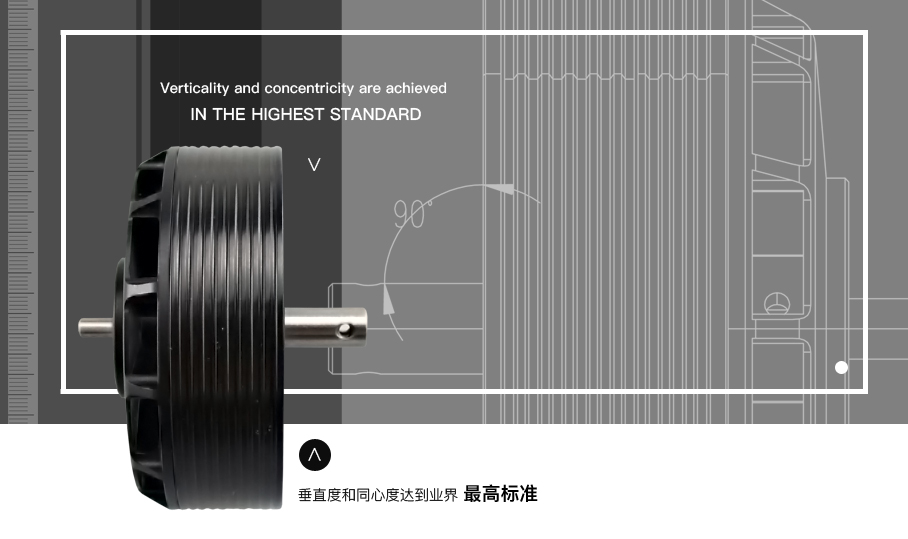

* verticality and concentricity are achieved in the highest standard.

* machine winding, the KV are kept in consistent

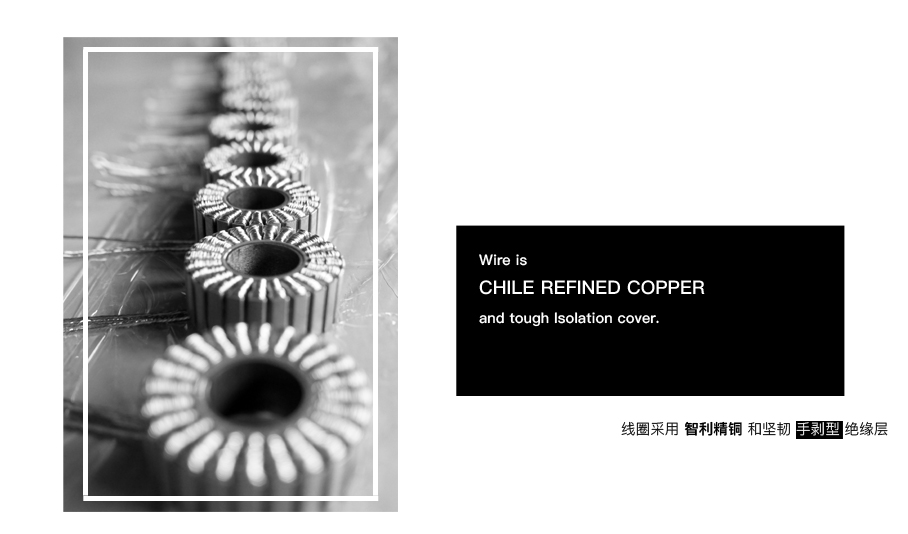

* wire is Chile refined copper and tough Isolation cover.

* 90 HD3 using binding wire technique.

* winding wires are dealt with Isolation epoxy.

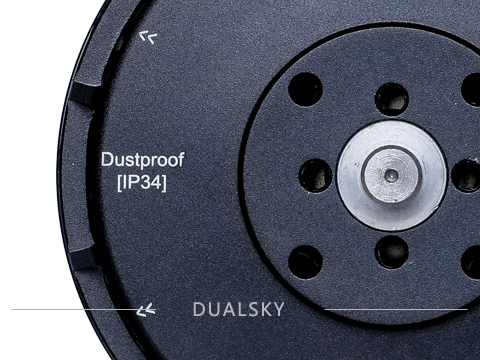

* provide flexible customized solutions: including KV, folding propeller system, and dustproof and waterproof.


  • Description
  • Item Number
  • Download

3RD Generation Heavy duty series for Multi-copter

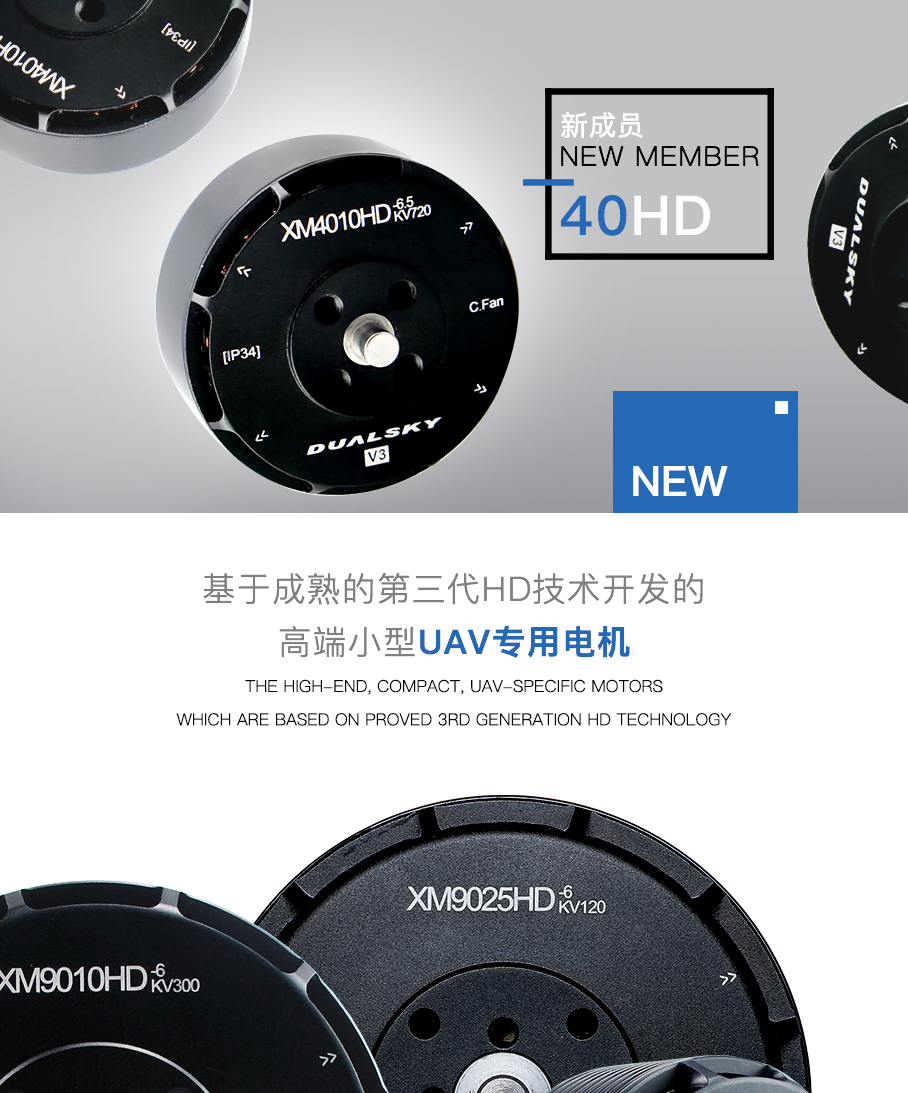

40mm HD3

Item NO.
NO. 51751
NO. 51750
NO. 51749
NO. 51748
Name
XM4006HD-8
XM4006HD-10
XM4010HD-6.5
XM4010HD-10
RPM/V (KV)
1000 800 720 470
Weight w/o wires(g)
55 55 76 76


50mm HD3

Item NO.
NO. 51445
NO. 51446
NO. 51447
Name

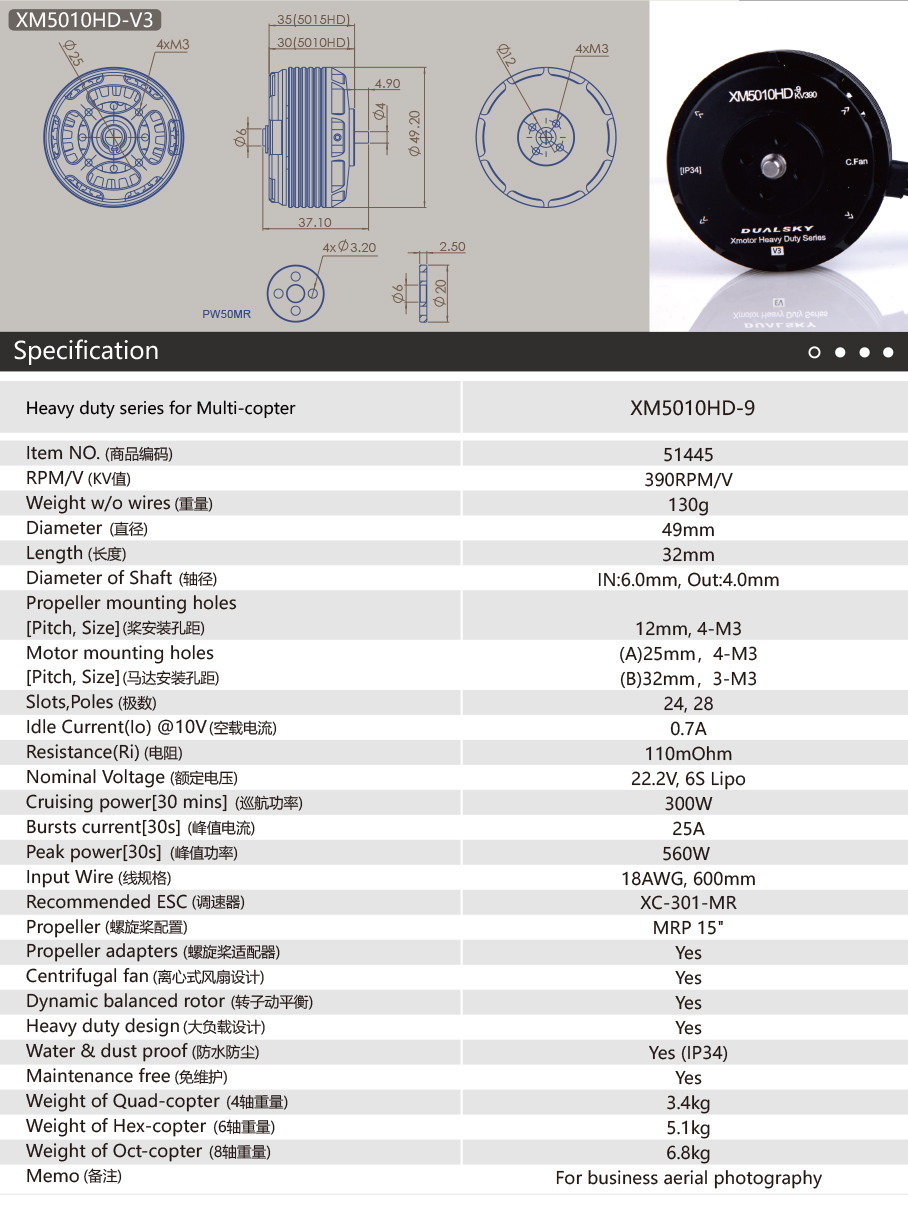

XM5010HD-9

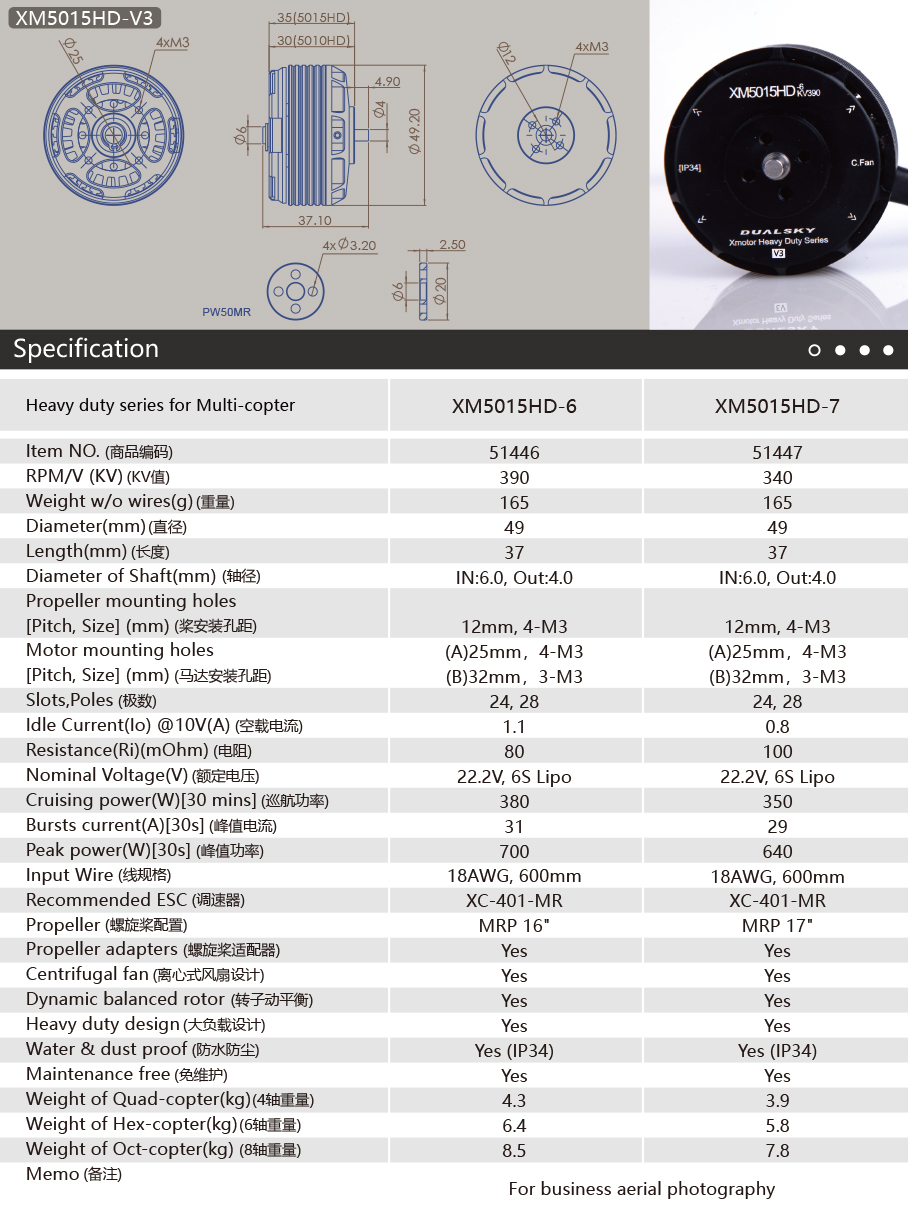

XM5015HD-6
XM5015HD-7
RPM/V (KV)
390 390 340
Weight w/o wires(g)
130 165 165


70mm HD3

Item NO.
NO. 51448
NO. 51449
NO. 51450
NO. 51451
Name

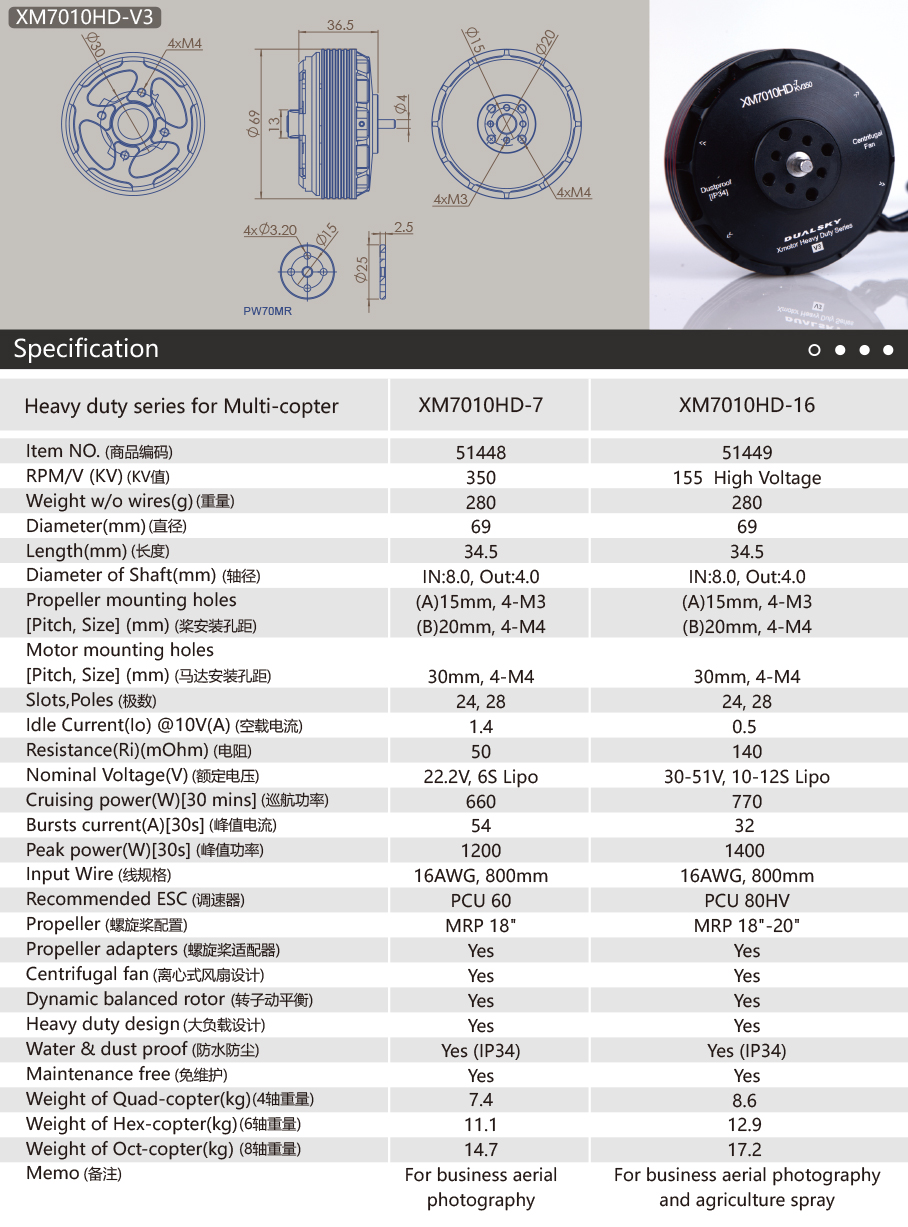

XM7010HD-7
XM7010HD-16

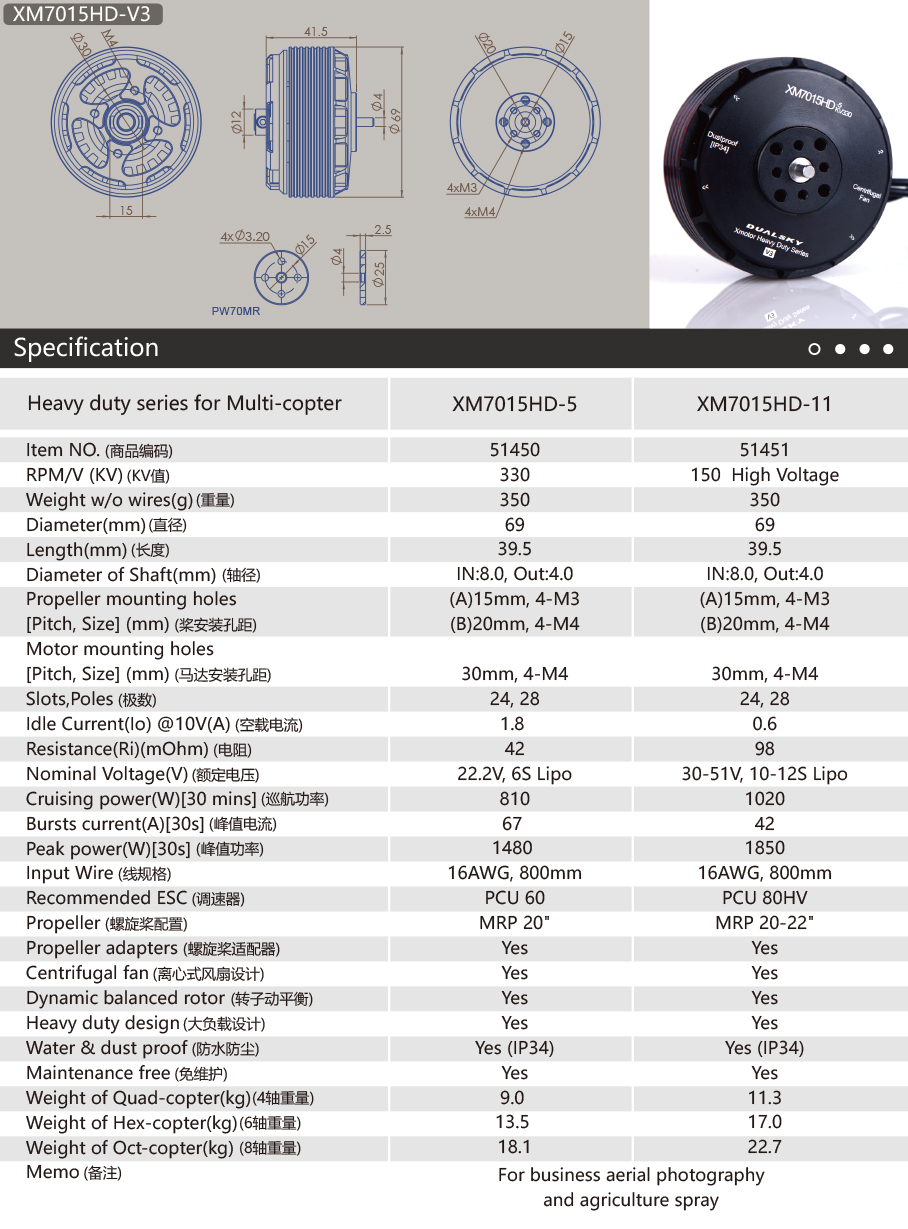

XM7015HD-5
XM7015HD-11
RPM/V (KV) 350

155

High Voltage

330

150

High Voltage

Weight w/o wires(g) 280 280 350 350


90mm HD3

Item No

NO.51452

NO.51453 NO.51457 NO.51454 NO.51455

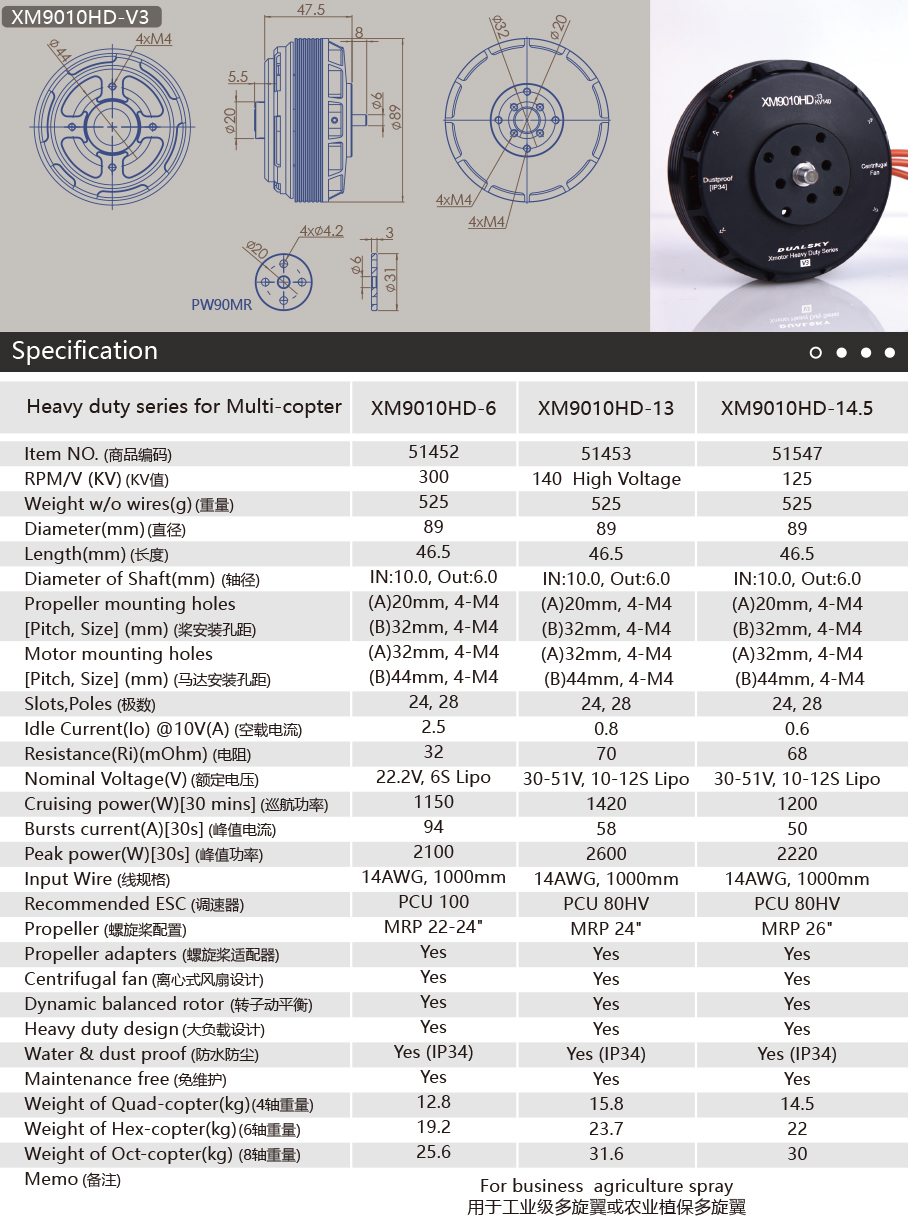

Name XM9010HD-6 XM9010HD-13
XM9010HD-14.5 XM9015HD-10 XM9025HD-6
RPM/V(KV) 300

140 High Voltage

125 120 High Voltage 120 High Voltage
Weight w/o wires(g) 525 525 525 665 1000
