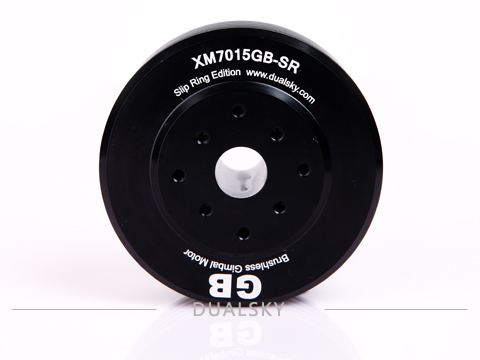

Xmotor GB-SR Brushless Gimbal Outrunner High end slip ring edtion

Covering 50 mm and 90 mm gimbal motor Ultra-thin design The rotor and shaft are one piece by CNC good in strength and light weight Hollow shaft for fixing the slip ring Sealing structure dust-proof and waterproof (IP45)

Product Description:

Specially designed for high-end aerial photography gimbal and handheld gimbal systems

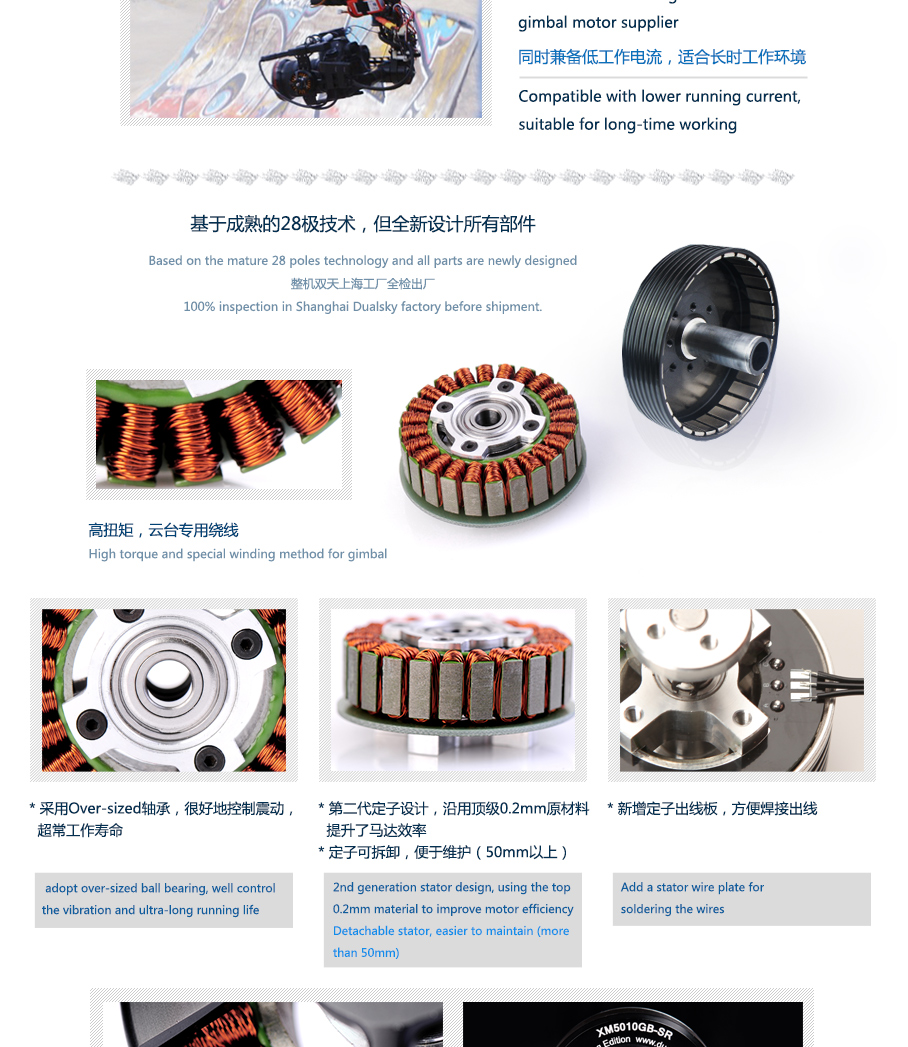

Based on the mature 28 poles technology and all parts are newly designed

2nd generation stator design, using the top 0.2mm material to improve motor efficiency

High torque and special winding method for gimbal

Compatible with lower running current, suitable for long-time working

Detachable stator, easier to maintain (more than 50mm)

Adopt the big sized ball bearing, well control the vibration and ultra-long running life

Light weight design and there are two types, long shaft and short shaft

Add a stator wire plate for soldering the wires

Numerous in variety, matching 3 axis gimbal seamlessly, especially for the needs of YAW gimbal.

Take the lead in film grade gimbal motor supplier

50mm serialssuitable for canon 5D, Nikon D800, Sony A900, and etc

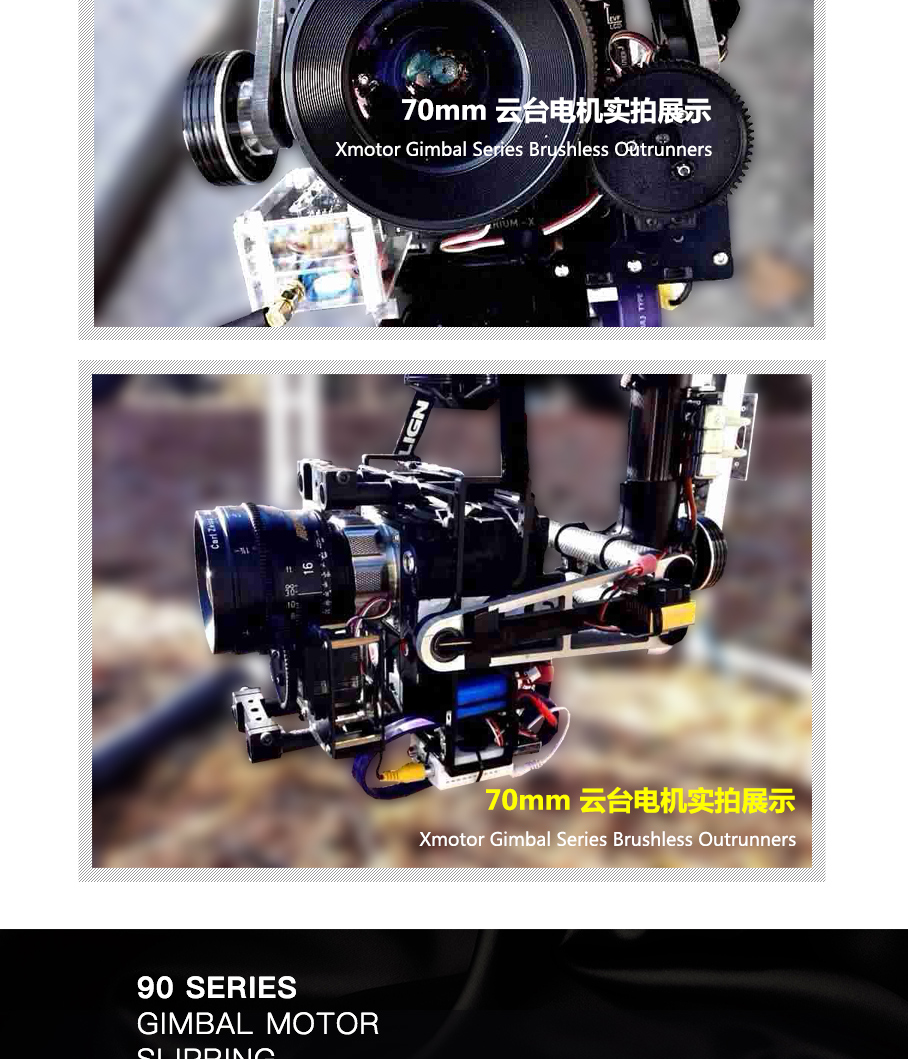

70mm serialssuitable for canon 1D, red epic, and etc

Optimized Dualsky "Star" appearance with precise secondary processing, both artistic and high-precision.

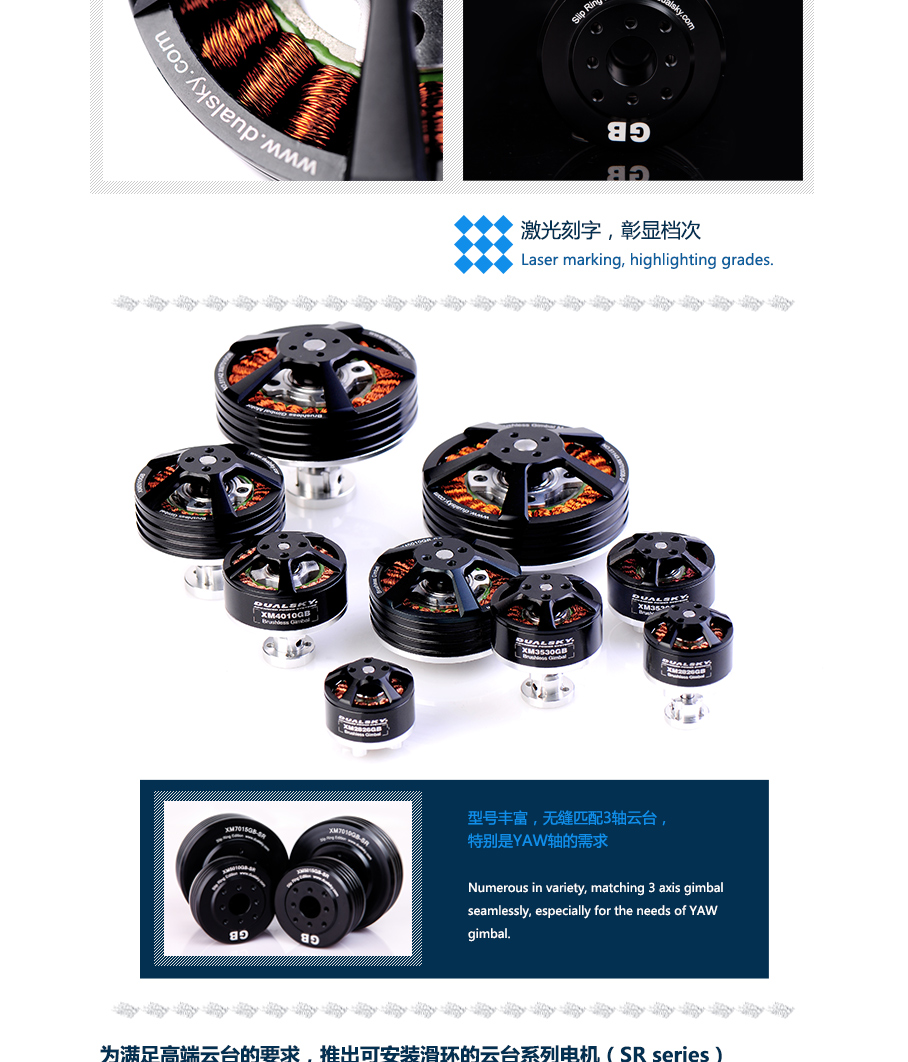

Laser marking, highlighting grades.

100% inspection in Shanghai Dualsky factory before shipment.

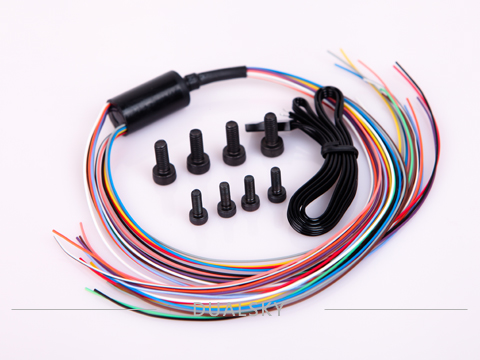

Slip Ring additional features:

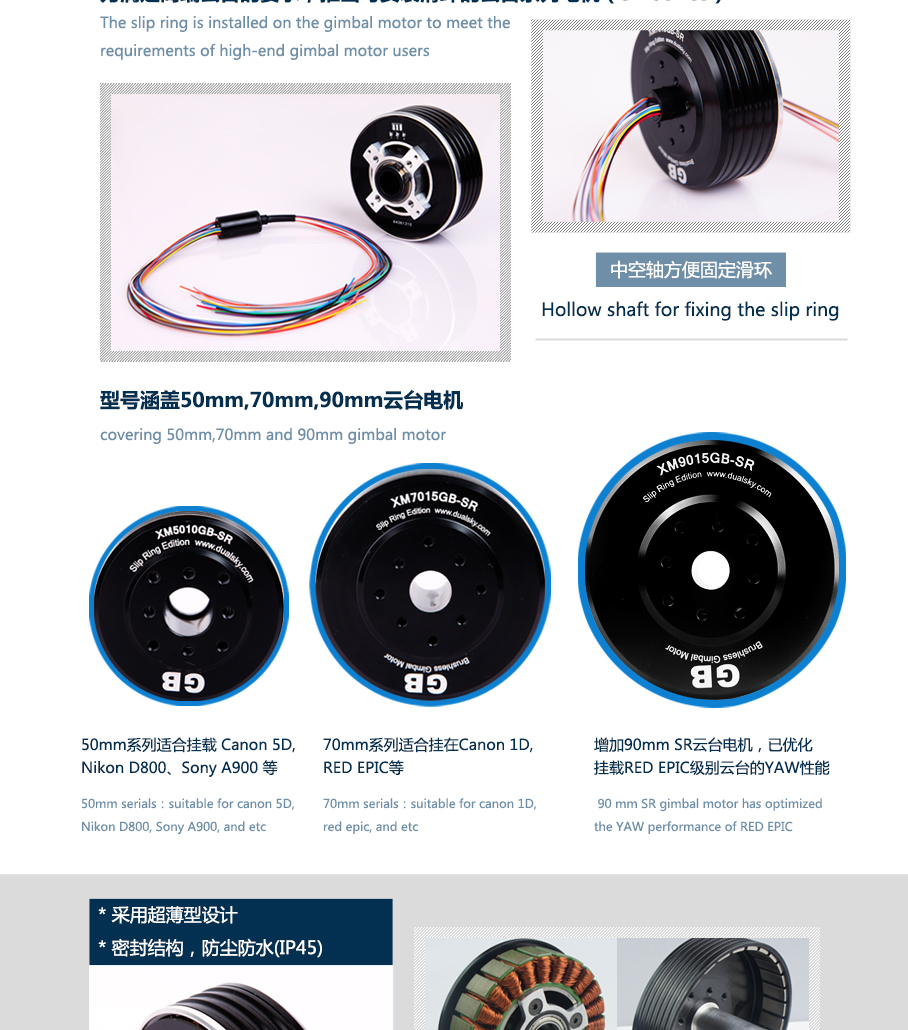

*The slip ring is installed on the gimbal motor to meet the requirements of high-end gimbal motor users

* Covering 50 mm and 90 mm gimbal motor

* 90 mm SR gimbal motor has optimized the YAW performance of RED EPIC

* Ultra-thin design

* The rotor and shaft are one piece by CNC, good in strength and light weight

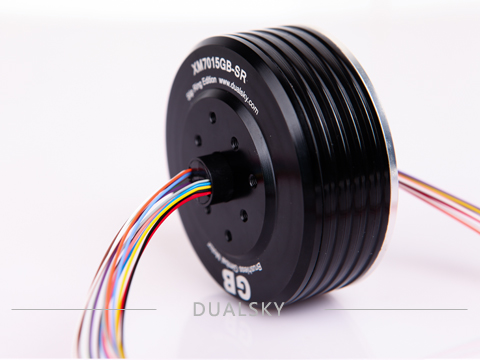

* Hollow shaft for fixing the slip ring

* Sealing structure, dust-proof and waterproof (IP45)

  • Description
  • Item Number
  • Download

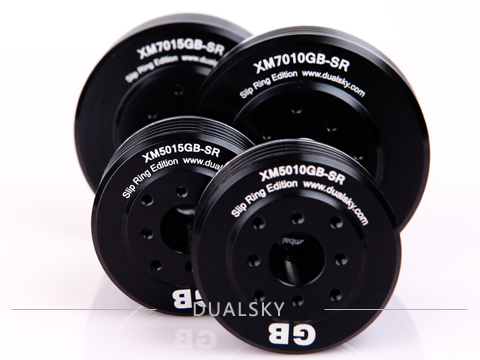

Item Name:Xmotor Brushless Gimbal Outrunner ---- High end slip ring edtion  ----

Item No:

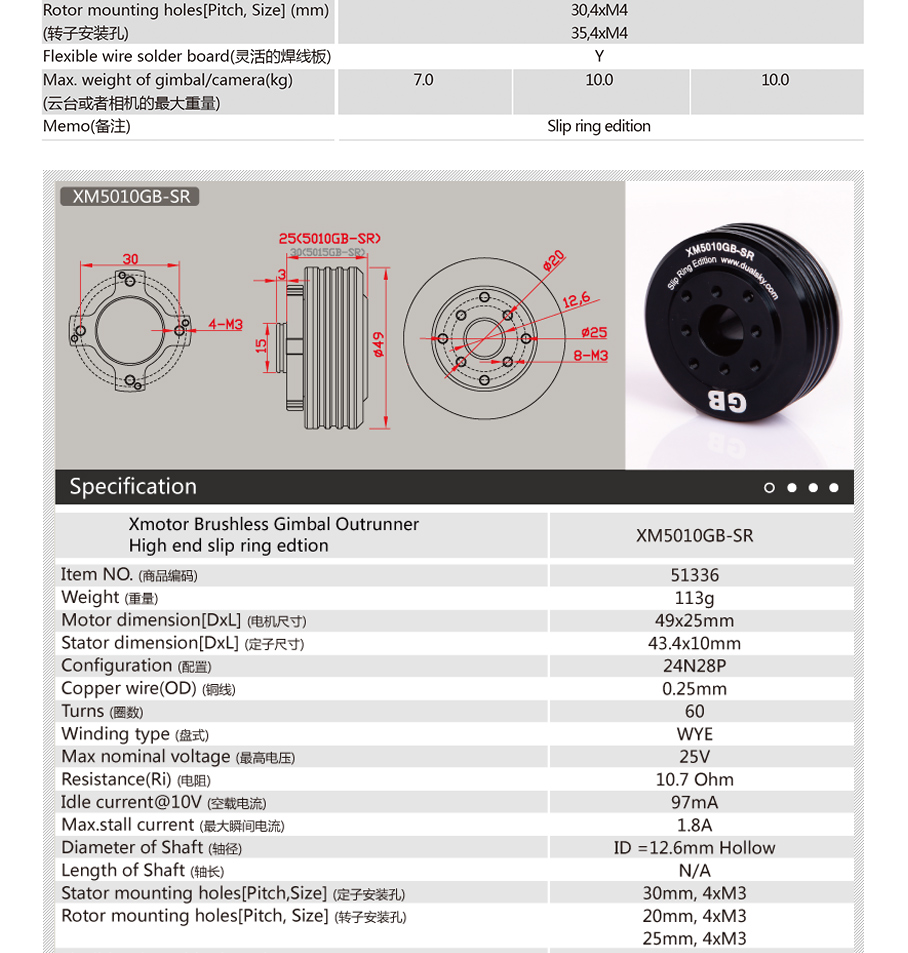

51336 XM5010GB-SR,
51337 XM5015GB-SR

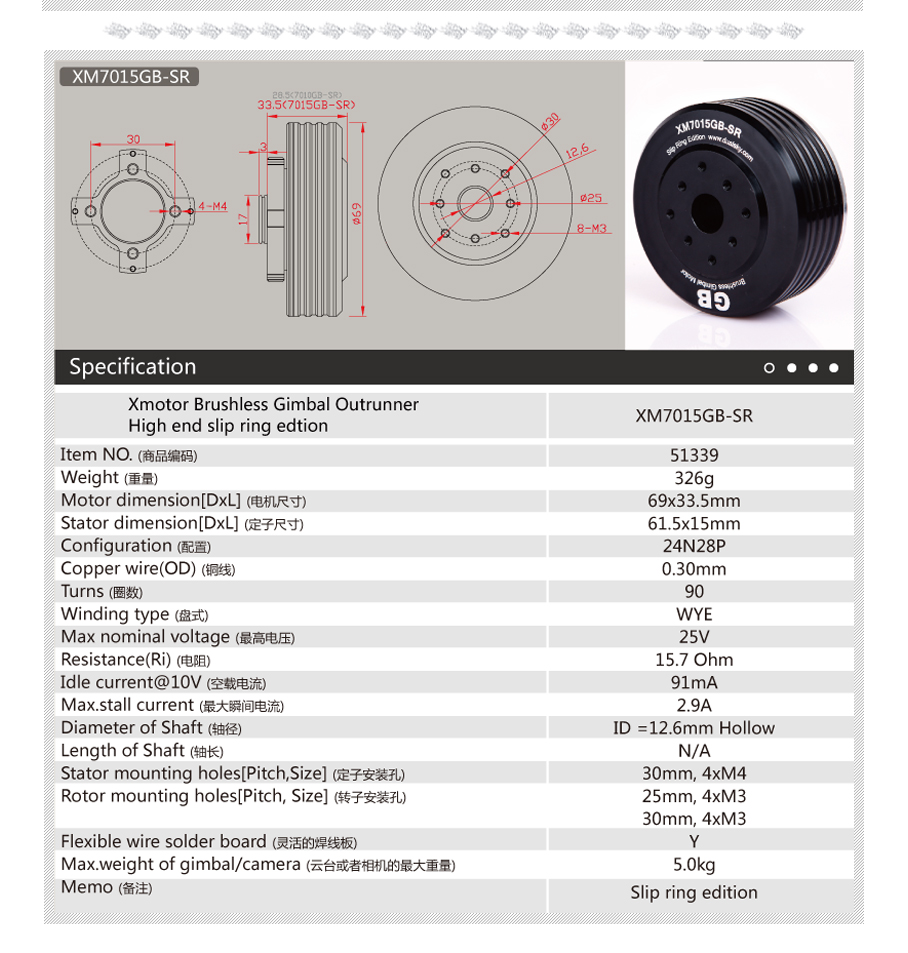

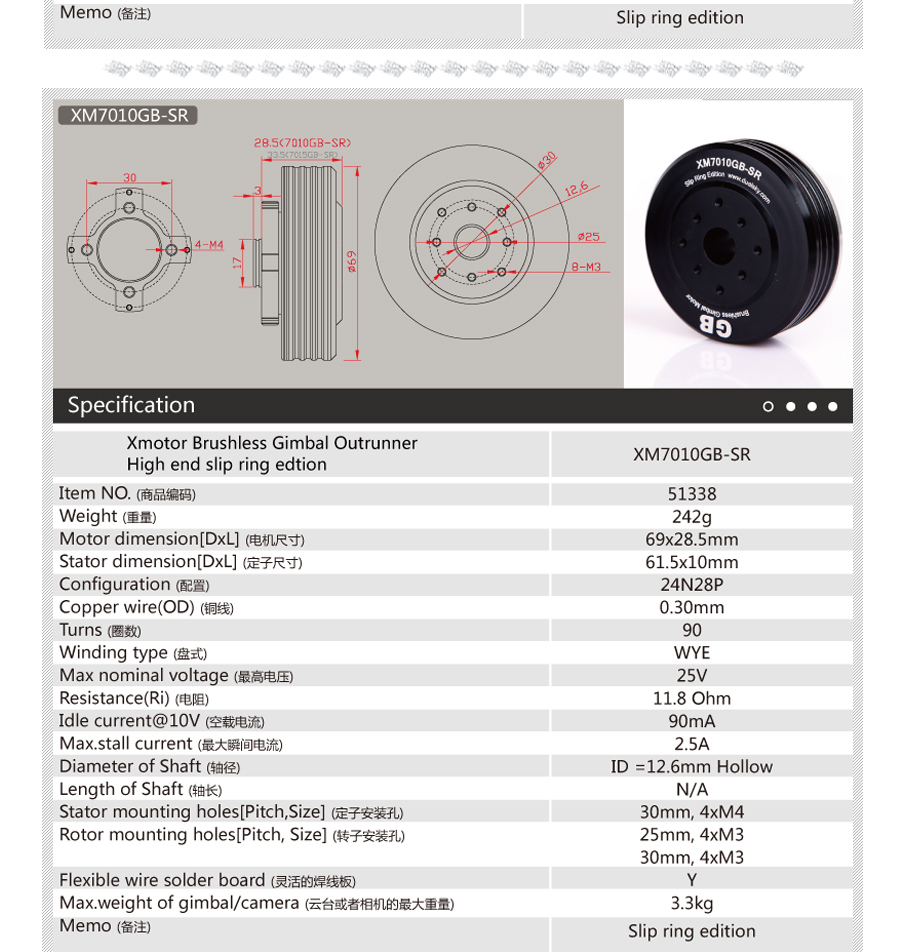

51338 XM7010GB-SR
51339 XM7015GB-SR

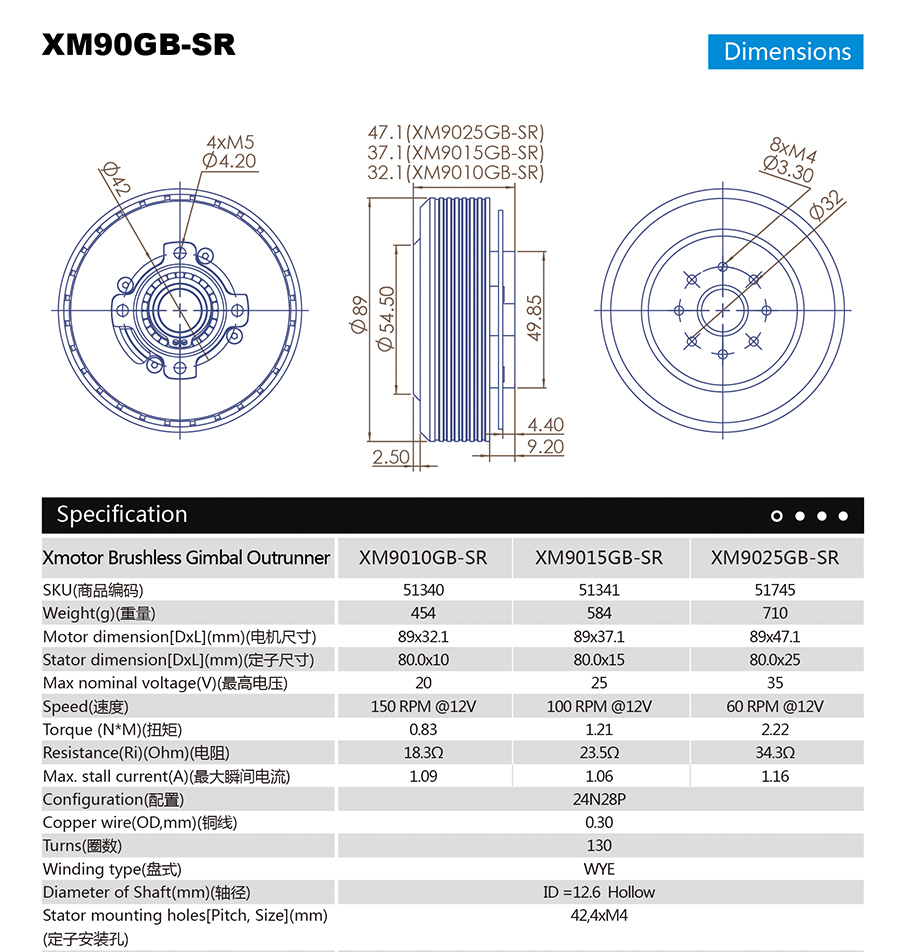

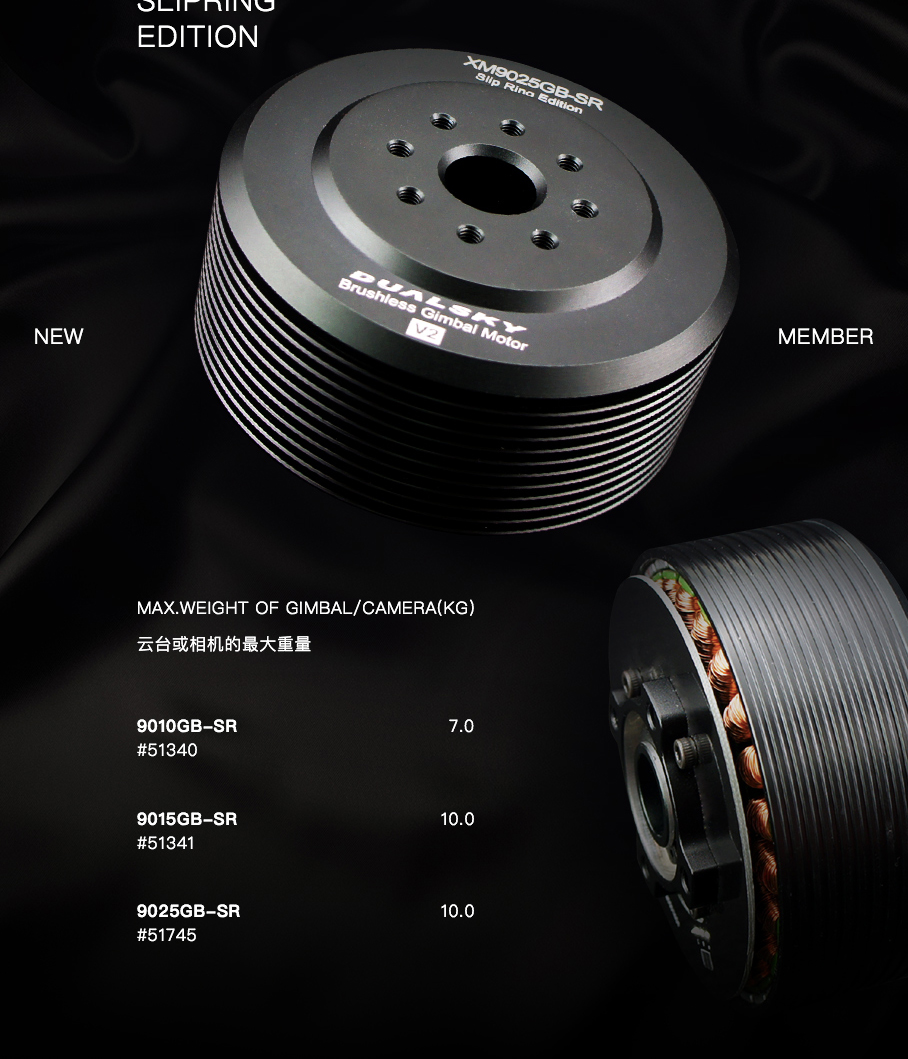

51340 XM9010GB-SR
51341 XM9015GB-SR
51745 XM9025GB-SR
