Xmotor GBD Series New Gimbal Diver Edition

Product Description:

1. GBD motor is a brushless servo motor integrated with motor driver, designed for camera gimbal.
2. GBD motor connect to Main controller via I2C bus, different slave addresses can be selected with a 2-bit DIP switch.
3. The motor uses a 12-bitencoder (AS5600) for precise motion control.
4. Built in slip ring for free rotating.
5. Support 3-6S (not 2S)LiPo battery.
6. GBD motor can only be used with Alex SBGC32 Gimbal controller, other systems are not supported.

  • Description
  • Item Number
  • Download

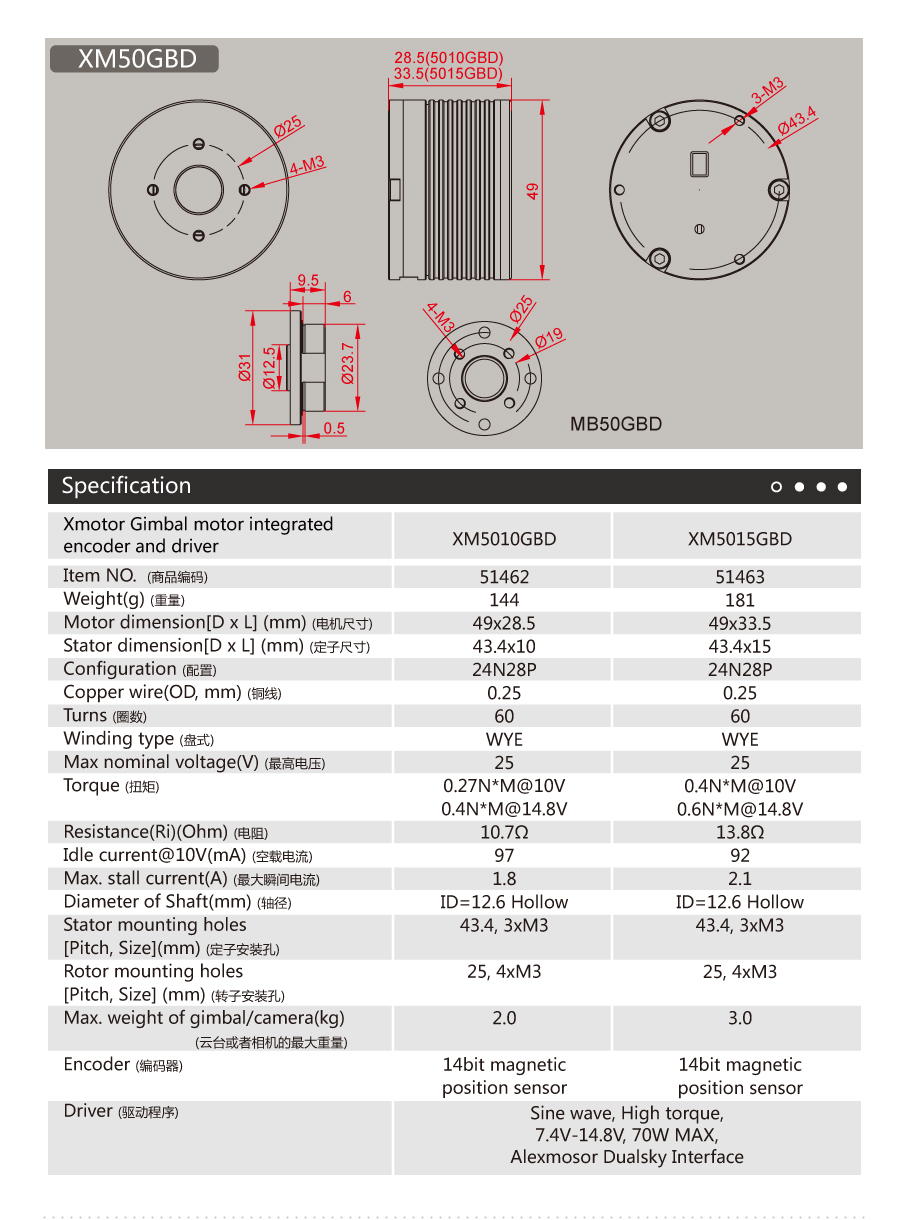

Xmotor Gimbal motor integrated encoder and driver

Item No. Name/Description Weight(g) Max. weight of gimbal/camera(kg)
51461 XM4010GBD

51462 XM5010GBD 144 2.0
51463 XM5015GBD 181 3.0
51464 XM7010GBD 262 4.0
51465 XM7015GBD 344 6.0
