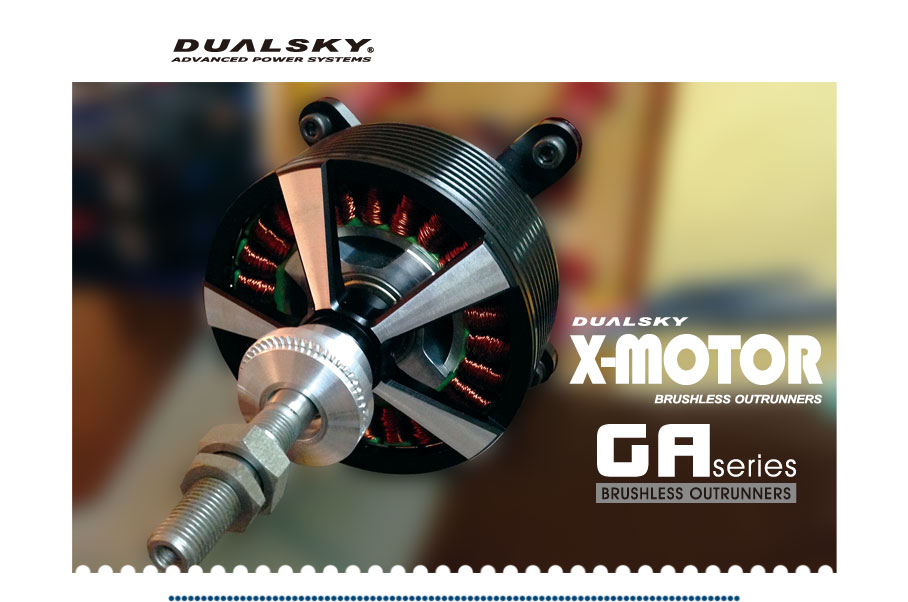

Xmotor GA Giant Airplane Series, for E-conversion of gasoline airplane

High torque design diameter 90mm outrunner Using 12S and 10S Lipo battery Replacing 60 cc gasoline engine Applied up to 9 kg 3D model Environmental friendly product

Product Description:

GA motor - For giant RC airplane series
Key features:
Dualsky biggest RC motor we have ever produced.
Maximum output: 6800w (9.2 HP)
New modular light weight structure
Dualsky 28 poles efficient structure
Driven directly by 90 mm diameter rotor without gearing box

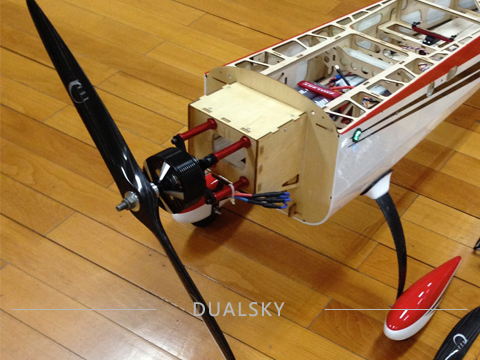

Working quietly, no CO2 emission and a wonderful alternative to 50-60 cc petrol engine
Suitable for less than 9kg 3D and aerobatic models
And less than 14kg fixed wings UAV model planes

Using the best 0.2 mm silicon steel sheet raw materials
Using high grade Neodymium magnet which is resistant to high temperature
Lower IR winding wire to decrease the temperature remarkably after long-time working
Dismountable stator, easier to maintain
12 mm diameter high strength shaft (external 10 mm diameter)
Imported over-sized NSK bearings, low noise and ultra-long life
Long shaft(10mm) and no need to drill the propeller
Propeller fixed with two screws
Pre-drill a 5 mm spinner fixing hole at the top of shaft

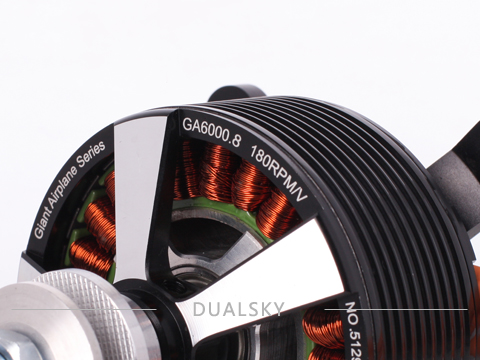

High-precision rotor, dynamically balanced on both sides, lowest resonance in RC industry
New stator cover protecting the power wires

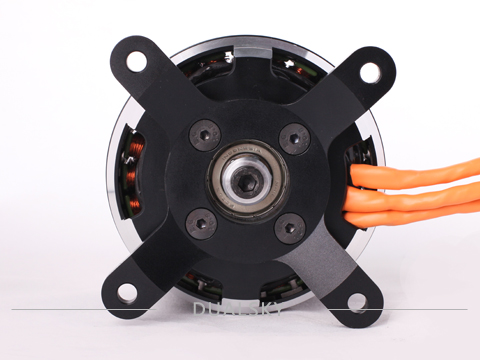

Integrated motor mount

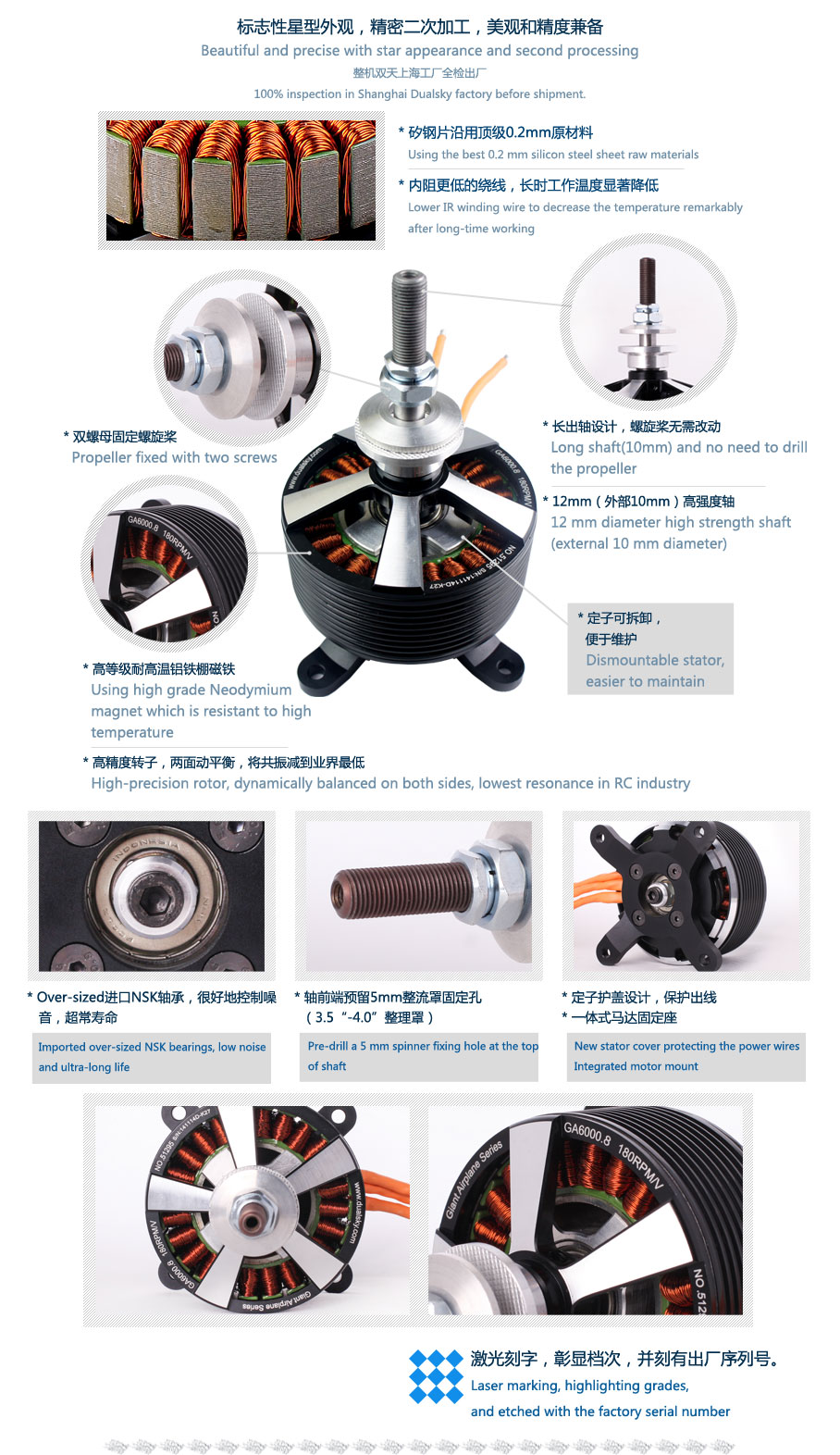

Beautiful and precise with star appearance and second processing
Laser marking, highlighting grades, and etched with the factory serial number

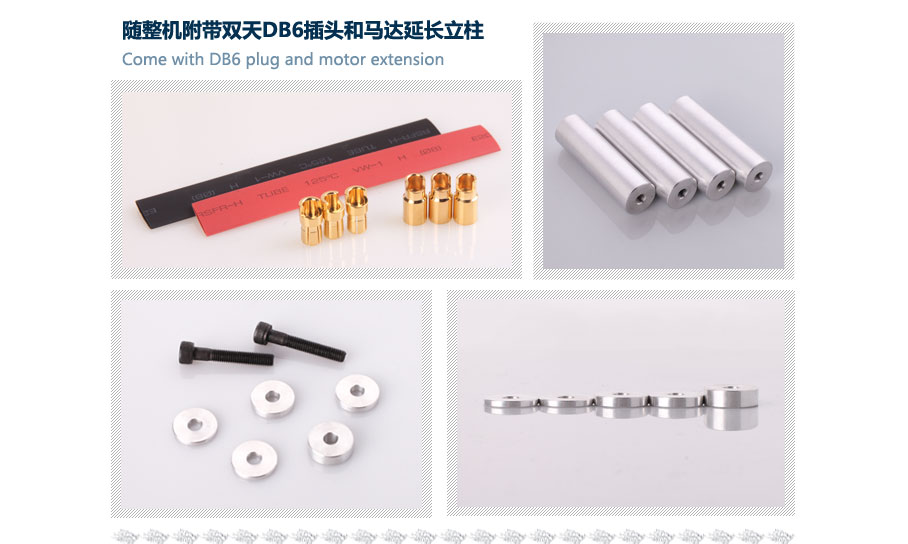

Come with DB6 plug and motor extension

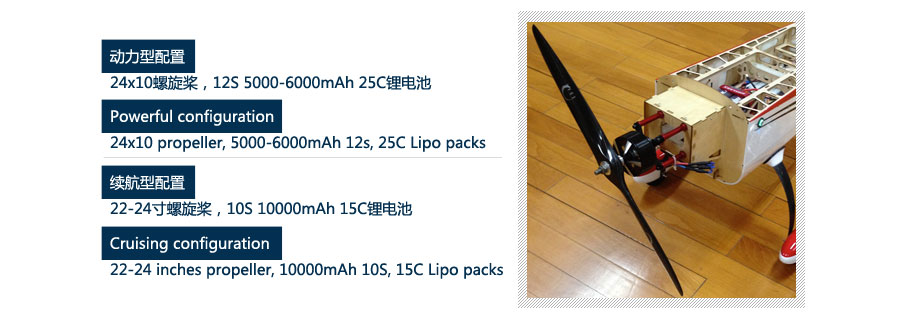

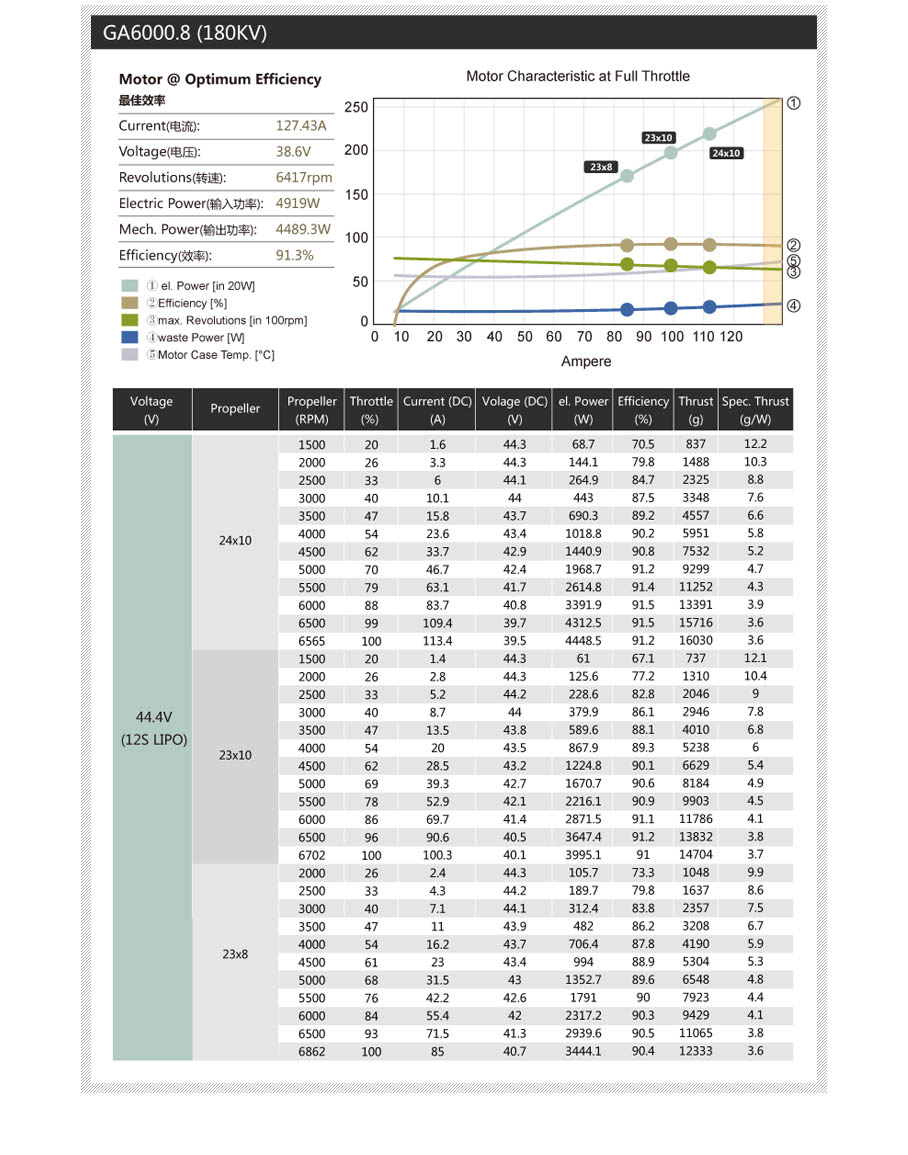

Powerful configuration: 24 x10 propeller, 5000-6000mAh 12s, 35C Lipo packs
Cruising configuration: 22 -24 inches propeller, 10000mAh 12S, 15C Lipo packs

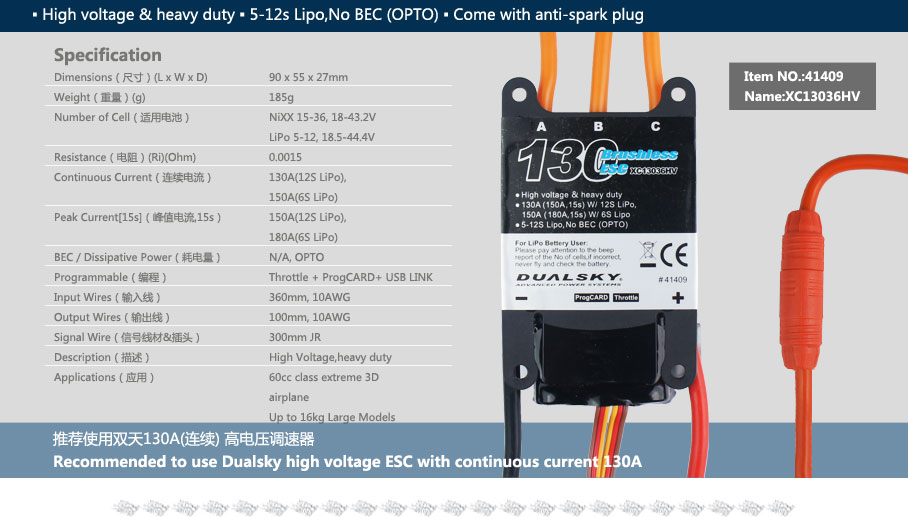

Recommended to use Dualsky high voltage ESC with continuous current 130A
100% inspection in Shanghai Dualsky factory before shipment.

  • Description
  • Item Number
  • Download

Item Name:GA motor - For giant airplane series

Item No:GA6000.8
