2nd Generation Heavy duty series for Multi-copter

Product Description:

======= Heavy Duty 2 added features:========
*    complete high voltage solutions, covering a variety of applications
*    optimize KV, apply to aerial photography and plant protection

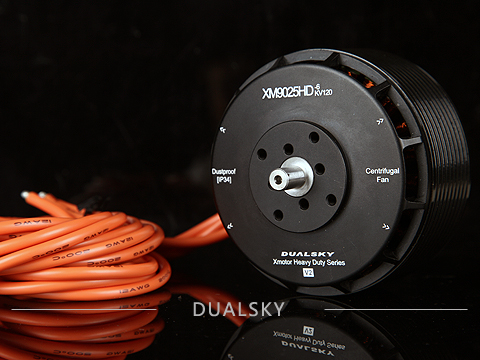

*    fully-new 9025HD provide single shaft of up to 5000 w output
*    high efficiency, low calorific value, suitable for long running

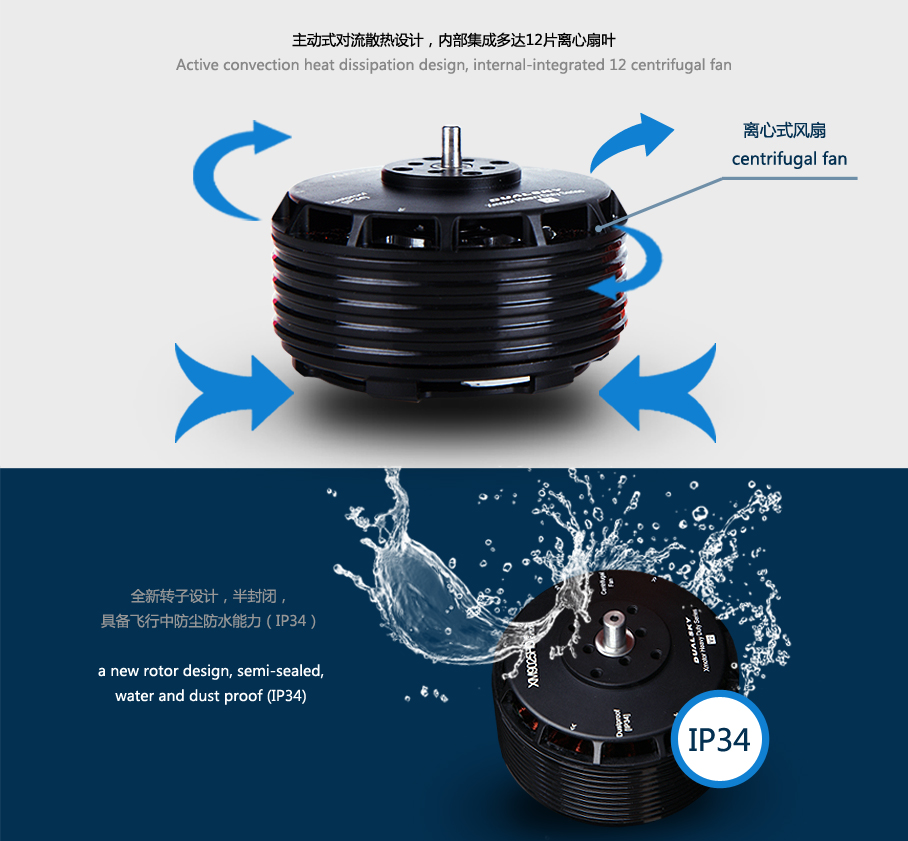

*    active convection heat dissipation design, internal-integrated 12 centrifugal fan
*    a new rotor design, semi-sealed,water and dust proof (IP34)
*    optimize structure rigidity, more suitable for harsh environment and meet the requirements of high attendance


========HD2 features:==========

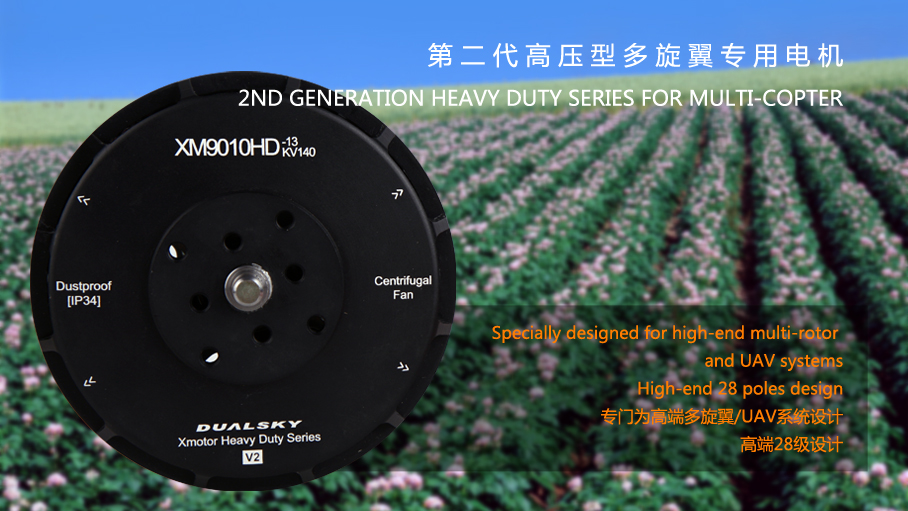

   specially designed for high-end multi-rotor and UAV systems
   high-end 28 poles design

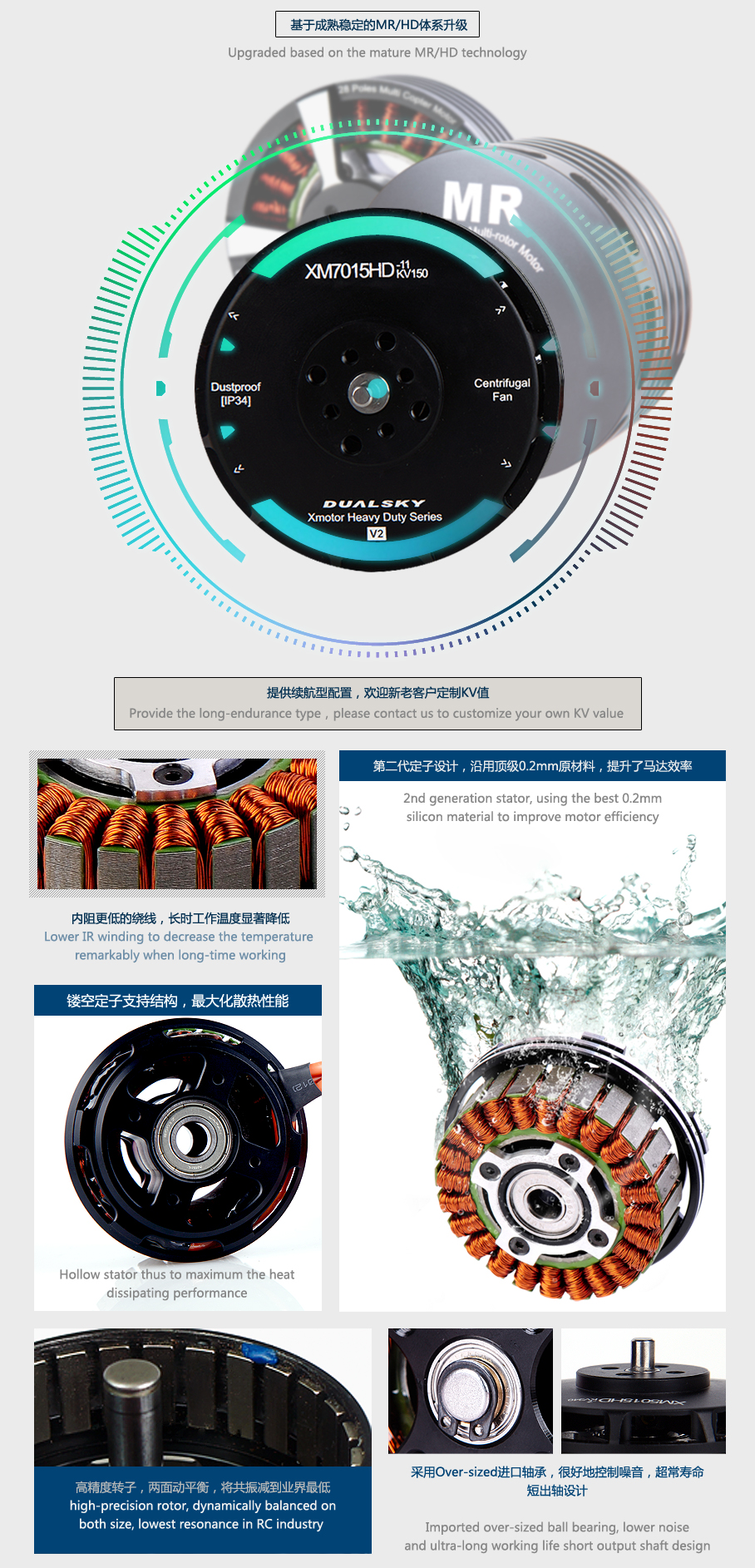

   upgraded based on the mature MR/HD technology
   2nd generation stator, using the best 0.2mm silicon material to improve motor efficiency
   Hollow stator thus to maximum the heat dissipating performance
   Lower IR winding to decrease the temperature remarkably when long-time working
   Imported over-sized ball bearing, lower noise and ultra-long working life
   short output shaft design
   high-precision rotor, dynamically balanced on both size, lowest resonance in RC industry
   New stator cover to protect power wires

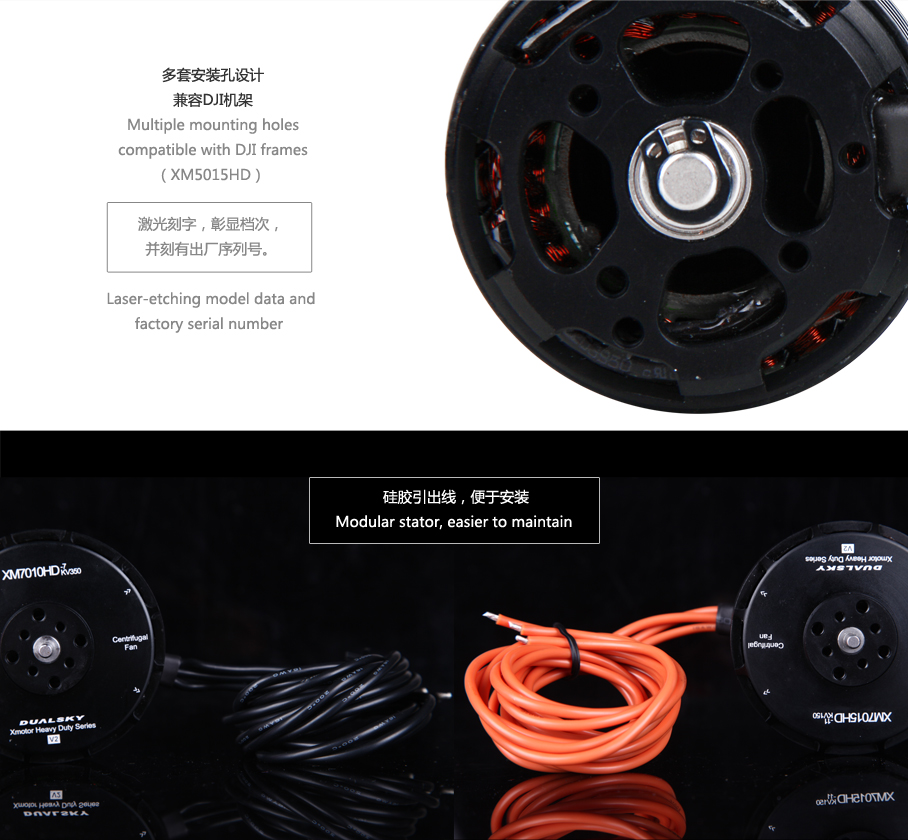

   Multiple mounting holes, compatible with DJI frames
   Lengthen silicon power wire, easy to install
   Modular stator, easier to maintain
   Laser-etching model data and factory serial number

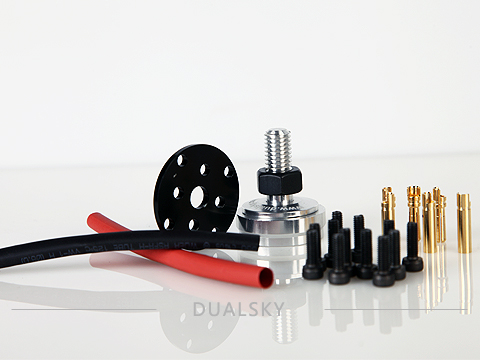

   Comes with propeller adapters, can install traditional and professional propellers

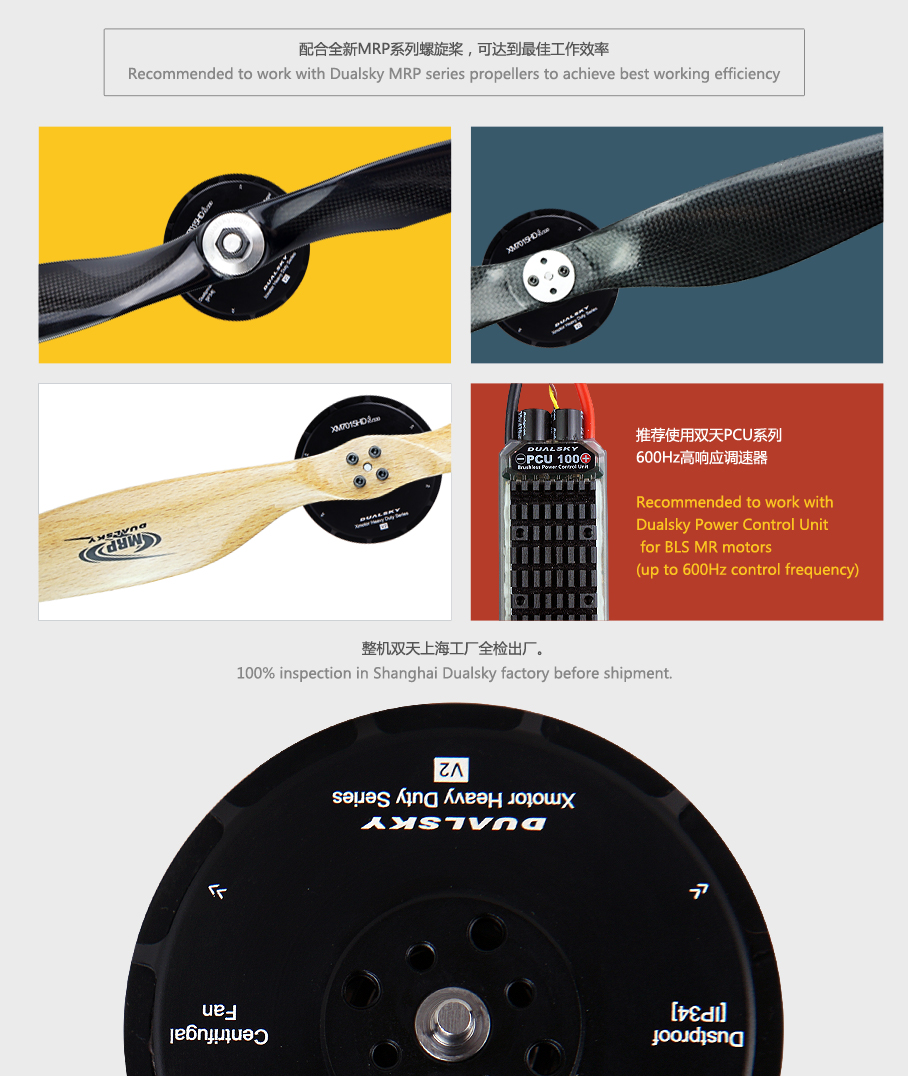

   Recommended to work with Dualsky MRP series propellers to achieve best working efficiency
   100% inspection in Shanghai Dualsky factory before shipment.


  • Description
  • Item Number
  • Download

2nd Generation Heavy duty series for Multi-copter

50mm HD2

Item NO.
NO. 51445
NO. 51446
NO. 51447
Name
XM5010HD-9
XM5015HD-6
XM5015HD-7
RPM/V (KV)
390 390 340
Weight w/o wires(g)
130 165 165

70mm HD2

Item NO.
NO. 51448
NO. 51449
NO. 51450
NO. 51451
Name

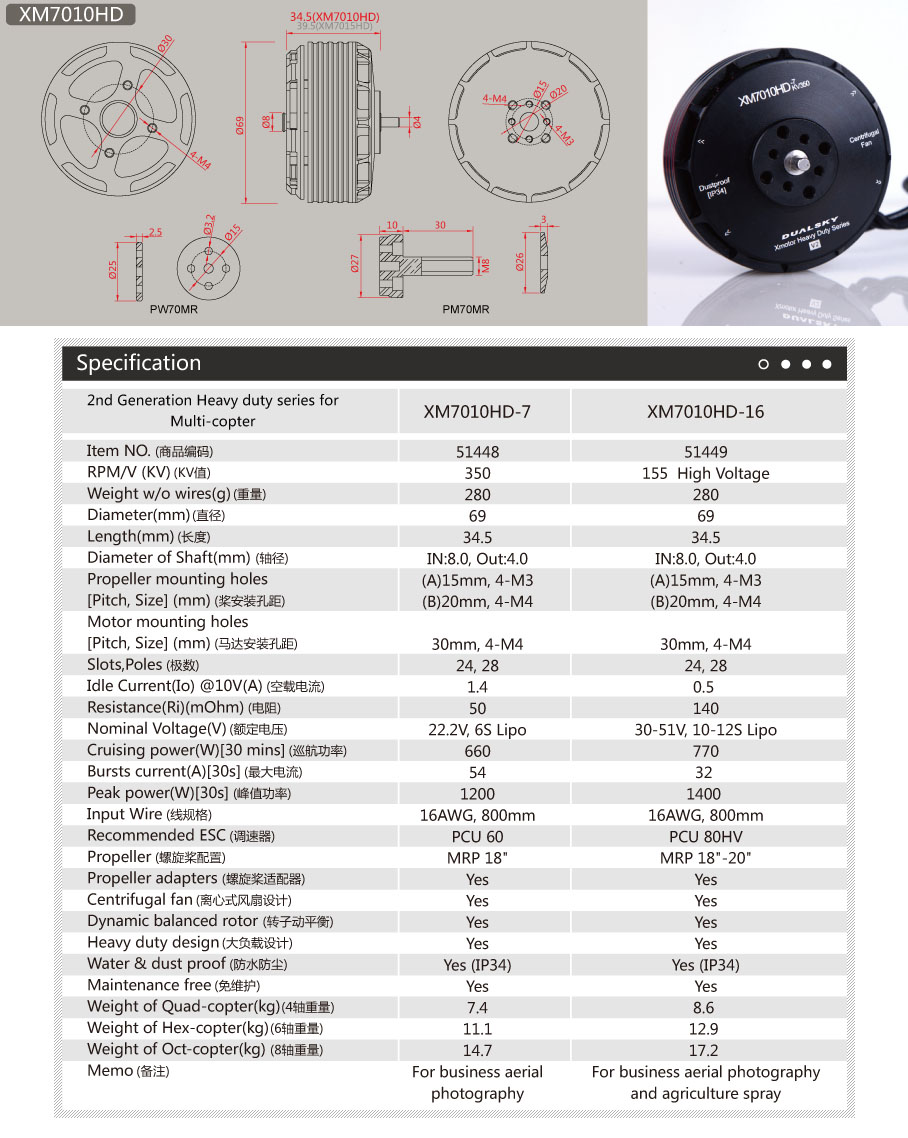

XM7010HD-7
XM7010HD-16
XM7015HD-5
XM7015HD-11
RPM/V (KV) 350

155

High Voltage

330

150

High Voltage

Weight w/o wires(g) 280 280 350 350

90mm HD2

Item NO.
NO. 51452
NO. 51453
NO. 51454
NO. 51455
Name
XM9010HD-6
XM9010HD-13

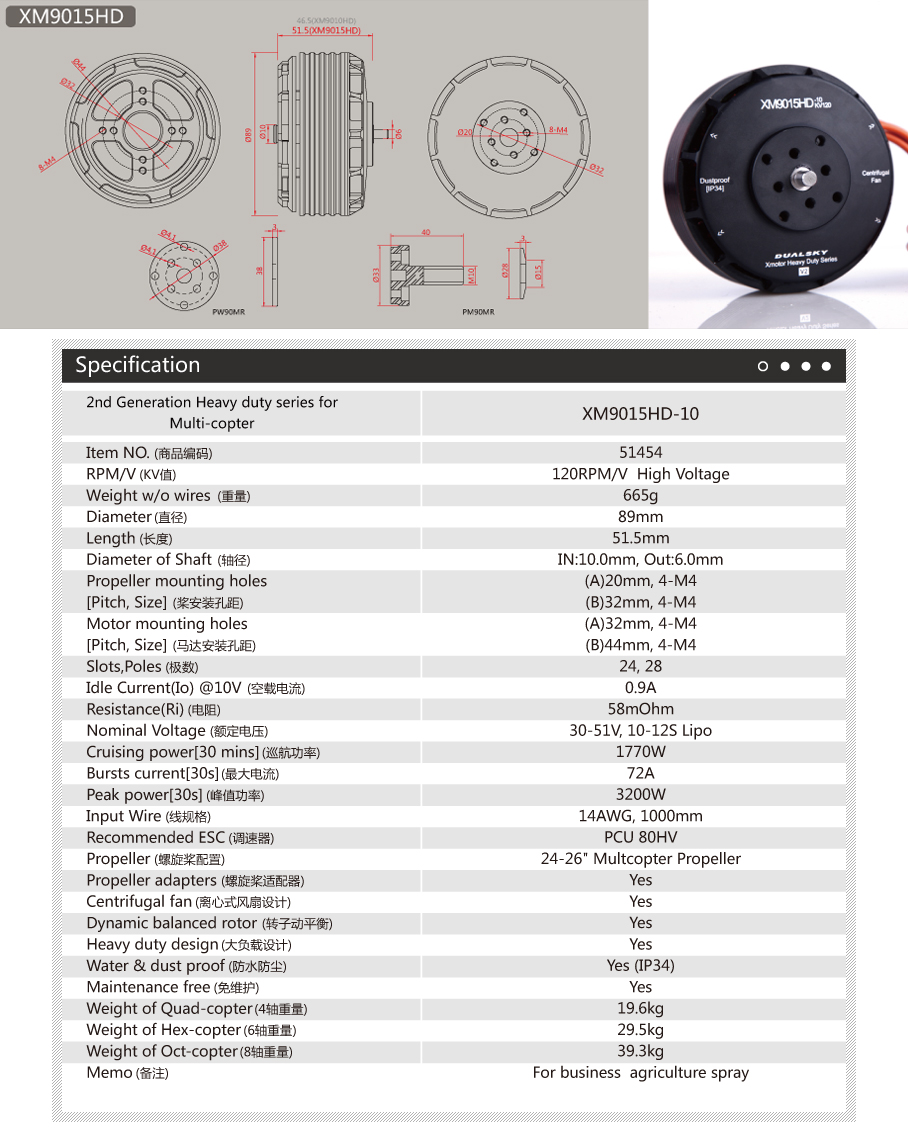

XM9015HD-10
XM9025HD-6
RPM/V (KV)
300 140
High Voltage
120
High Voltage
120
High Voltage
Weight w/o wires(g)
525 525 665 1000
