Designed for hign-end multi-rotor and UAV Based on the mature TE-MR, all parts are newly designed 2nd generation stator Detachable stator, easier to maintain Imported over-sized ball bearing Short shaft design
Product Description:
brushless motor, specially
designed for high-end multi-rotor and UAV systems.
Imported over-sized ball
bearing, lower noise
Optimized Dualsky
"Star" appearance with precise processing, both artistic and
high-precision
Based on the mature TE-MR technology and all parts are newly designed
2nd generation stator, using the best
Lower IR winding to decrease the temperature
remarkably when long-time working
Detachable
stator, easier to maintain
and ultra-long working life
Short shaft design
High-precision rotor, dynamically balanced on
both sides, lowest resonance in RC industry
New stator cover to protect power wires
Multiple mounting holes, compatible with DJI
frames
Lengthen silicon power wire, easy to install
Laser-etching model data and factory serial
number
Comes with propeller adapters, can install
traditional and professional CF propellers
There are two RPM for each motor size to fit the
different flight requirements: high power type and long flight time type
Recommended to work with Dualsky MRP series
propellers to achieve best working efficiency
Recommended to work with Dualsky MR series ESC (up to600Hz control frequency)
Add
Item Name:Xmotor MR series brushless outrunners
Item No:Popular multi-rotor class with dualsky unqiue design | |||
51098 | XM5010MR-9, evolution, 28 poles | 390 RPM/V | 114g |
51226 | XM5010MR-7.5, evolution, 28 poles | 480 RPM/V | 114g |
51099 | XM5010MR-11, evolution, 28 poles | 320 RPM/V | 114g |

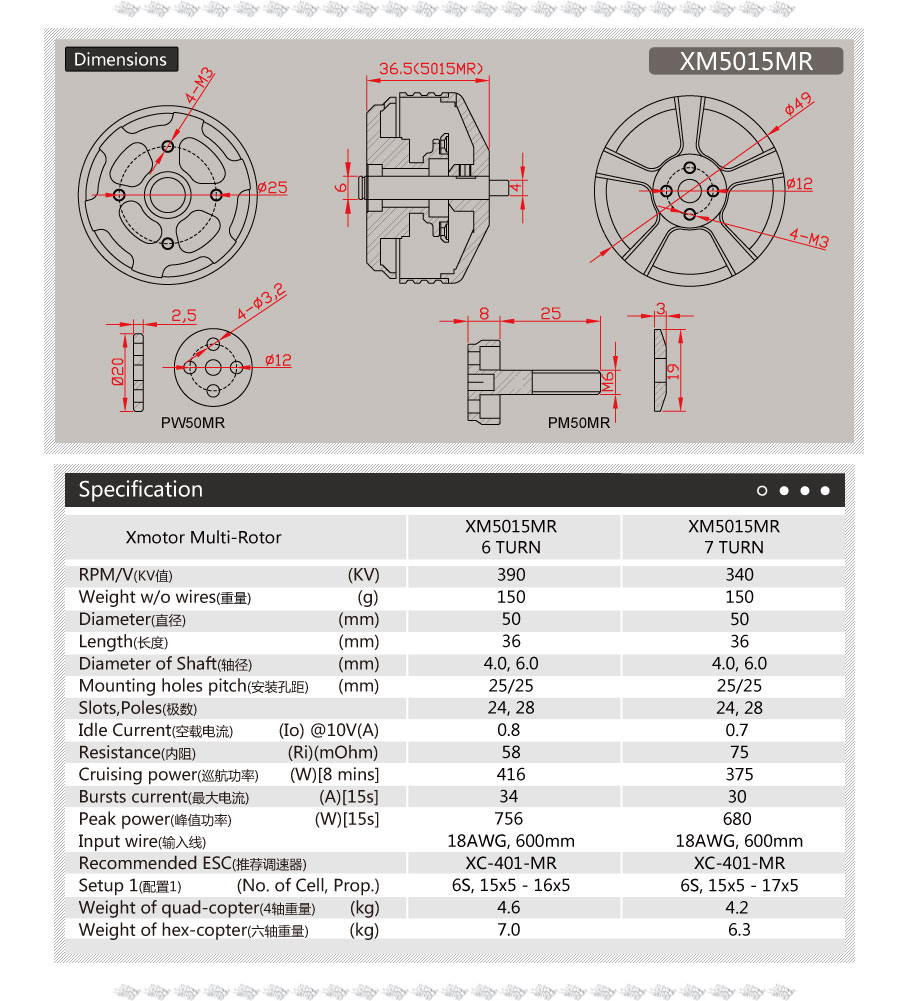

51100 | XM5015MR-6, evolution, 28 poles | 390 RPM/V | 150g |
51101 | XM5015MR-7, evolution, 28 poles | 340 RPM/V | 150g |
51102 | XM7010MR-6.5, evolution, 28 poles | 380 RPM/V | 270g |
51048 | XM7010MR-7.5, evolution, 28 poles | 330 RPM/V | 270g |
51307 |
XM7010MR-8HD, high voltage, water proof (IP34) |
175 RPM/V | 255g |
51308 | XM7010MR-10HD, high voltage, water proof | 140 RPM/V | 255g |
51309 | XM7010MR-14HD, high voltage, water proof | 100 RPM/V | 255g |
51103 | XM7015MR-4.5, evolution, 28 poles | 370 RPM/V | 345g |
51049 | XM7015MR-5, evolution, 28 poles | 330 RPM/V | 345g |
51310 |
XM7015MR-9HD, high voltage, water proof (IP34) |
180 RPM/V | 325g |
51311 | XM7015MR-11HD, high voltage, water proof | 145 RPM/V | 325g |
51312 | XM7015MR-16HD, high voltage, water proof | 100 RPM/V | 325g |
All New 90mm Multi-rotor brushless motor for heavy duty applications | |||
51313 | XM9010MR-5 | 360 RPM/V | 450g |
51314 |
XM9010MR-6 Heavy duty multi copter motor for 6S |
300 RPM/V | 450g |
