Xmotor_MR_28-46

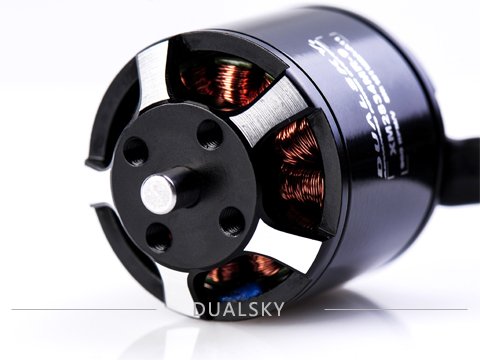

Xmotor 28-46 Multi Rotor Brushless Outrunner

Designed for hign-end multi-rotor and UAV Based on the mature TE-MR, all parts are newly designed 2nd generation stator Detachable stator, easier to maintain Imported over-sized ball bearing Short shaft design

Product Description:

brushless motor, specially designed for high-end multi-rotor and UAV systems.
Based on the mature TE-MR technology and all parts are newly designed
2nd generation stator, using the best 0.2mm silicon material to improve motor efficiency
Lower IR winding to decrease the temperature
remarkably when long-time working
Detachable stator, easier to maintain

Imported over-sized ball bearing, lower noise
and ultra-long working life
Short shaft design

Optimized Dualsky "Star" appearance with precise processing, both artistic and high-precision
High-precision rotor, dynamically balanced on both sides, lowest resonance in RC industry
New stator cover to protect power wires
Multiple mounting holes, compatible with DJI frames
Lengthen silicon power wire, easy to install
Laser-etching model data and factory serial number
Comes with propeller adapters, can install traditional and professional CF propellers
There are two RPM for each motor size to fit the different flight requirements: high power type and long flight time type
Recommended to work with Dualsky MRP series propellers to achieve best working efficiency
Recommended to work with Dualsky MR series ESC (up to600Hz control frequency)

100% inspection in Shanghai Dualsky factory before shipment.


  • Description
  • Item Number
  • Download

Item Name:Xmotor MR series brushless outrunners

Item No:
51215 XM2834MR-9, high efficiency, 14 poles 960 RPM/V 70g
51216 XM2834MR-10.5, high efficiency, 14 poles 830 RPM/V 70g
51217 XM3542MR-7.5, high efficiency, 14 poles 700 RPM/V 120g
51218 XM3542MR-11.5, high efficiency, 14 poles 460 RPM/V 120g
51219 XM4010MR-5, evoluiton, 28 poles 930 RPM/V 80g
51220 XM4010MR-6.5, evolution, 28 poles 710 RPM/V 80g
51221 XM4010MR-7.5, evolution, 28 poles 620 RPM/V 80g
51222 XM4608MR-8.5, high efficiency, 22 poles 690 RPM/V 100g
51223 XM4608MR-10, high efficiency, 22 poles 590 RPM/V 100g
51224 XM4608MR-15, high efficiency, 22 poles 400 RPM/V 100g
51225 XM4614MR-9, evolution for S800 380 RPM/V 145g
