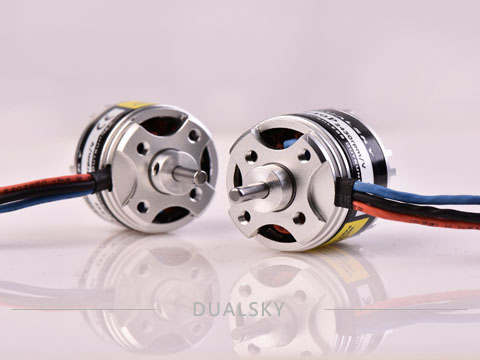

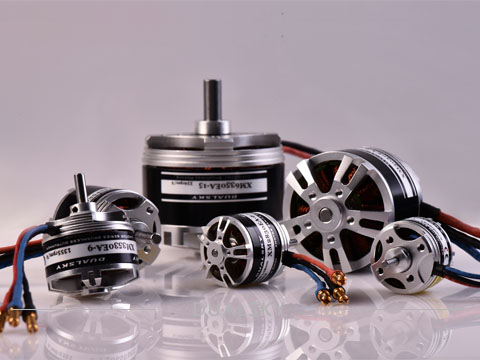

Xmotor EA brushless outrunners for air

Improved front cover, better heat dissipation Rotor with more beautiful star design Use high efficiency silicon steel Partial motors upgrade Durotate technique

Product Description:

Partial motors upgrade Durotate technique(XM4255EA-XM6360EA)
Prolong the lifetime of rotor in the environment of highpower and high torque
Improve running efficiency in middle RPM range
Optimize the shape of back cover and reduce air noise
Notice: Durotate rotor doesn't compatible with previous motor

features:
Improved front cover, better heat dissipation

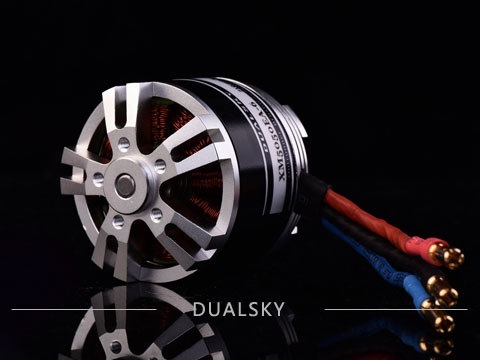

Rotor with more beautiful star design
Increase the intensity of rotor and shell, reduce vibration and bear more load

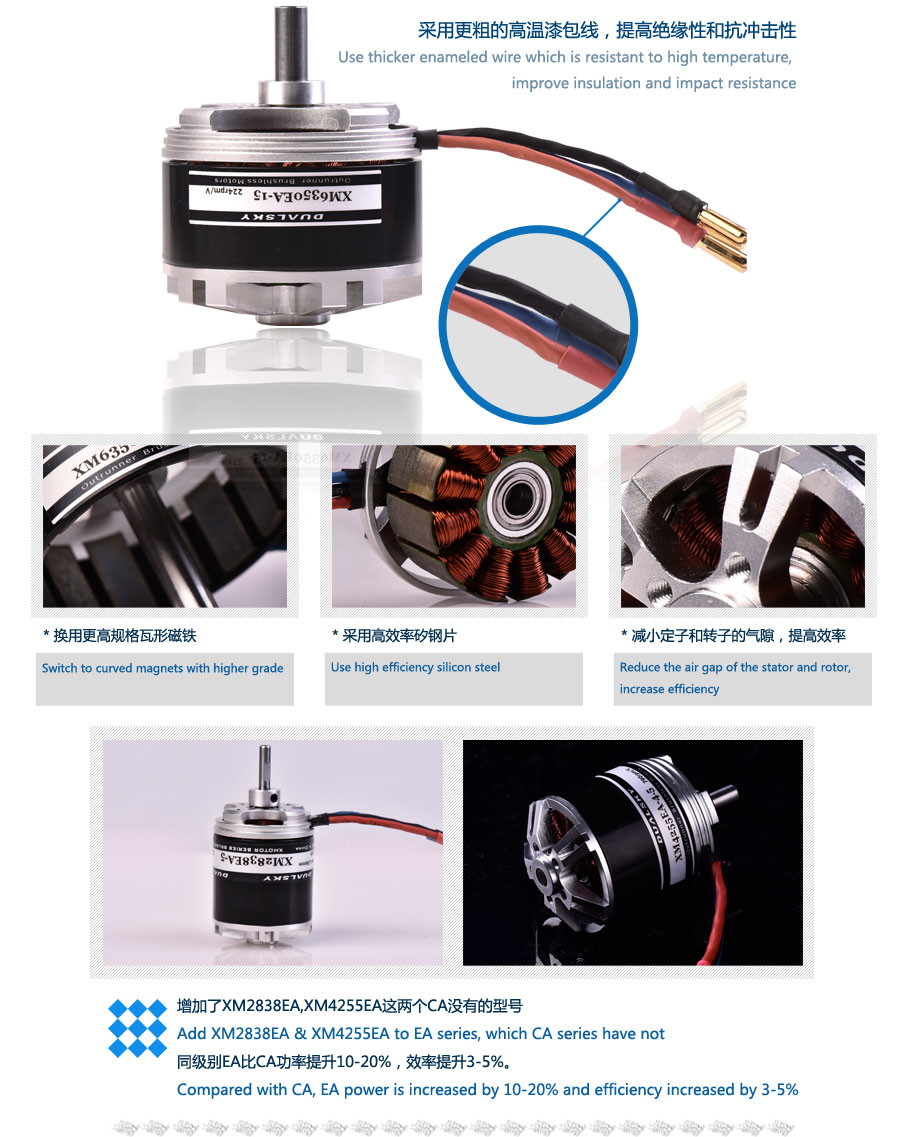

Switch to curved magnets with higher grade

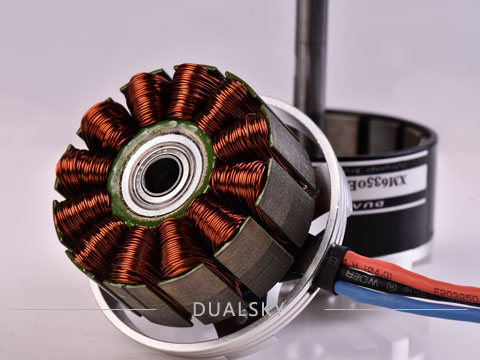

Use high efficiency silicon steel
Reduce the air gap of the stator and rotor, increase efficiency
Use thicker enameled wire which is resistant to high temperature, improve insulation and impact resistance
Compared with CA, EA power is increased by 10-20% and efficiency increased by 3-5%
More options for KV value, suitable for practical use
Add XM2838EA & XM4255EA to EA series, which CA series have not

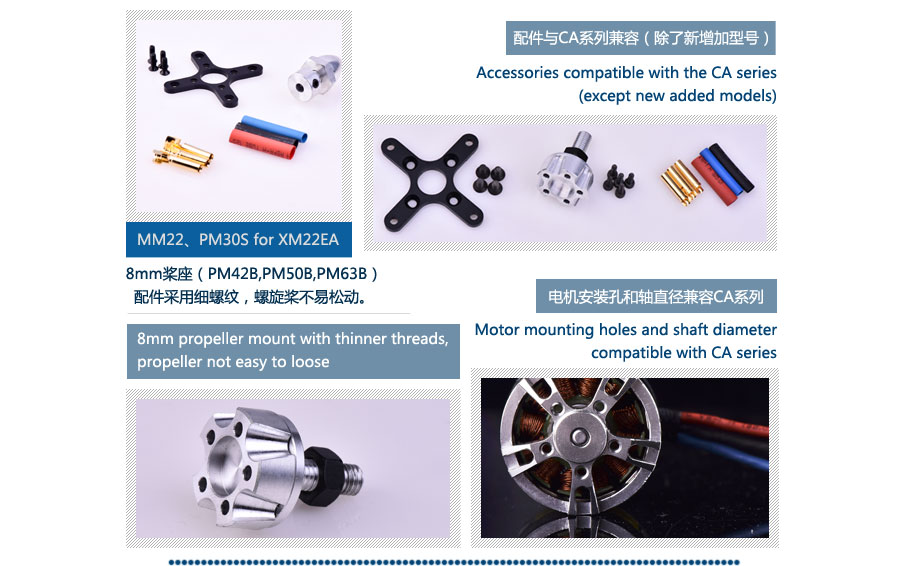

Motor mounting holes and shaft diameter compatible with CA series
Accessories compatible with the CA series(except new added models)
8mm propeller mount with thinner threads, propeller not easy to loose


  • Description
  • Item Number
  • Download

Item Name:Xmotor EA brushless outrunner

Item No:

55751 XM2223EA-10 2850 RPM/V 21g 98W
55752 XM2223EA-13 2200 RPM/V 21g 82W
55753 XM2223EA-17 1700 RPM/V 21g 64W
55754 XM2227EA-10 1720 RPM/V 28g 103W
55755 XM2227EA-12 1440 RPM/V 28g 88W
55756 XM2227EA-15 1150 RPM/V 28g 74W

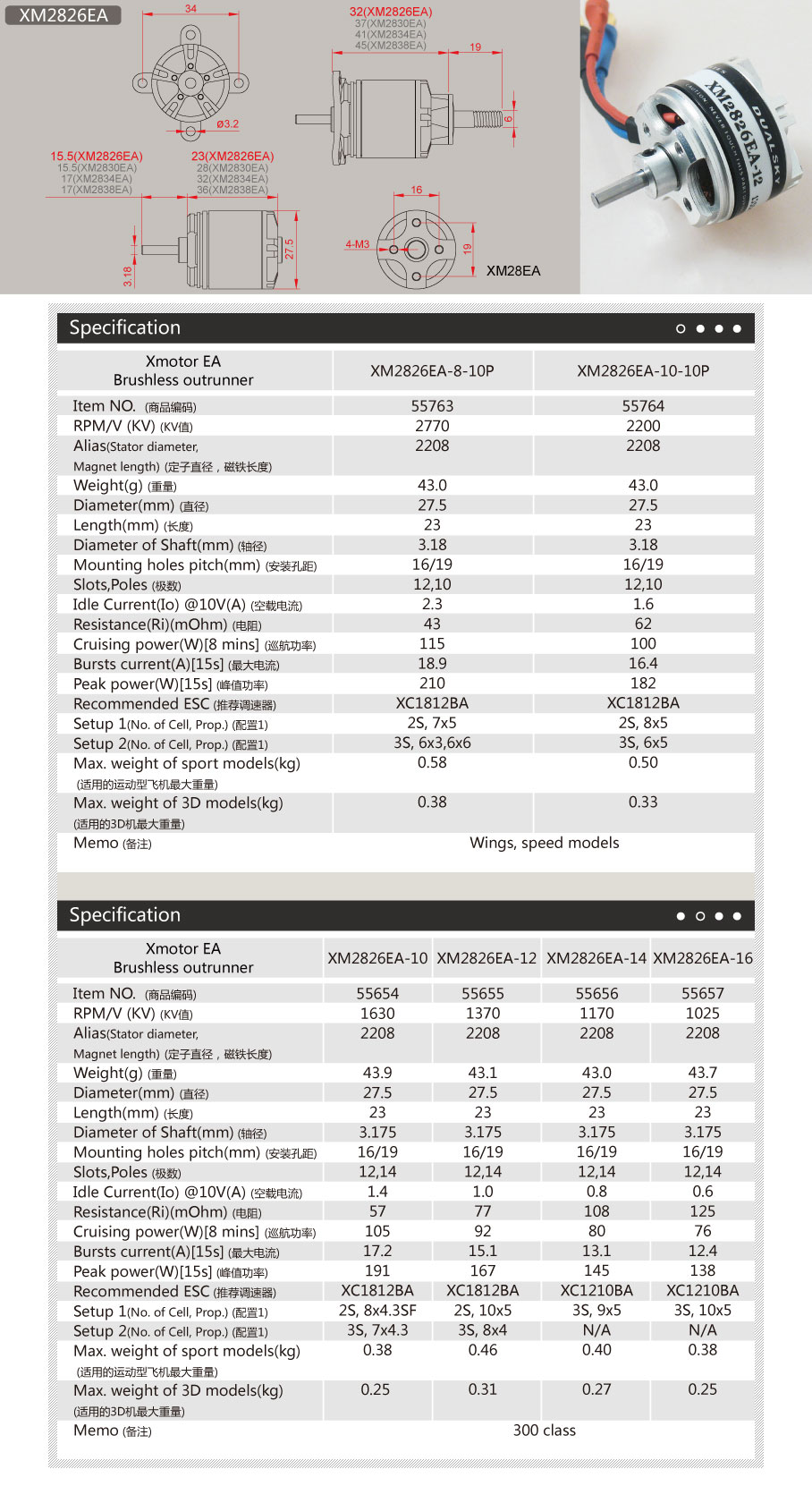

55763
XM2826EA-8-10P
2770 RPM/V 43g 210W
55764 XM2826EA-10-10P 2200 RPM/V 43g 182W
55654 XM2826EA-10 1630 RPM/V 44g 137W
55655 XM2826EA-12 1370 RPM/V 43g 167W
55656 XM2826EA-14 1170 RPM/V 43g 145W
55657 XM2826EA-16 1025 RPM/V 44g 138W

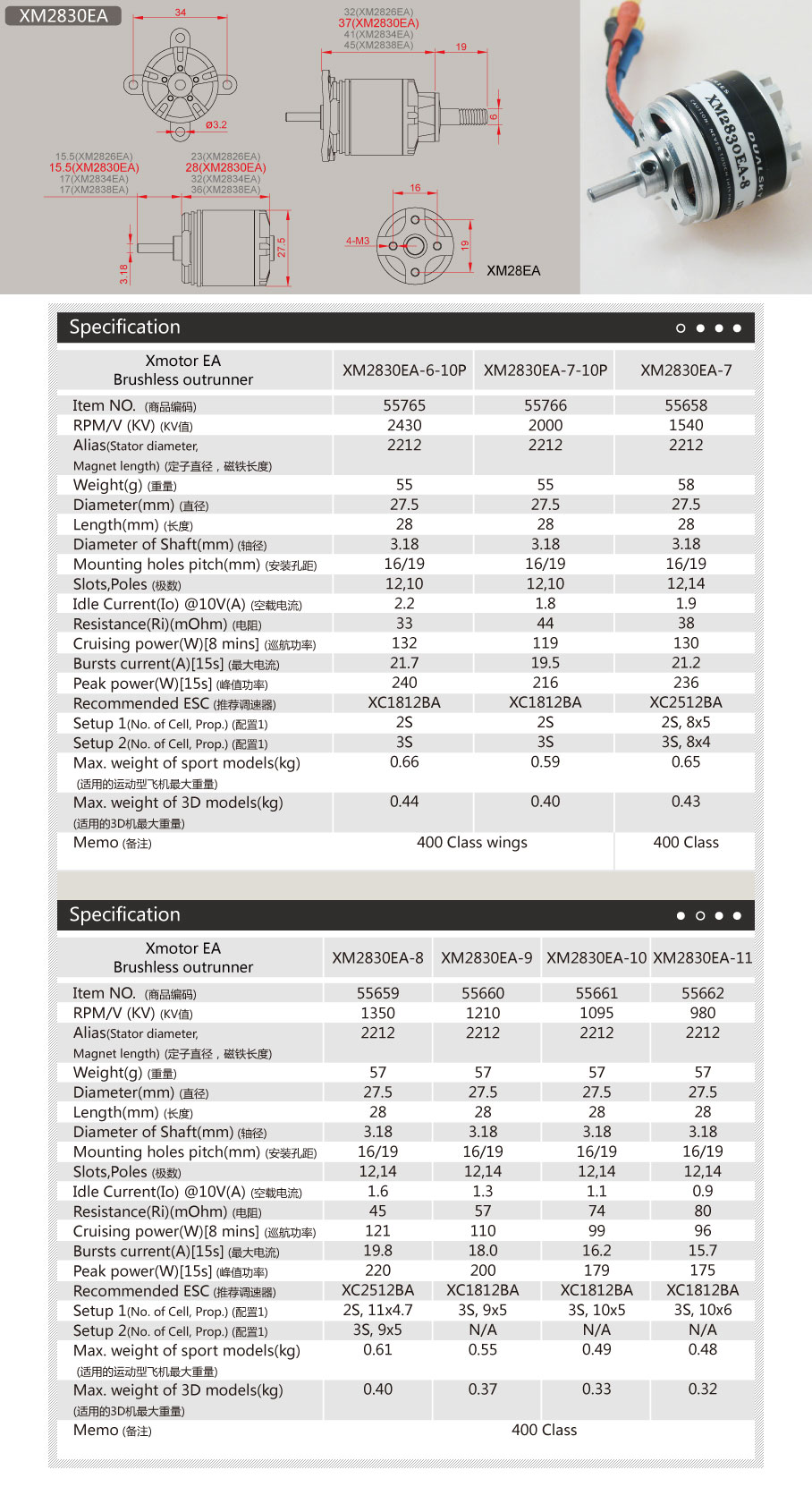

55765
XM2830EA-6-10P
2430 RPM/V 55g 240W
55766 XM2830EA-7-10P 2000 RPM/V 55g 216W
55658 XM2830EA-7 1540 RPM/V 58g 171W
55659 XM2830EA-8 1350 RPM/V 57g 220W
55660 XM2830EA-9 1210 RPM/V 57g 200W
55661 XM2830EA-10 1095 RPM/V 57g 179W
55662 XM2830EA-11 980 RPM/V 57g 175W
55663 XM2834EA-6 1360 RPM/V 71g 285W
55664 XM2834EA-7 1160 RPM/V 70g 250W
55665 XM2834EA-8 1010 RPM/V 70g 229W
55666 XM2834EA-9 915 RPM/V 69g 203W

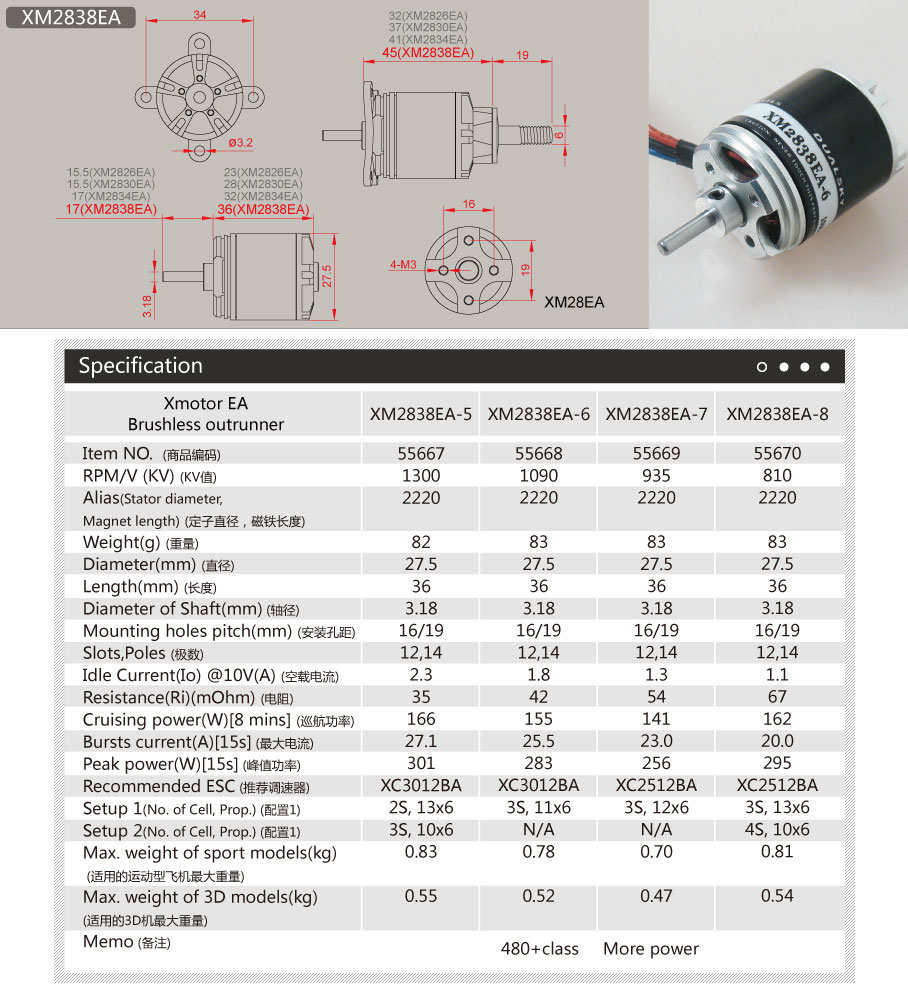

55667 XM2838EA-5 1300 RPM/V 82g 301W
55668 XM2838EA-6 1090 RPM/V 83g 283W
55669 XM2838EA-7 935 RPM/V 83g 256W
55670 XM2838EA-8 810 RPM/V 83g 295W

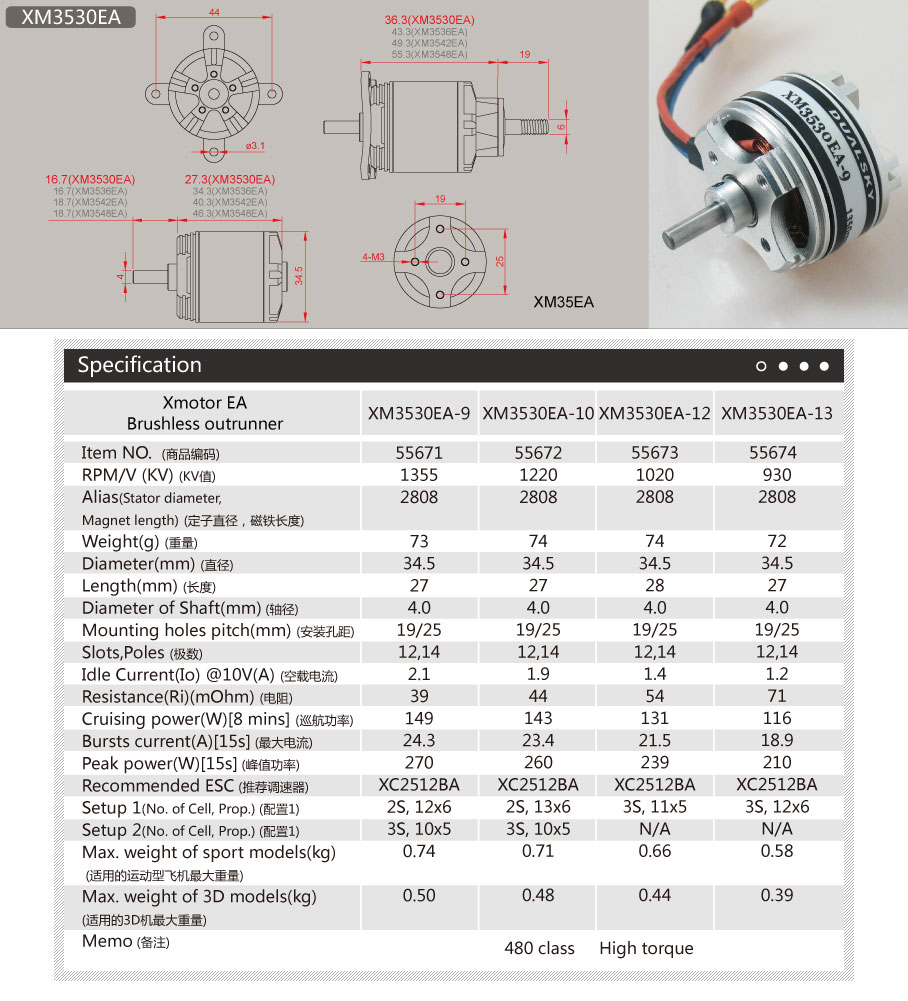

55671 XM3530EA-9 1355 RPM/V 73g 270W
55672 XM3530EA-10 1220 RPM/V 74g 260W
55673 XM3530EA-12 1020 RPM/V 74g 239W
55674 XM3530EA-13 930 RPM/V 72g 210W

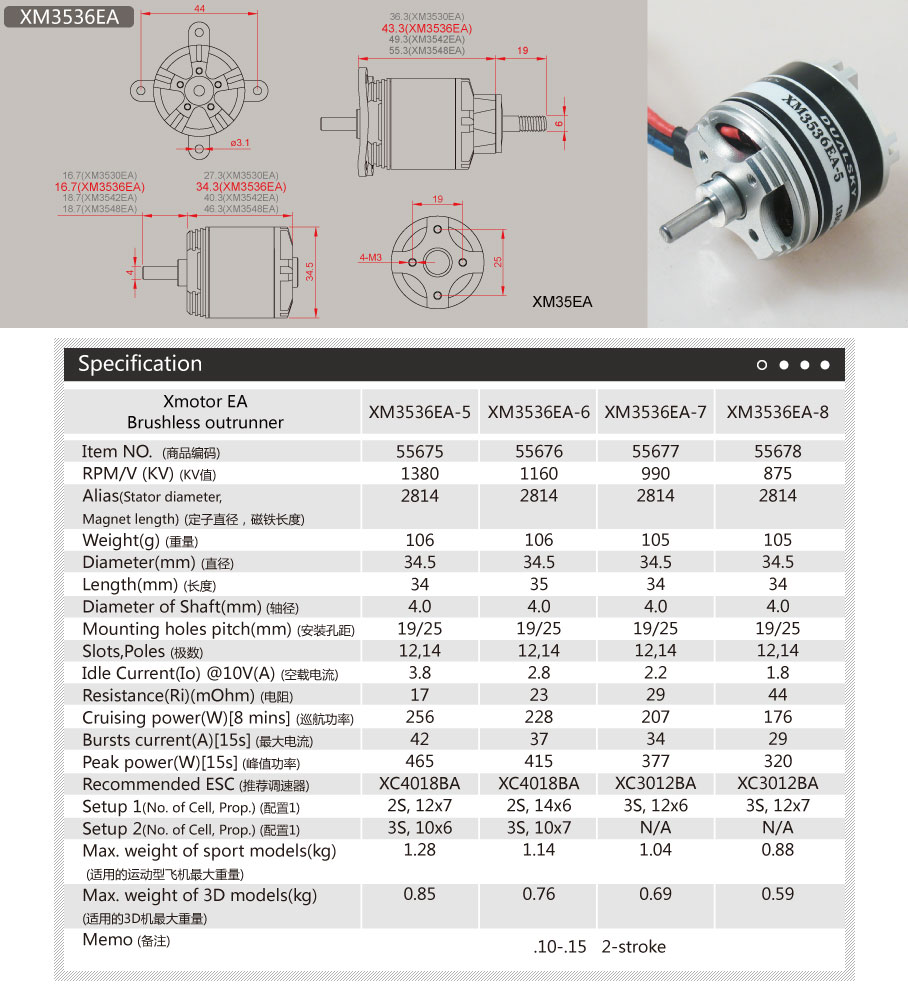

55675 XM3536EA-5 1380 RPM/V 106g 341W
55676 XM3536EA-6 1160 RPM/V 106g 415W
55677 XM3536EA-7 990 RPM/V 105g 377W
55678 XM3536EA-8 875 RPM/V 105g 320W
55679 XM3542EA-4 1180 RPM/V 140g 581W
55680 XM3542EA-5 950 RPM/V 140g 502W
55681 XM3542EA-6 790 RPM/V 140g 548W

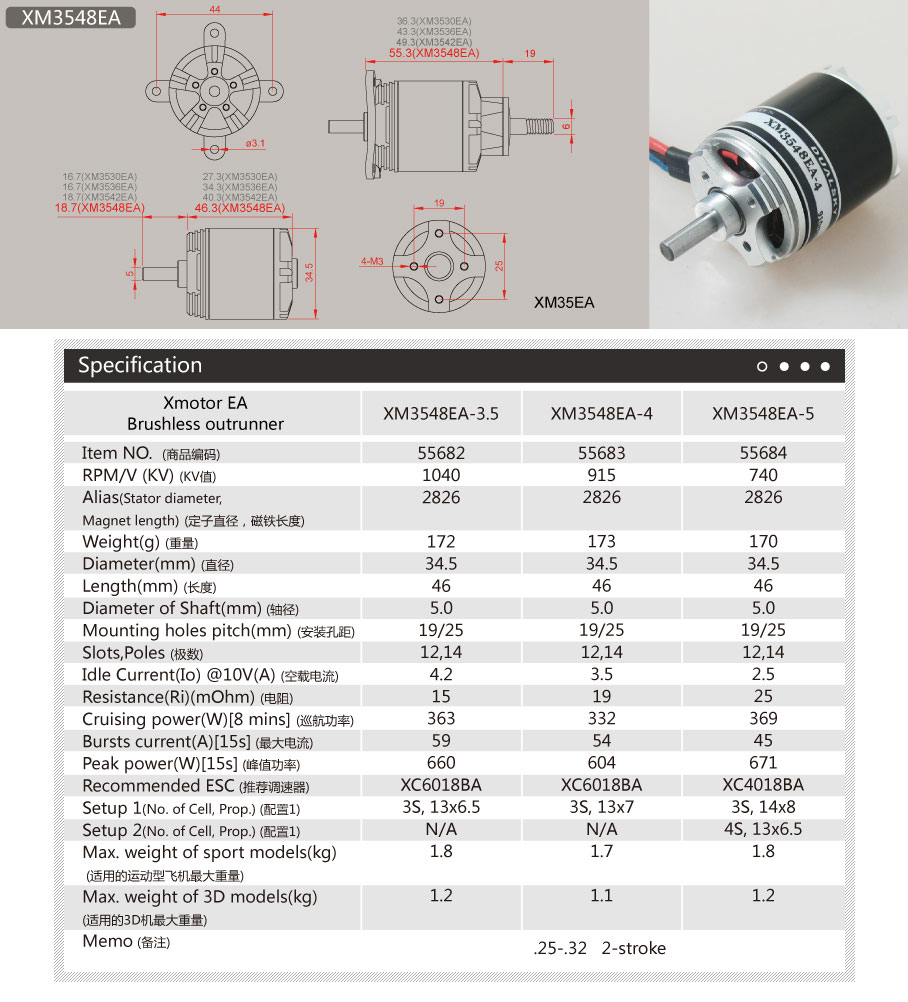

55682 XM3548EA-3.5 1040 RPM/V 172g 660W
55683 XM3548EA-4 915 RPM/V 173g 604W
55684 XM3548EA-5 740 RPM/V 170g 671W

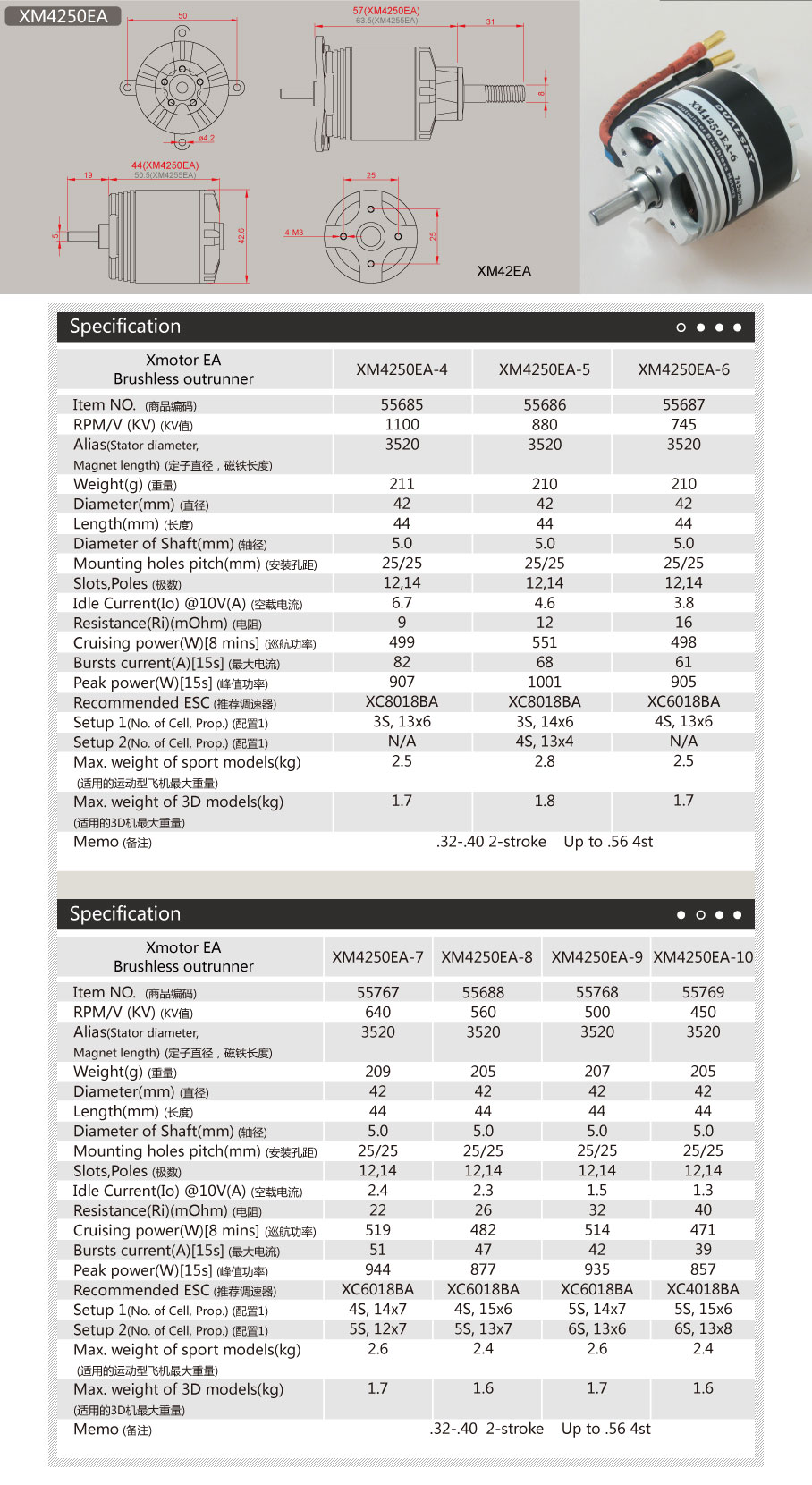

55685 XM4250EA-4 1100 RPM/V 211g 907W
55686 XM4250EA-5 880 RPM/V 210g 1001W
55687 XM4250EA-6 745 RPM/V 210g 905W
55767 XM4250EA-7 640 RPM/V 209g 944W
55688 XM4250EA-8 560 RPM/V 205g 877W
55768 XM4250EA-9 500 RPM/V 207g 935W
55769 XM4250EA-10 450 RPM/V 205g 857W

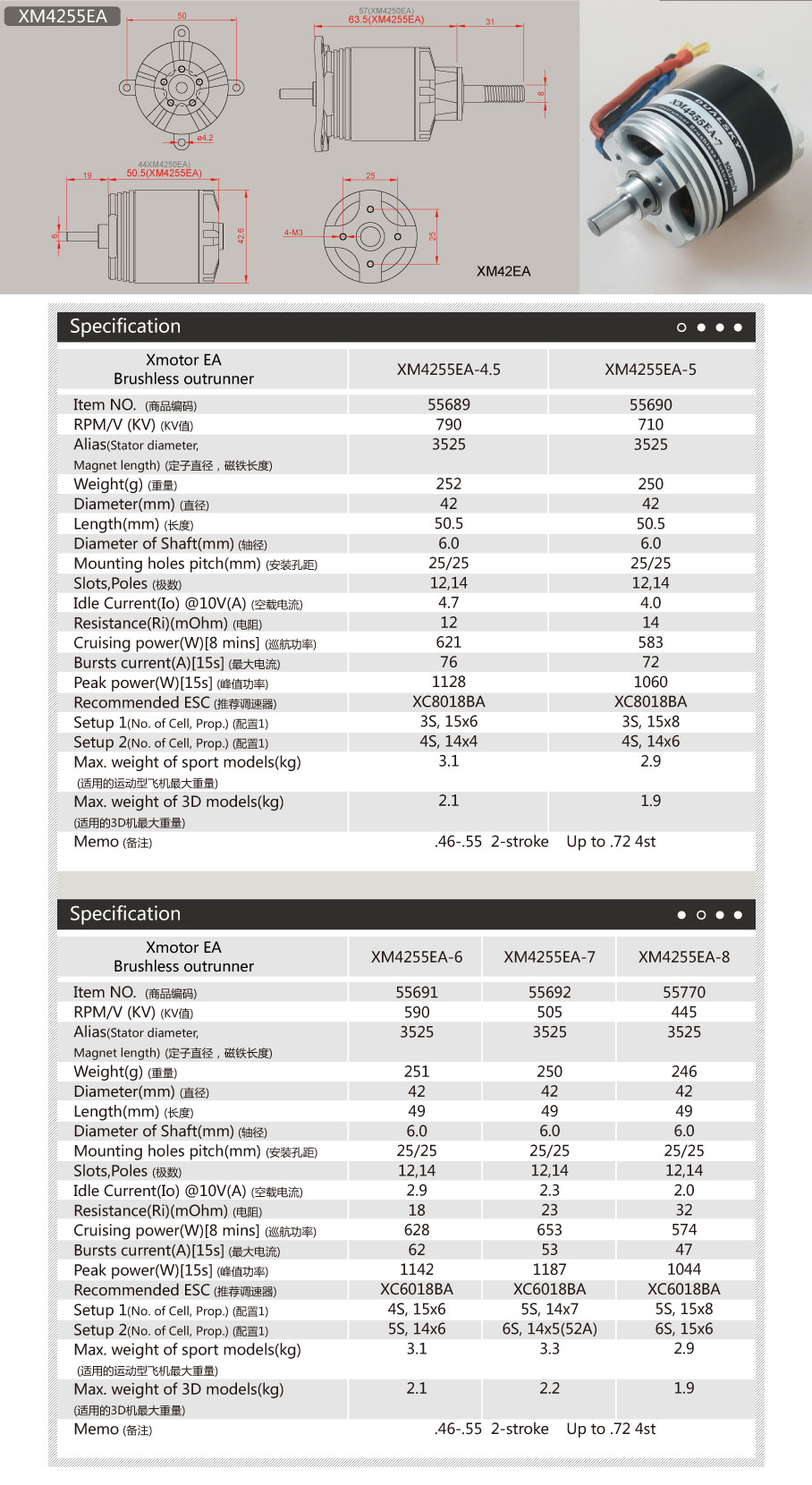

55689 XM4255EA-4.5 790 RPM/V 252g 1128W
55690 XM4255EA-5 710 RPM/V 250g 1060W
55691 XM4255EA-6 590 RPM/V 251g 1142W
55692 XM4255EA-7 505 RPM/V 250g 1187W
55770 XM4255EA-8 445 RPM/V 246g 1044W

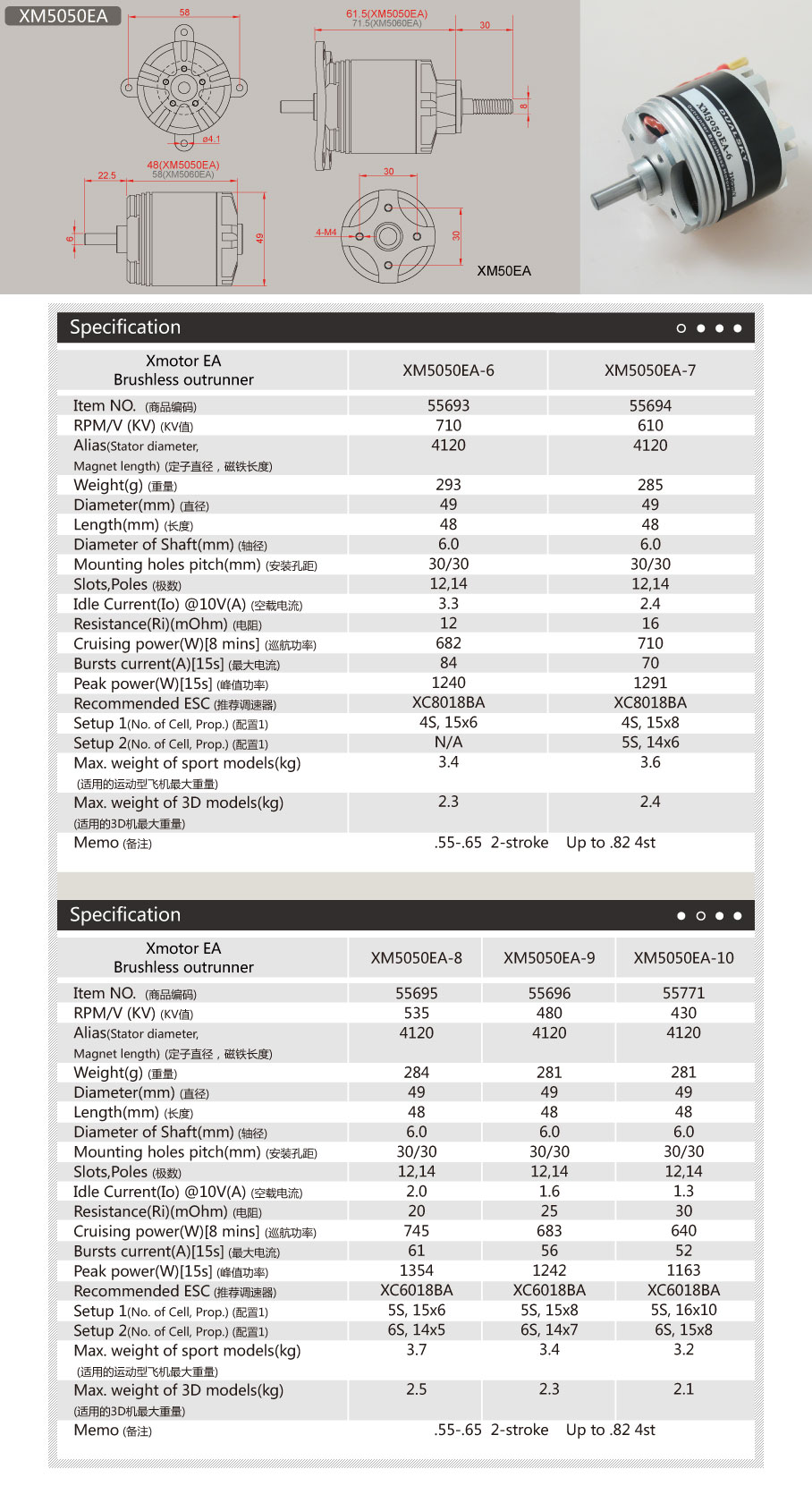

55693 XM5050EA-6 710 RPM/V 293g 1240W
55694 XM5050EA-7 610 RPM/V 285g 1291W
55695 XM5050EA-8 535 RPM/V 284g 1354W
55696 XM5050EA-9 480 RPM/V 281g 1242W
55771 XM5050EA-10 430 RPM/V 281g 1163W

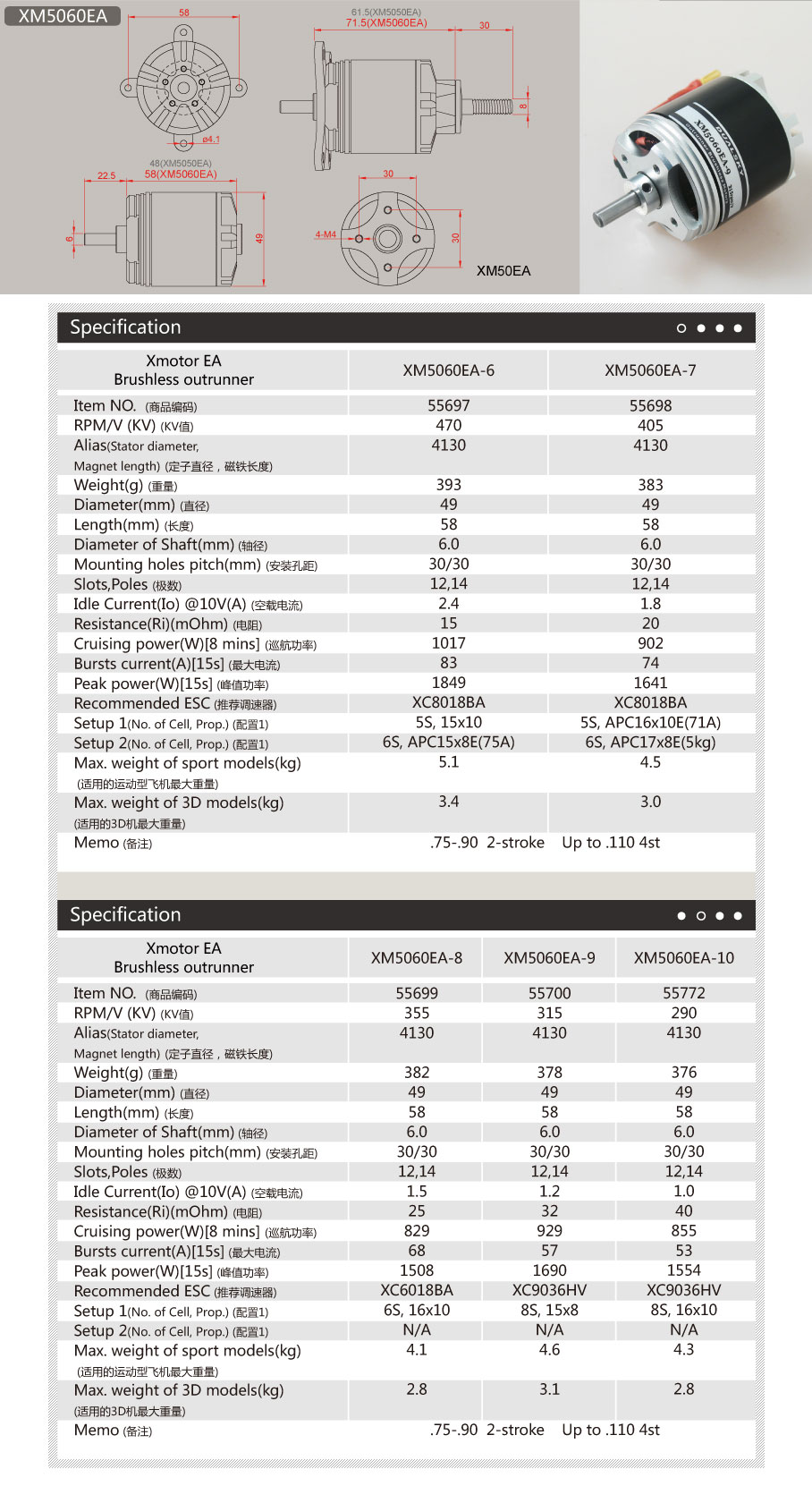

55697 XM5060EA-6 470 RPM/V 393g 1849W
55698 XM5060EA-7 405 RPM/V 383g 1641W
55699 XM5060EA-8 355 RPM/V 382g 1508W
55700 XM5060EA-9 315 RPM/V 378g 1690W
55772 XM5060EA-10 290 RPM/V 376g 1554W

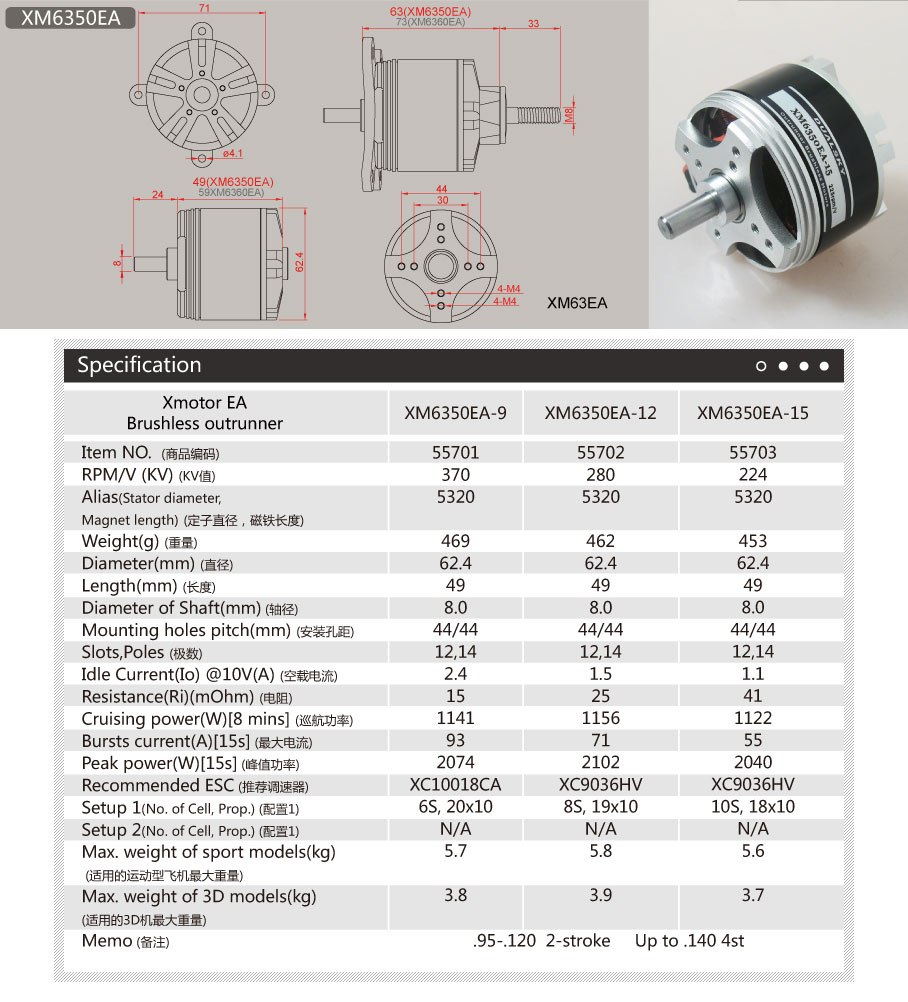

55701 XM6350EA-9 370 RPM/V 469g 2074W
55702 XM6350EA-12 280 RPM/V 462g 2102W
55703 XM6350EA-15 224 RPM/V 453g 2040W

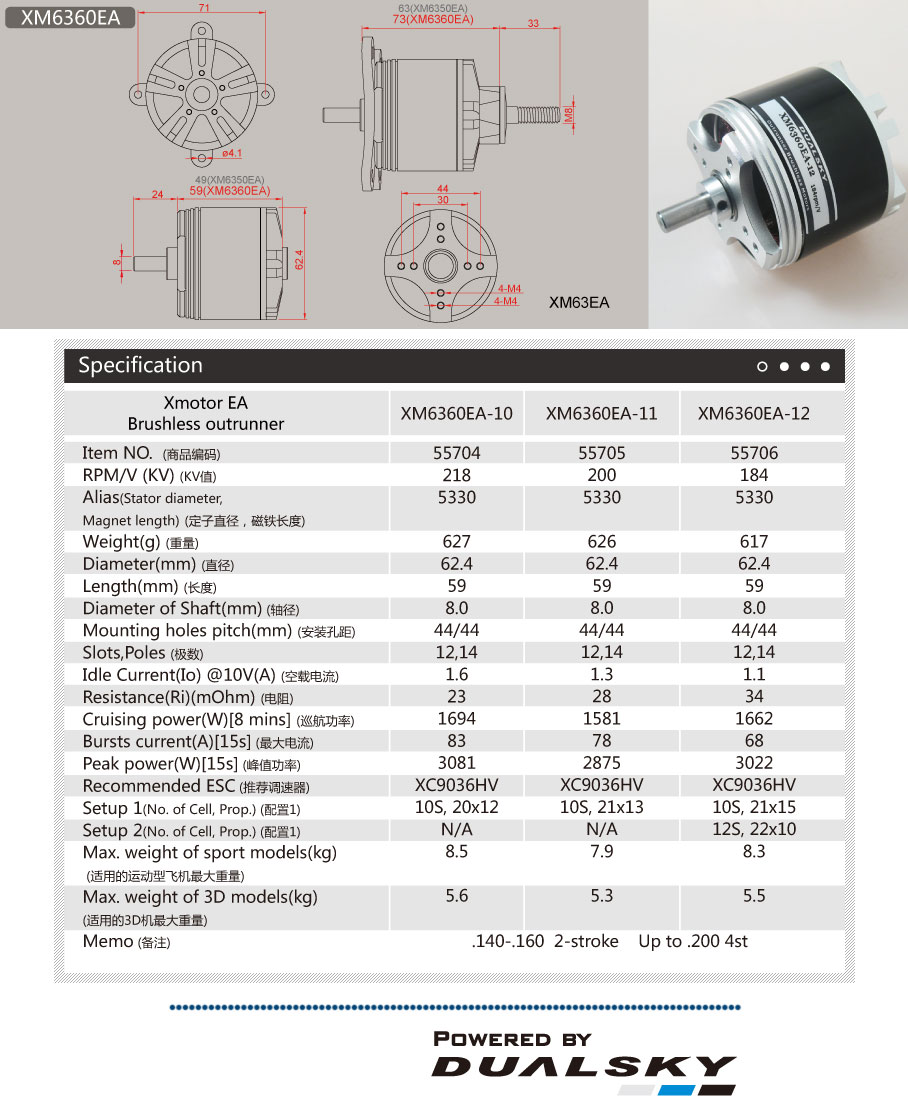

55704 XM6360EA-10 218 RPM/V 627g 3081W
55705 XM6360EA-11 200 RPM/V 626g 2875W
55706 XM6360EA-12 184 RPM/V 617g 3022W
