2nd Generation GA Series

Product Description:

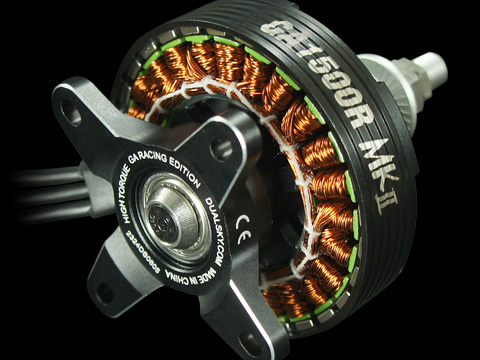

GA motor - For giant RC airplane series

High torque design, diameter 90mm outrunner
Using 12S and 10S Lipo battery
Replacing 60 cc gasoline engine
Applied up to 9 kg 3D model
Environmental friendly product

Key features:
Dualsky biggest RC motor we have ever produced.
Maximum output: 6000w (9.2 HP)
New modular light weight structure
Dualsky 28 poles efficient structure
Driven directly by 90 mm diameter rotor without gearing box
Working quietly, no CO2 emission and a wonderful alternative to 50-60 cc petrol engine
Suitable for less than 9kg 3D and aerobatic models
And less than 14kg fixed wings UAV model planes

Using the best 0.2 mm silicon steel sheet raw materials
   Using high grade Neodymium magnet which is resistant to high temperature
Lower IR winding wire to decrease the temperature remarkably after long-time working
   Dismountable stator, easier to maintain
   12 mm diameter high strength shaft (external 10 mm diameter)
Imported over-sized NSK bearings, low noise and ultra-long life
   Long shaft(10mm) and no need to drill the propeller
Propeller fixed with two screws
   Pre-drill a 5 mm spinner fixing hole at the top of shaft
   High-precision rotor, dynamically balanced on both sides, lowest resonance in RC industry
New stator cover protecting the power wires
Integrated motor mount
   Beautiful and precise with star appearance and second processing
   Laser marking, highlighting grades, and etched with the factory serial number
Come with DB6 plug and motor extension

Powerful configuration: 24 x10 propeller, 5000-6000mAh 12s, 35C Lipo packs
Cruising configuration: 22 -24 inches propeller, 10000mAh 12S, 15C Lipo packs
Recommended to use Dualsky high voltage ESC with continuous current 130A
   100% inspection in Shanghai Dualsky factory before shipment.


  • Description
  • Item Number
  • Download

2nd Generation

GA Series


GA800.7

GA800.11






RPM/V


850 RPM/V

550 RPM/V

Weight of sports airplane


Up to 2.0 kg

Up to 2.2 kg

Weight of 3D airplane


1.4 kg to 1.6 kg

1.5 kg to 1.8 kg

Applications


Designed for .30E class

3D airplane(48"-52" wingspan)

For .30E to .40E class

3D airplane(upto 55" wingspan)

2nd Generation

GA Series


GA1500.5

GA2000.4

GA3000.5

GA3000.7

GA3000.10









RPM/V


500 RPM/V

400 RPM/V

380 RPM/V

270 RPM/V

180 RPM/V

Weight of sports airplane


Up to 4.5 kg

Up to 6.0 kg

Up to 7.5 kg

Up to 7.5 kg

Up to 8 kg

Weight of 3D airplane


Up to 3.0 kg

Up to 3.7 kg

Up to 5.0 kg

Up to 5.0 kg

Up to 5.5 kg

Applications


Designed for 70E class

3D airplane(60-63" wingspan)

For 20cc class(equivalent to .110E)

3D airplane(upto 70" wingspan)

For 30cc class(equivalent to .140E)

3D airplane(upto 74" wingspan)

For 30cc class(equivalent to .140E)

3D airplane(upto 74" wingspan)

For 30cc class(equivalent to .140E)

3D airplane(upto 74" wingspan)

2nd Generation

GA Series


GA4000.6

GA4000.7

GA6000.8/GA6000.8S

GA6000.9/GA6000.9S








RPM/V


210 RPM/V

180 RPM/V

180 RPM/V

160 RPM/V

Weight of sports airplane


Up to 10 kg

Up to 10.5 kg

Up to 17 kg

Up to 17KG

Weight of 3D airplane


Up to 6.5 kg

Up to 6.8 kg

Up to 10 kg

Up to 10KG

Applications


Designed for 35-40cc class

3D airplanes or UAV systems.

Designed for 35-40cc class

3D airplanes or UAV systems.

Designed for 55-60cc class

3D airplanes or UAV systems.

Designed for 55-60cc class

3D or scale warbird airplanes.
