DA Competition series

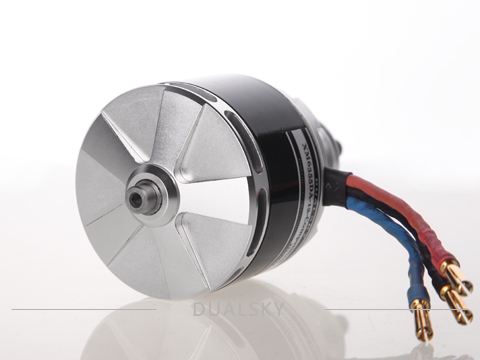

Xmotor DA Competition series brushless outrunners

New designed long shaft without C-clip Imported over-sized ball bearing Rotor dynamic balancing Specially for F3A aircraft

Product Description:

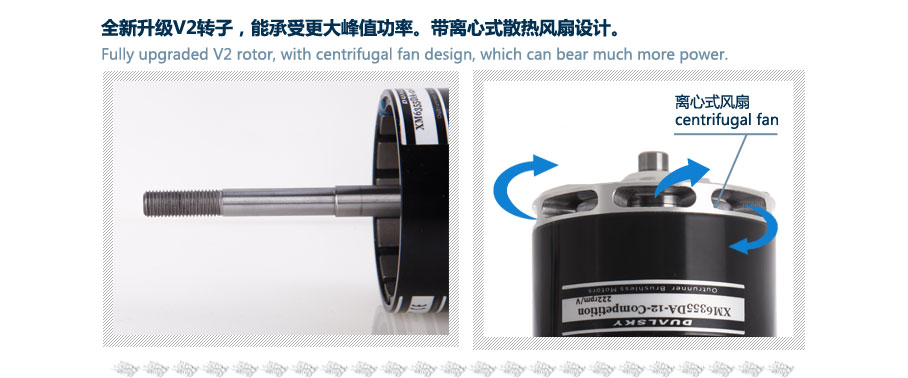

* Fully upgraded V2 rotor, with centrifugal fan design, which can bear much more power.

* Designed especially for FAI F3A and F3M, tested by several pilots.

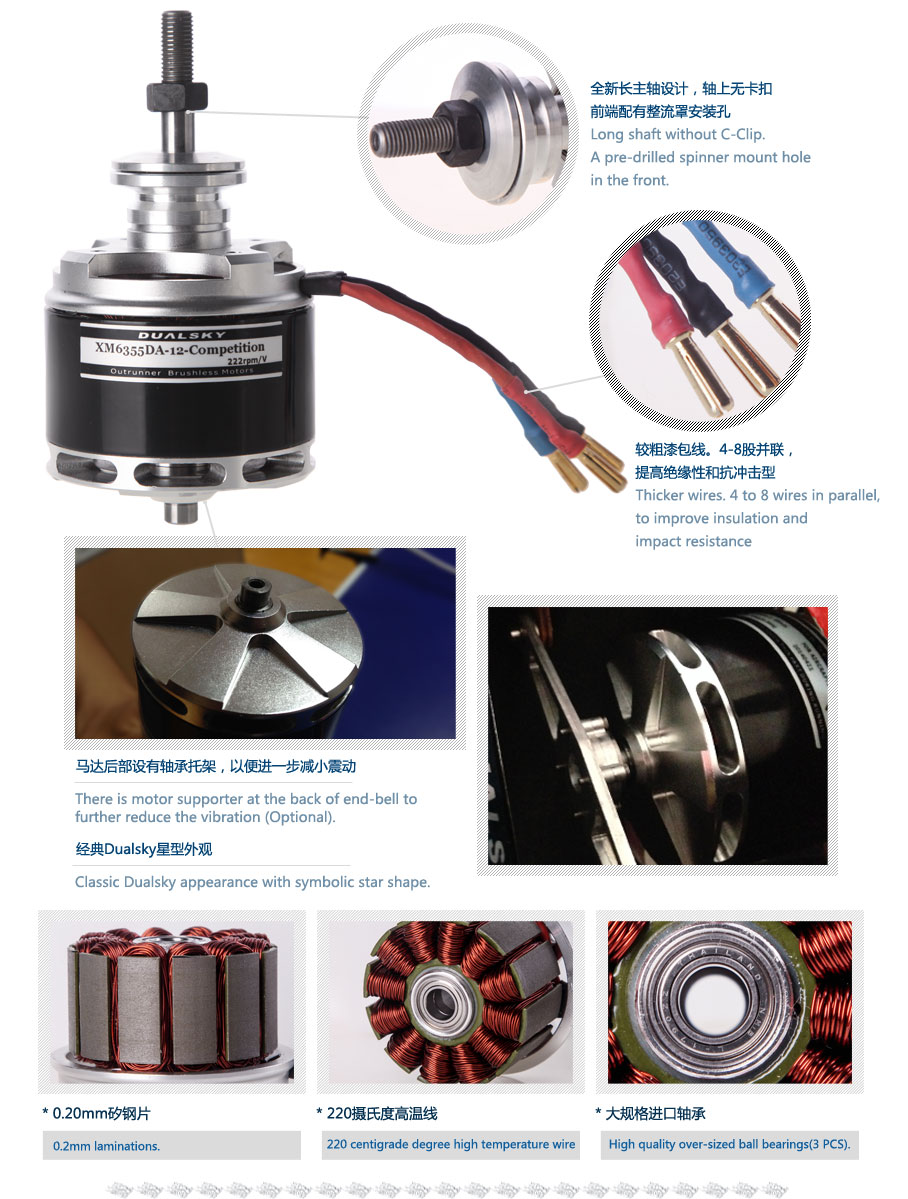

1) Long shaft without C-Clip. A pre-drilled spinner mount hole in the front.

2) High quality over-sized ball bearings(3 PCS).

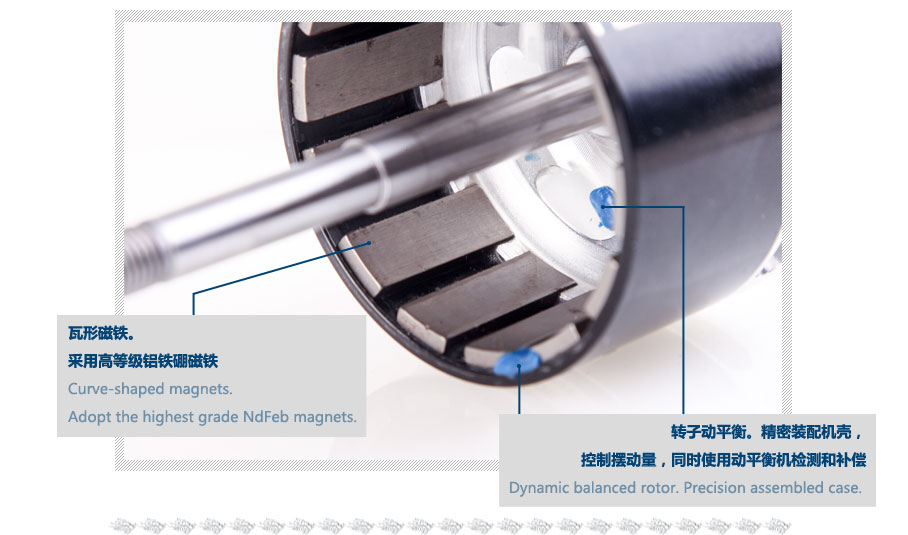

3) Dynamic balanced rotor. Precision assembled case.

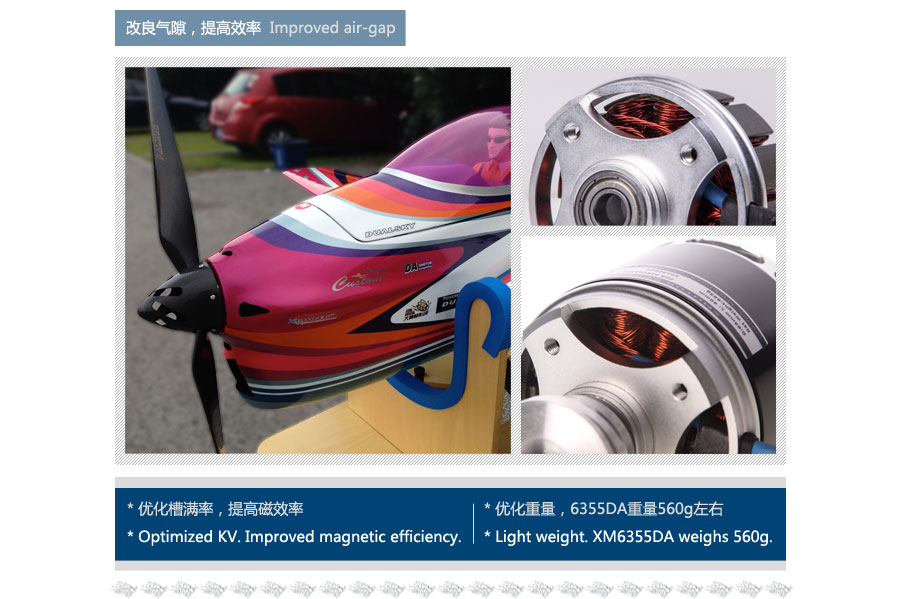

4) Improved air-gap

5) Curve-shaped magnets. Adopt the highest grade NdFeb magnets.

6) 0.2mm laminations.

7) 220 centigrade degree high temperature wire

8) Thicker wires. 4 to 8 wires in parallel, to improve insulation and impact resistance

9) Optimized      KV. Improved magnetic efficiency.

10) Light weight. XM6355DA weighs 560g.

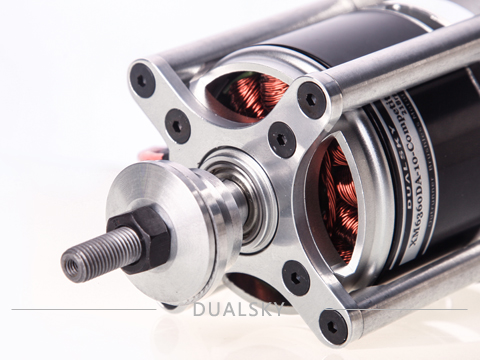

11) There is motor supporter at the back of end-bell to further reduce the vibration (Optional).

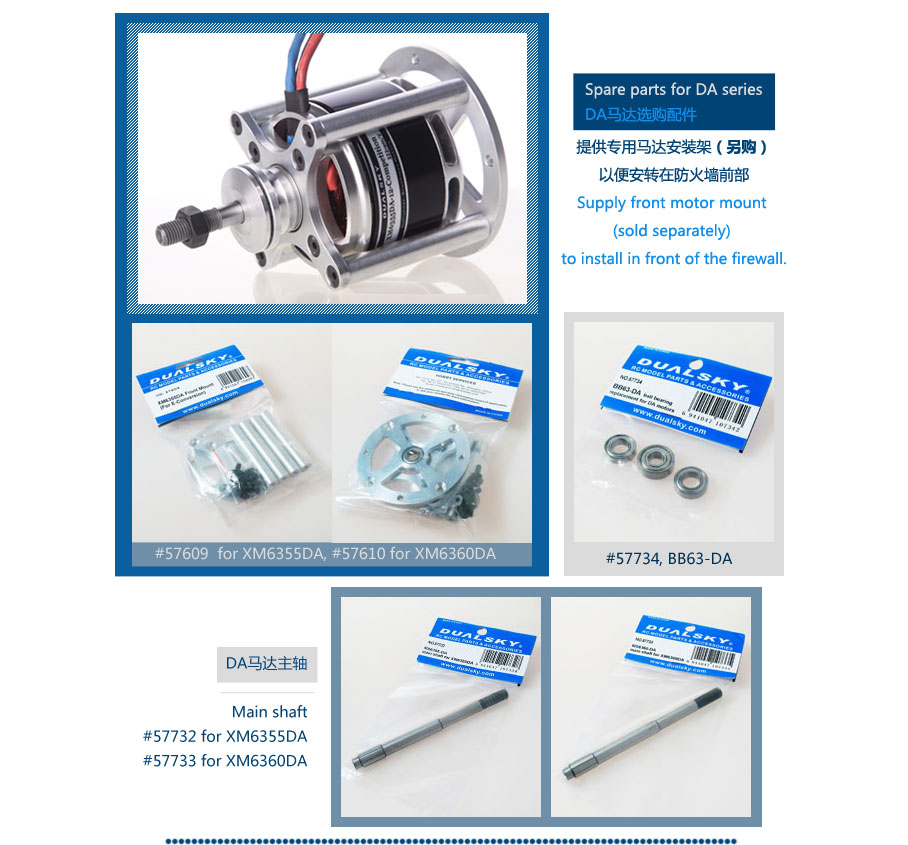

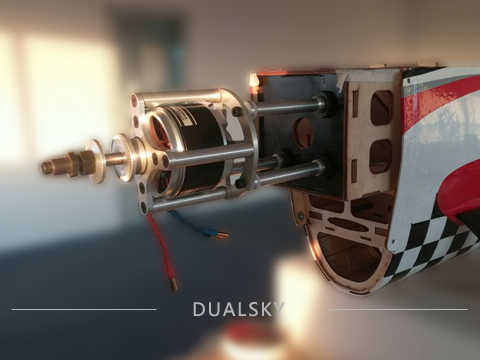

12) Supply front motor mount (sold separately) to install in front of the firewall.

13) Classic Dualsky appearance with symbolic star shape.











  • Description
  • Item Number
  • Download

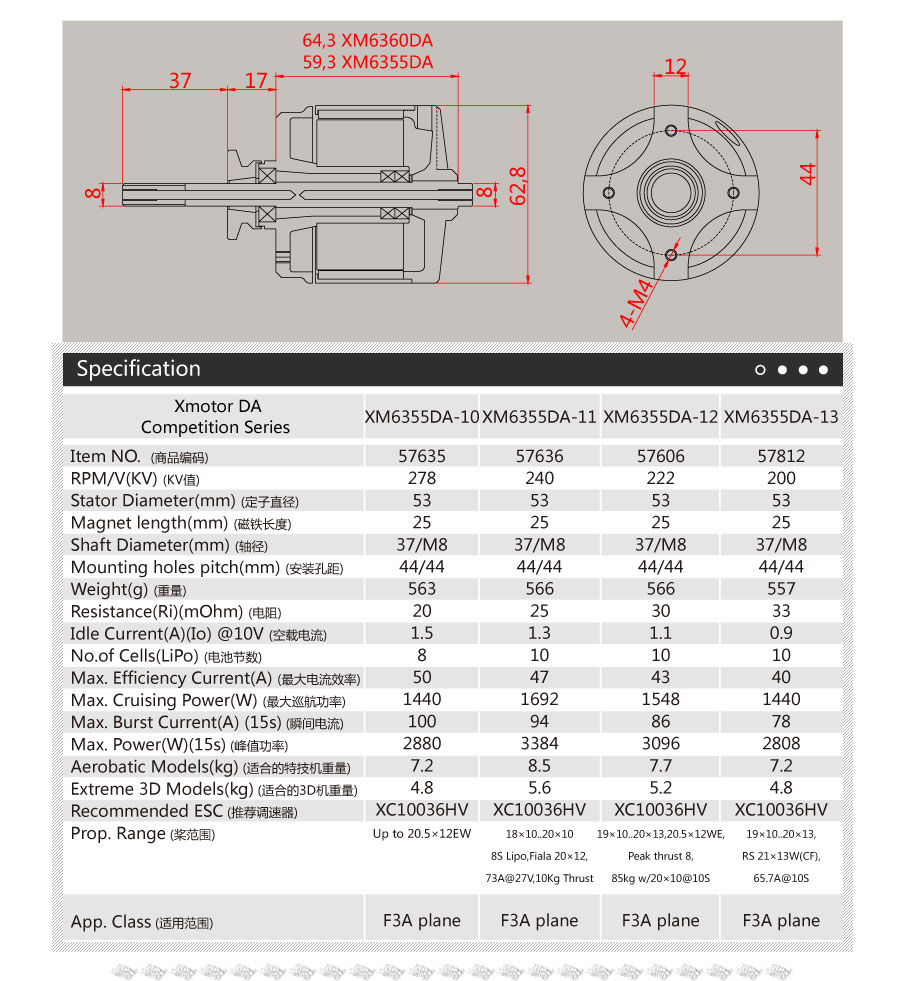

Item Name:Xmotor DA Competition series brushless outrunners

Item No:
57635 XM6355DA-10-Competition  278 RPM/V 563g
57636 XM6355DA-11-Competition 240 RPM/V 566g

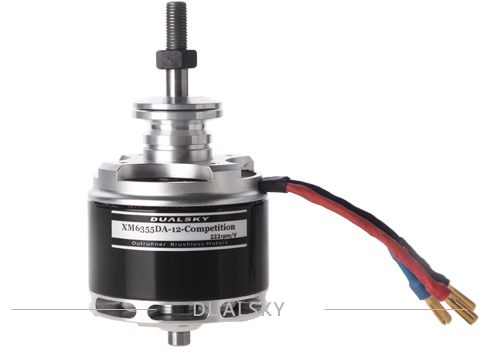

57606 XM6355DA-12-Competition 222 RPM/V 566g
57812 XM6355DA-13-Competition 200 RPM/V 566g

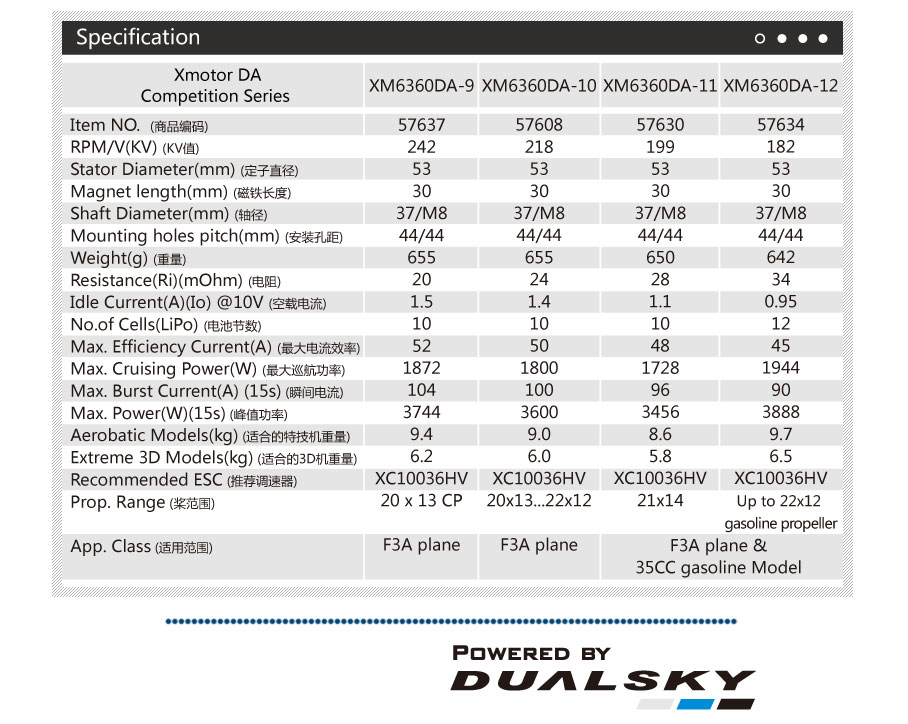

57637 XM6360DA-9-Competition 242 RPM/V 655g
57608 XM6360DA-10-Competition 218 RPM/V 655g
57630 XM6360DA-11-Competition 199 RPM/V 650g
57634 XM6360DA-12-Competition 182 RPM/V 642g
