Product Description：
25EG feature：
1.Thanks to the small diameter of 25mm, it is suitable for small diameter fuselage
with spinner diameter of 25-32mm.
2. Active cooling rotor, which is recommended to be used with turbo type spinner. (e.g. FPS_Z Series)
3.14 pole arc magnets,Japanese 0.20 mm silicon steel laminations,providing strong direct drive torque.
4.Precision rotor balancing technology,NMB bearing, capable of up to 30000 rpm.
5.Adopt 220 grade enameled wire and high temperature epoxy adhesive of the same level, with five-star overload resistance grade. (same as EA3, DA4 & GA2 Series)
6.Unique capsule type protective canister design, outrunner motor is presented
in the form of an in-runner. And the wires are out at the back end.
7.2532EG is equipped with 4mm hollow output shaft and large size front bearing, which provides outstanding impact strength.
| ITEM NUMBER | ITEM NAME | KV VALUE |
| 52164 | XM2523EG-22 | KV 2900 |
| 52165 | XM2523EG-28 | KV 2300 |
| 52166 | XM2523EG-38 | KV 1700 |

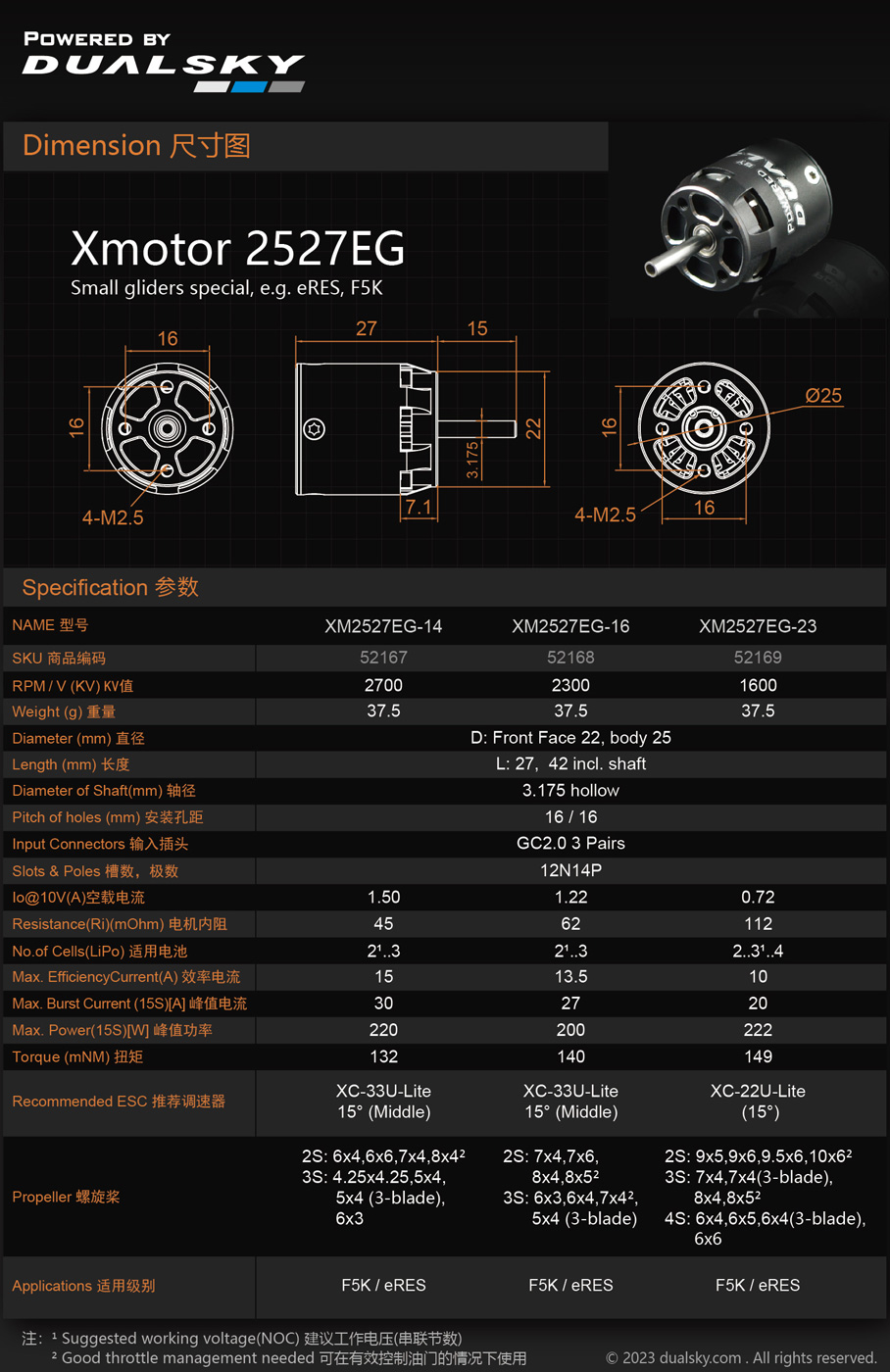

| 52167 | XM2527EG-14 | KV 2700 |
| 52168 | XM2527EG-16 | KV 2300 |
| 52169 | XM2527EG-23 | KV 1600 |
| 52170 | XM2532EG-9 | KV 2700 |
| 52171 | XM2532EG-11 | KV 2200 |
| 52172 | XM2532EG-16 | KV 1550 |
