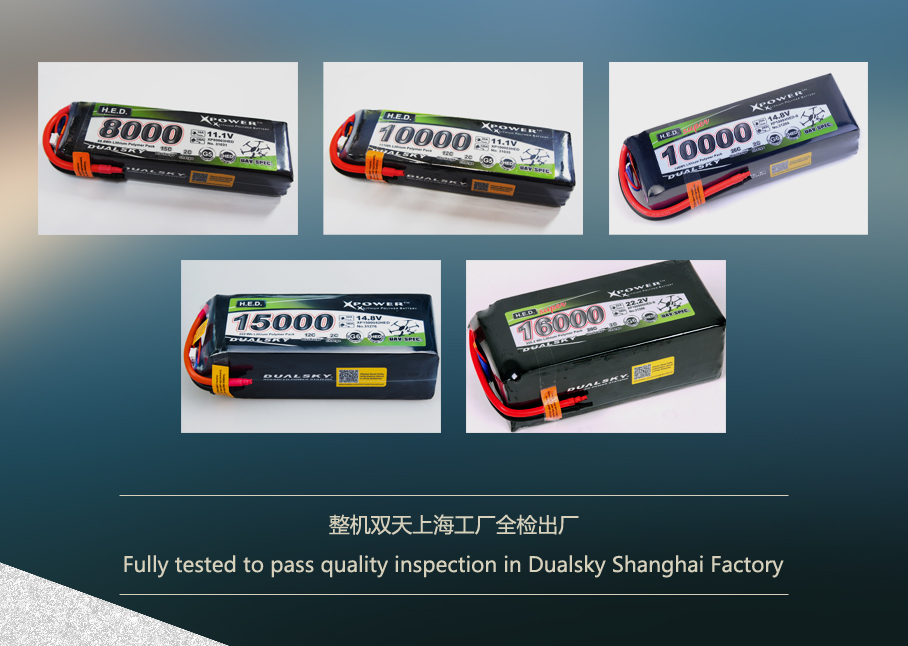

Xpower HED series High Energy Density LiPo packs light weight endurance.

Long-endurance battery for commercial UAV
Optimized the ratio between energy and weight, discharge 8C -20C
Produce by Dualsky new 6th Generation battery technology
Optimized the discharging characteristics in the low temperature and high altitude environment
Ensure 600+ times charge and discharge cycles
16000mAh 6s is suitable for Octa rotor with SLR aerial photograph


Product Description：

For UAV special

Long-endurance battery for commercial UAV
Optimized the ratio between energy and weight, discharge 8C -20C
Produce by Dualsky new 6th Generation battery technology
Optimized the discharging characteristics in the low temperature and high altitude environment
Ensure 600+ times charge and discharge cycles
16000mAh 6s is suitable for Octa rotor with SLR aerial photograph

------------------------------------------------------

Dualsky 5th Xpower battery technology

4C charge and 25C discharge
For large size aerobatic model planes and helicopter.
4600mAh 5S HED battery is the best choice for F3A competition models
6250mAh 6s(x2) is suitable for 700-800E F3C models
Super enduring, optimize the discharging capacity
Laminated structure, adopt nano coat technology with ultra-low-IR
Keep as lightest at the same grade
Ensure 300+ times cycles charge and discharge without attenuation
The key materials are imported from Japan

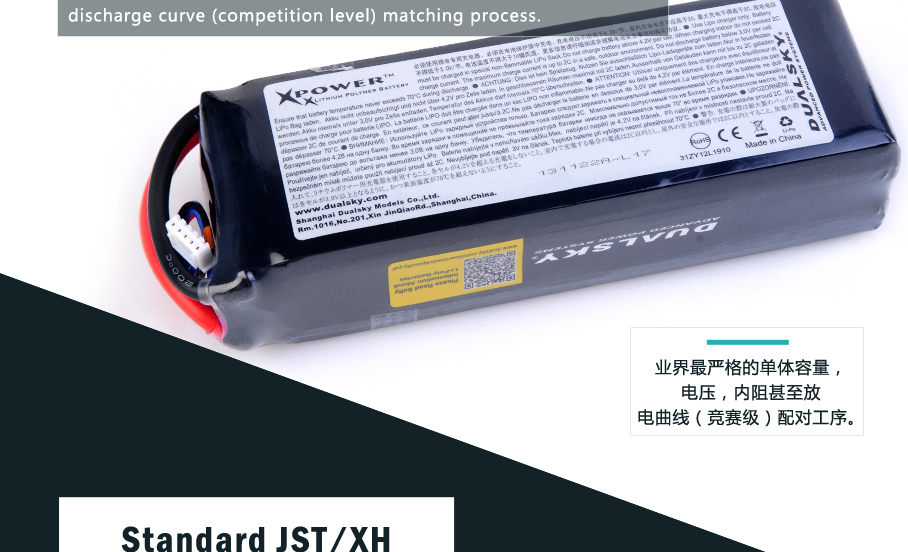

The most stringent cell capacity, voltage, resistance and even discharge curve(competition level) matching process

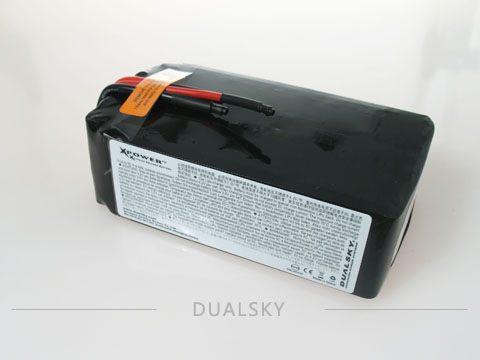

Light and durable with three layers soft package
High quality silver silicon wires and the roots are protected with tubes
Pre-soldered DC3 connectors, It is plug and play with Dualsky power components

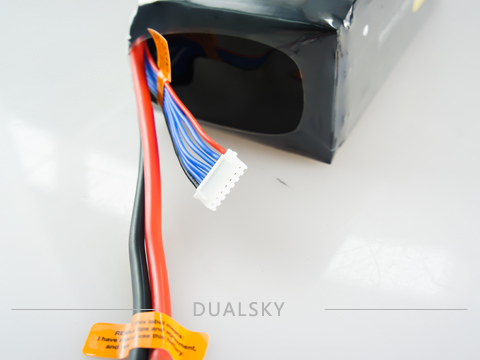

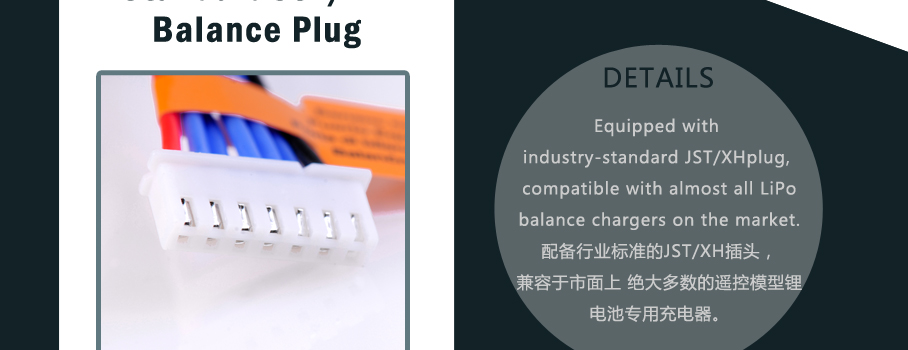

Compatible with XH balance port
Produce in accordance with stringent export quality.

  • Description
  • Item Number
  • Download

Item Name：G5 Xpower HED series -- High Energy Density LiPo packs, 25C/4C

Item No：
Item NO. Description Capacity
(mAh) 		Voltage
(V) 		Energy
(Wh) 		Number of Cell Weight
(g)* 		Dimensions
L x W x T (mm) 		Wiring & Connector Max
Charge 		Max Cont.
Discharge

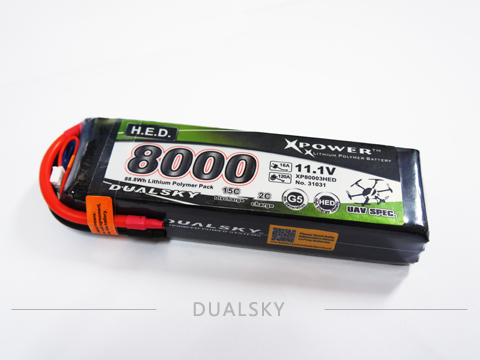

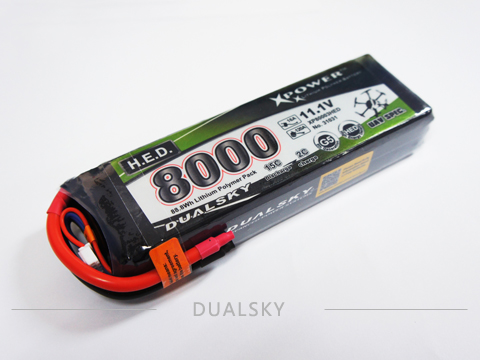

31031 XP80003HED-S 8000 11.1 88.8  3S1P 600  178x58x26 10AWG 2C 20C
31032 XP80004HED-S 8000 14.8 118.4  4S1P 780  178x58x34 10AWG 2C 20C
31033 XP80005HED-S 8000 18.5 148.0  5S1P 970  178x58x41 10AWG 2C 20C
31034 XP80006HED-S 8000 22.2 177.6  6S1P 1100  178x58x48 10AWG 2C 20C

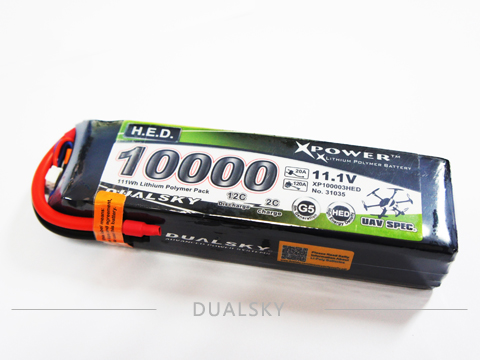

31263 XP100003HED-S 10000 11.1 111.0  3S1P 680  175x61x30 10AWG 2C 20C
31264 XP100004HED-S 10000 14.8 148.0  4S1P 900  175x62x40 10AWG 2C 20C
31265 XP100005HED-S 10000 18.5 185.0  5S1P 1120  175x62x50 10AWG 2C 20C
31266 XP100006HED-S 10000 22.2 222.0  6S1P 1340  175x62x60 10AWG 2C 20C
31283 XP160003HED-S,  16000 11.1 177.6  3S1P 1050g 178×86×34 10AWG 2C 20C
31284 XP160004HED-S,  16000 14.8 236.8  4S1P 1380g 178×86×45 10AWG 2C 20C
31285 XP160005HED-S,  16000 18.5 296.0  5S1P 1700g 178×86×56 10AWG 2C 20C
31286 XP160006HED-S, , high power 16000 22.2 355.2  6S1P 2050g 178×86×67 10AWG 2C 20C
