Product Description：

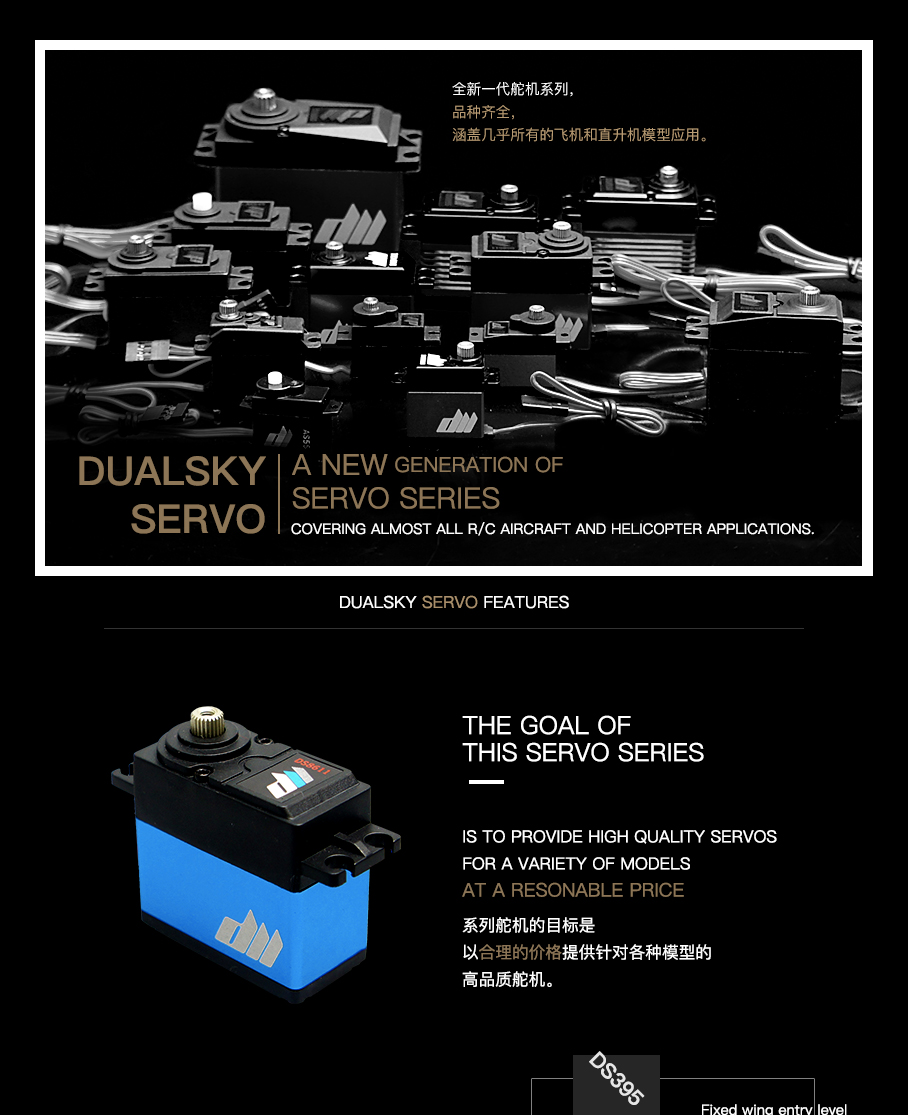

1. A new generation of servo series, covering almost all aircraft and helicopter model applications.
2. The goal of this servo series is to provide high quality servos for a variety of models at a reasonable price.

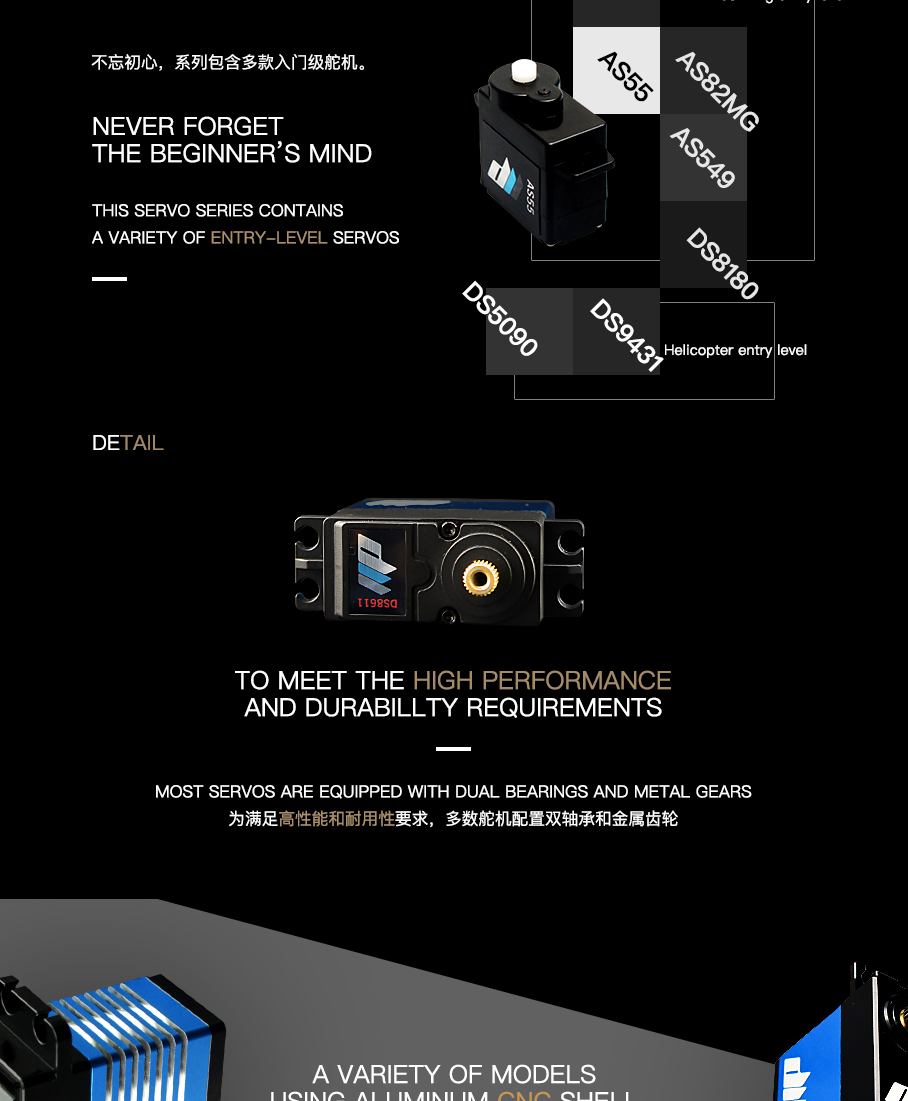

3. Never forget the beginner’s mind, this servo series contains a variety of entry-level servos.
4. To meet the high performance and durability requirements, most servos are equipped with dual bearings and metal gears

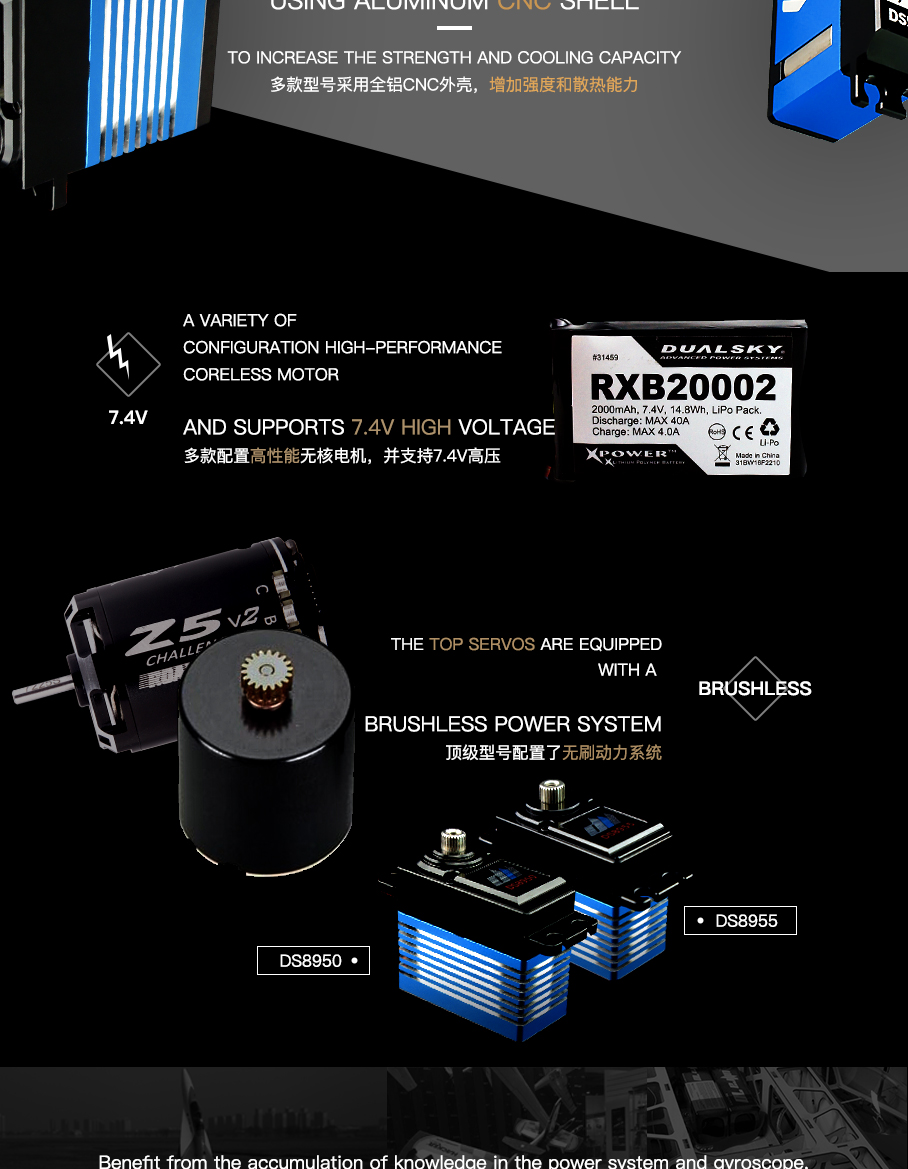

5. A variety of models using aluminum CNC shell, to increase the strength and cooling capacity
6. A variety of configuration high-performance coreless motor, and supports 7.4V high voltage
7. The top servos are equipped with a brushless power system
8. Benefit from the accumulation of knowledge in the power system and gyroscope, optimized drive to improve accurate and solid neutral performance, while the servo power consumption is lower
9. The servos are tested over thousands times, fully verify that the components have reached the design requirements
10. Lengthened servo plates, suitable for 3D and large aircraft

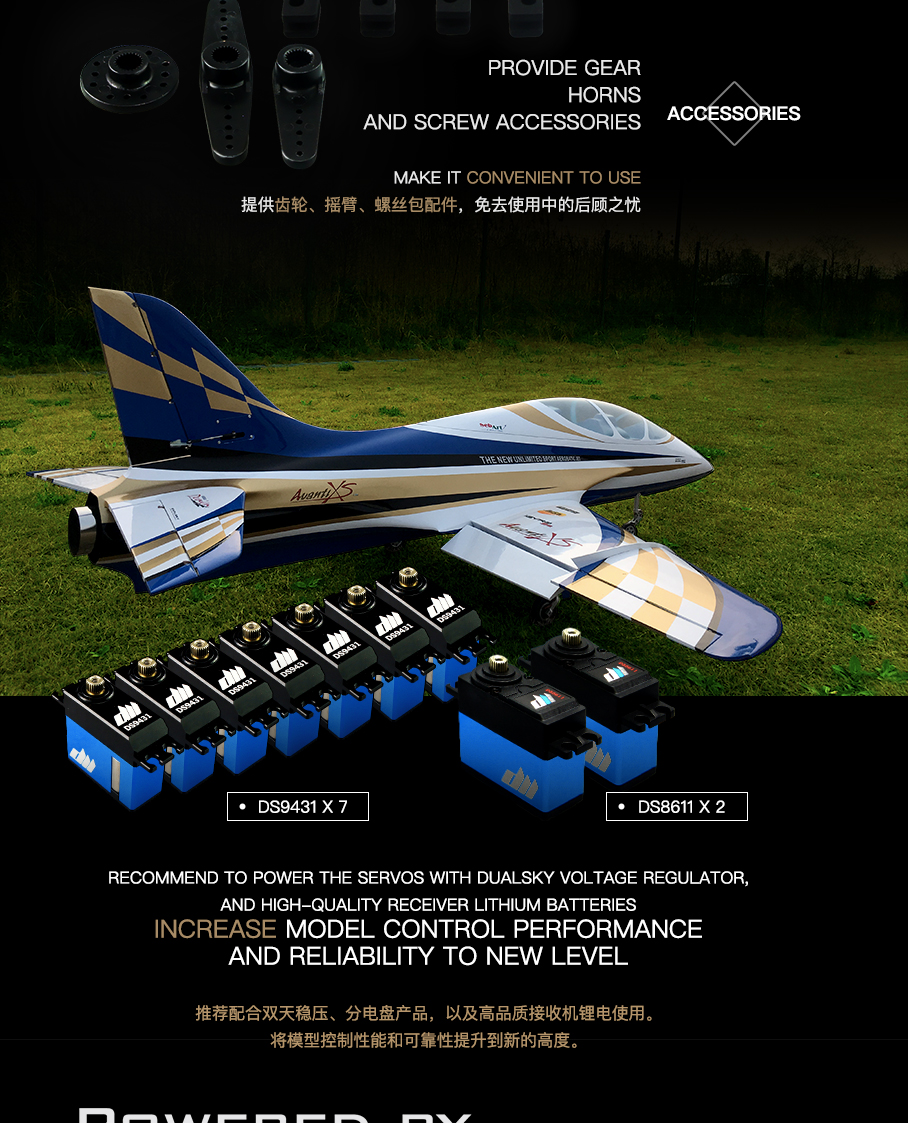

11. Provide gear, Horns and screw accessories, make it convenient to use
12. Recommend to power the servos with Dualsky voltage regulator, and high-quality receiver lithium batteries. Increase model control performance and reliability to new level.
Servos applications
1) Fixed wing entry level: AS55, DS395, AS82MG, AS549, DS8180
2) Fixed wing advanced: DS65, DS5090, DS199, DS589, DS8611
3) 3D, turbojet master: DS9431, DS8611, DS8950, DS8955
4) F3A acrobatic: DS5090, DS9431, DS8611
5) Gliders: DS65, DS5090, DS199
6) Helicopter entry level: DS5090, DS9431
7) Helicopter master: DS8950, DS8955
8) Off-road car: DS8611, DS8950, DS9650
|

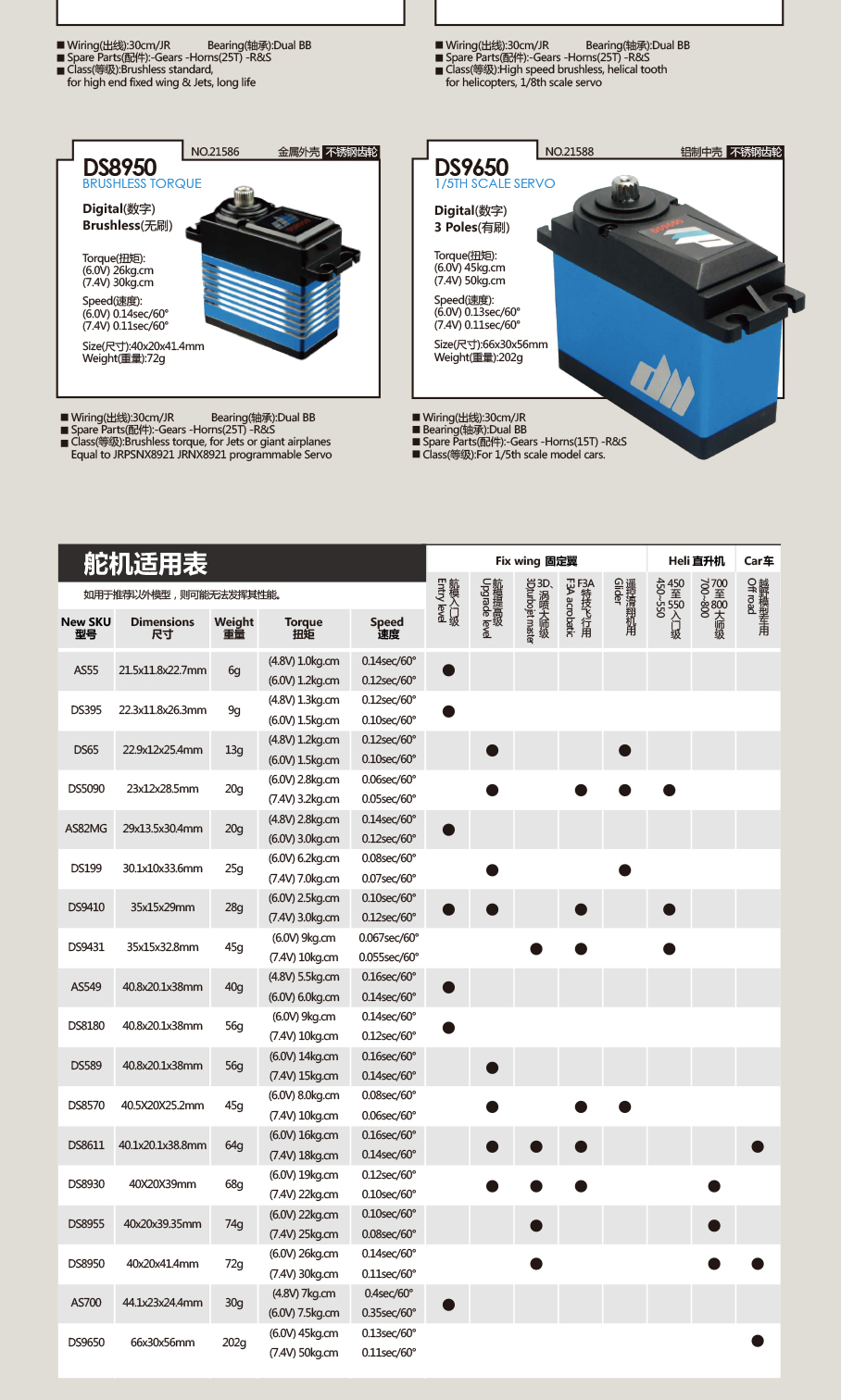

New SKU |
Dimensions/Weight |
Driver type |
Motor |
Class |
|
AS55 |
SIZE：21.5x11.8x22.7mm WEIGHT：6g |
Analog |
Coreless |
Ultra-Micro, equal to HTHS-55 Hitec HS-55 Servo |
|

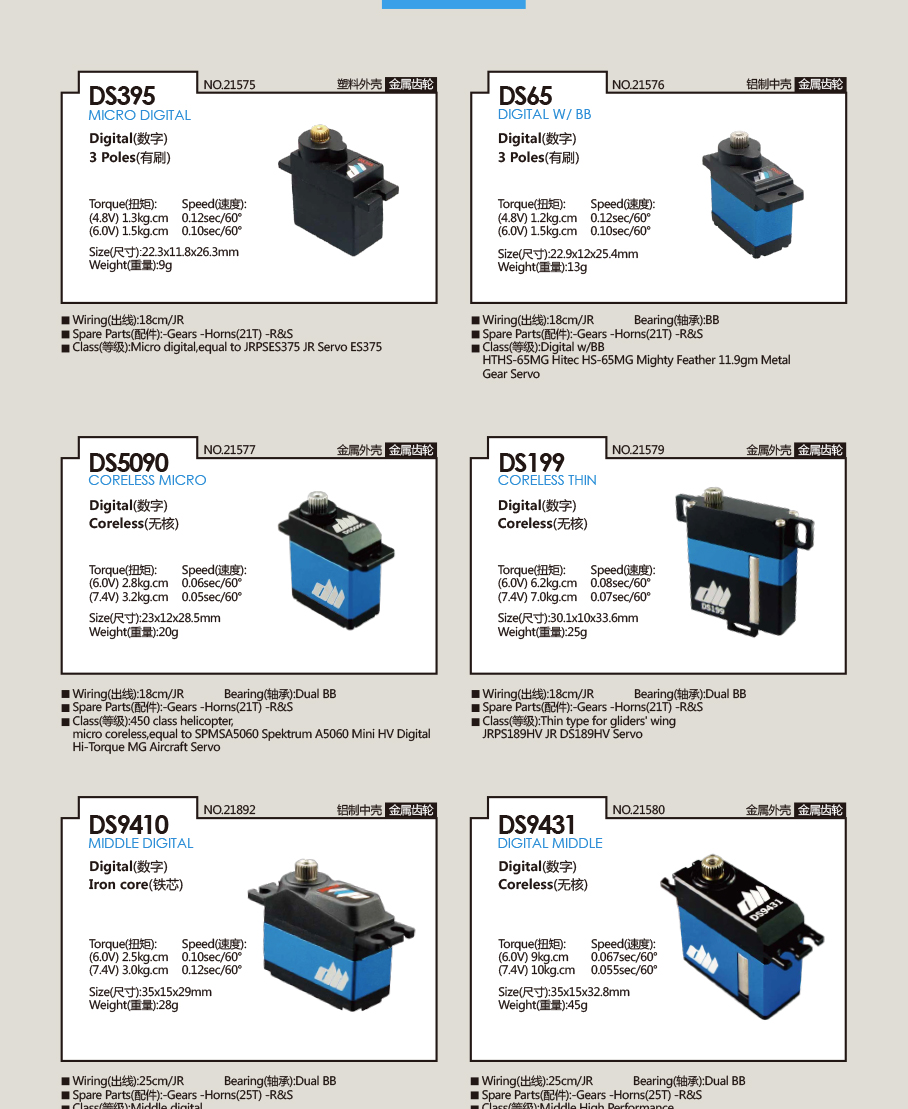

DS395 |
SIZE：22.3x11.8x26.3mm WEIGHT：9g |
Digital |
3 Poles |
Micro digital, equal to JRPSES375 JR Servo ES375 |
|
DS65 |
SIZE：22.9x12x25.4mm WEIGHT：13g |
Digital |
3 Poles |
Digital w/2BB HTHS-65MG Hitec HS-65MG Mighty Feather 11.9gm Metal Gear Servo |
|
DS5090 |
SIZE：23x12x28.5mm WEIGHT：20g |
Digital |
Coreless |
450 class helicopter, micro coreless, equal to SPMSA5060 Spektrum A5060 Mini HV Digital Hi-Torque MG Aircraft Servo |
|
AS82MG |
SIZE：29x13.5x30.4mm WEIGHT：20g |
Analog |
3 Poles |
Small standard, equal to HTHS-82MG Hitec HS-82MG Servo |
|
DS199 |
SIZE：30.1x10x33.6mm WEIGHT：25g |
Digital |
Coreless |
Thin type for gliders' wing JRPS189HV JR DS189HV Servo |
|
DS9431 |
SIZE：35x15x32.8mm WEIGHT：45g |
Digital |
Coreless |
Middle High Performance, designed for 3D Helicopters & airplanes(such as EFRC 70E), also perfect for Sebart Avanti XS which is popular middle size jet. |
|
AS549 |
SIZE：40.8x20.1x38mm WEIGHT：40g |
Analog |
3 Poles |
Air standard, entry level, equal to JRPS539 JR Servo ES539 |
|

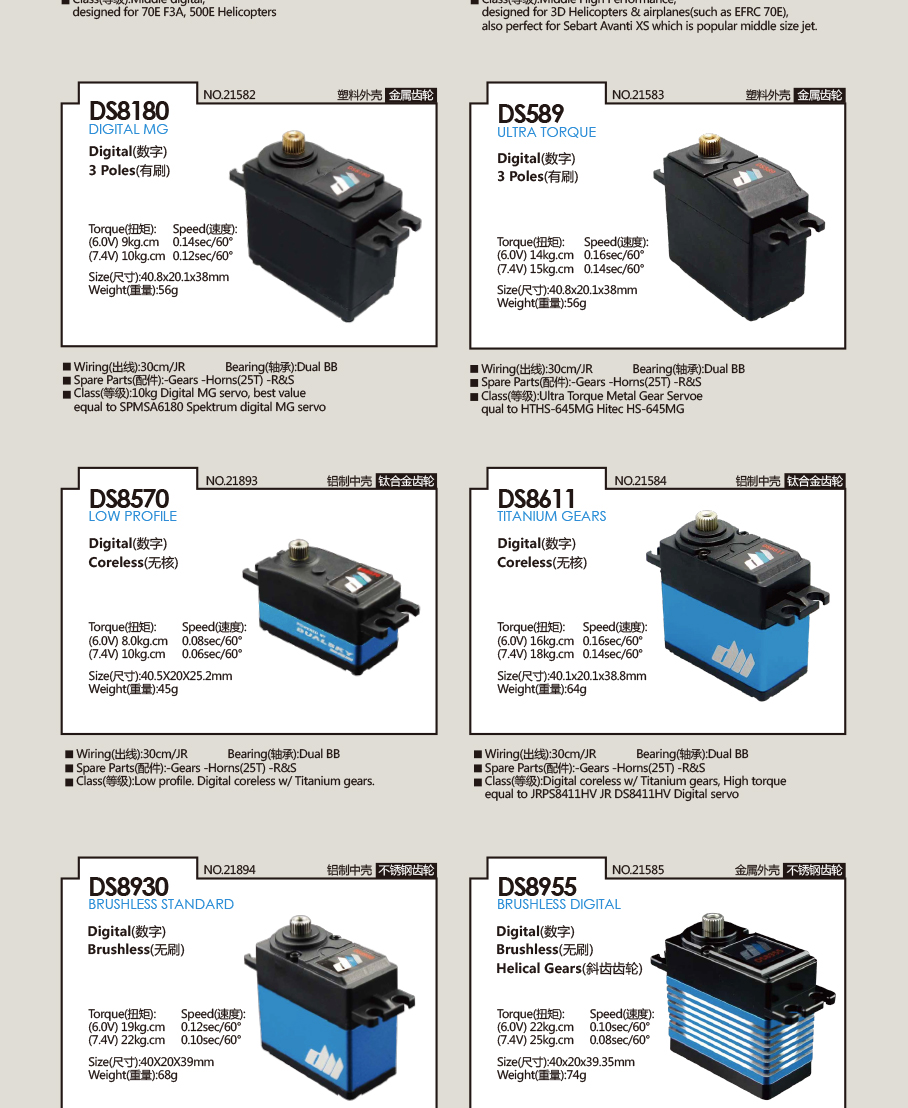

DS8180 |
SIZE：40.8x20.1x38mm WEIGHT：56g |
Digital |
3 Poles |
10kg Digital MG servo, best value equal to SPMSA6180 Spektrum digital MG servo |
|
DS589 |
SIZE：40.8x20.1x38mm WEIGHT：56g |
Digital |
3 Poles |
Ultra Torque Metal Gear Servo equal to HTHS-645MG Hitec HS-645MG |
|
DS8611 |
SIZE：40.1x20.1x38.8mm WEIGHT：64g |
Digital |
Coreless |
Digital coreless w/ Titanium gears, High torque equal to JRPS8411HV JR DS8411HV Digital servo |
|
DS8955 |
SIZE：40x20x39.35mm WEIGHT：74g |
Digital |
Brushless |
High speed brushless, helical tooth for helicopters, 1/8th scale servo |
|
DS8950 |
SIZE：40x20x41.4mm WEIGHT：72g |
Digital |
Brushless |
Brushless torque, for Jets or giant airplanes Equal to JRPSNX8921 JRNX8921 programmable Servo |
|
AS700 |
SIZE：44.1x23x24.4mm WEIGHT：30g |
Analog |
3 Poles |
Retract Servo equal to SPMSA7040 Spektrum A7040 |
|
DS9410 |
SIZE：35x15x29mm WEIGHT：28g |
Digital |
Iron core |
designed for 70E F3A,500E Helicopters |
|
DS8570 |
SIZE：40.5x20x25.2mm WEIGHT：45g |
Digital |
Coreless |
|
|
DS8930 |
SIZE：40x20x39mm WEIGHT：68g |
Digital |
Brushless |
for high end fixed wing & Jets,long life |
|
DS9650 |
SIZE：66x30x56mm WEIGHT：202g |
Digital |
3 Poles |
For 1/5th scale model cars. |
